AP 3-TU
-
Cover profile carrier
5022656
Cover profile carrier for mounting on NS 32 or NS 35/7.5 DIN rail for attaching the cover profile AP 3.2 mm thick
Product details
| Product type | Cover profile carrier |

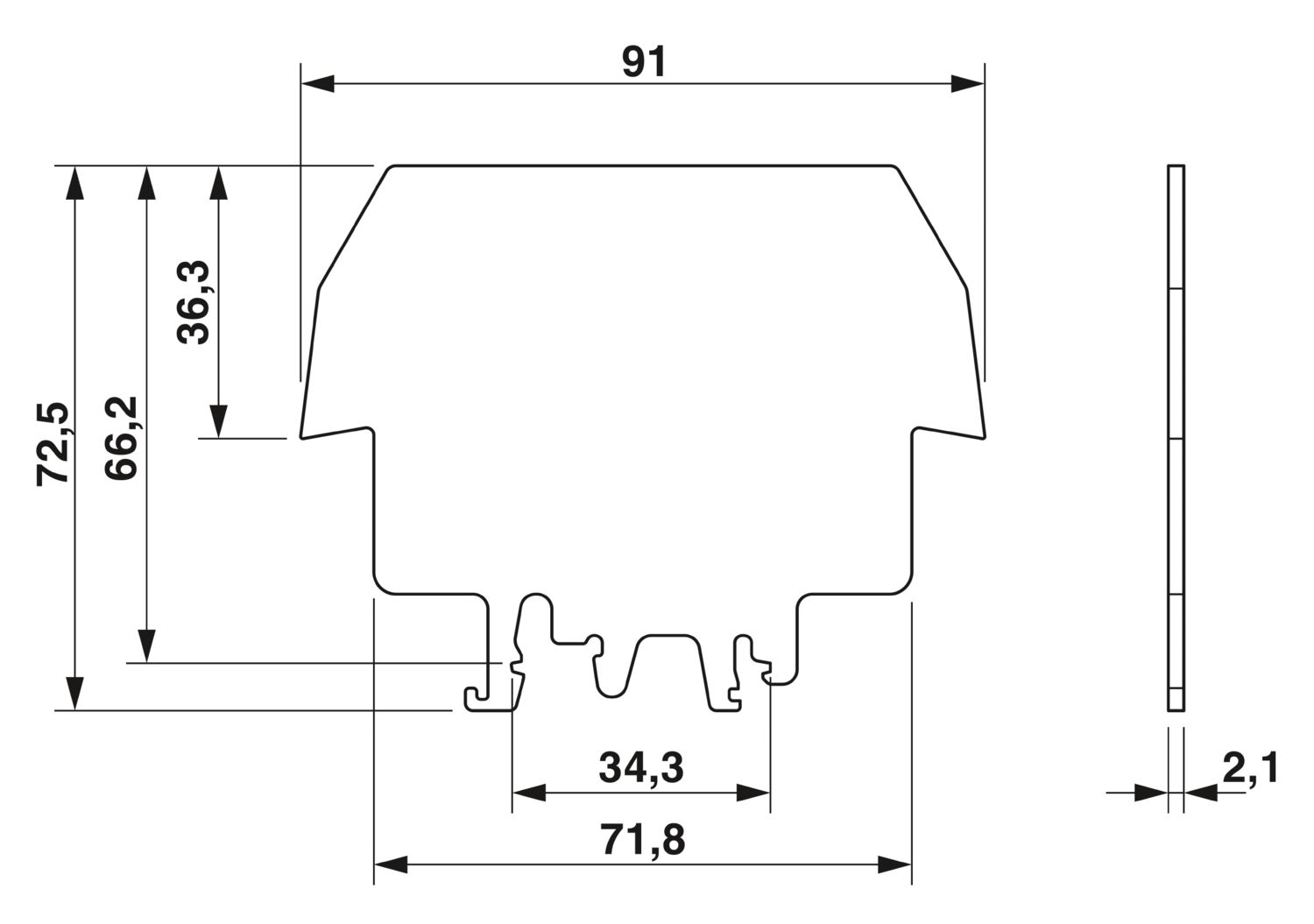

| Dimensional drawing |
|
| Width | 2.1 mm |
| Height | 89 mm |
| Depth | 80 mm |
| Length | 89 mm |
| Material strength | 2.00 mm |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Your advantages
Large-surface labeling with AP-ES insert strips
Cover profiles provide protection against unauthorized actuation of terminal strips
