DC-B 6-SET-WF-M25R-M-7X4-UT
-
Connector set
1602258

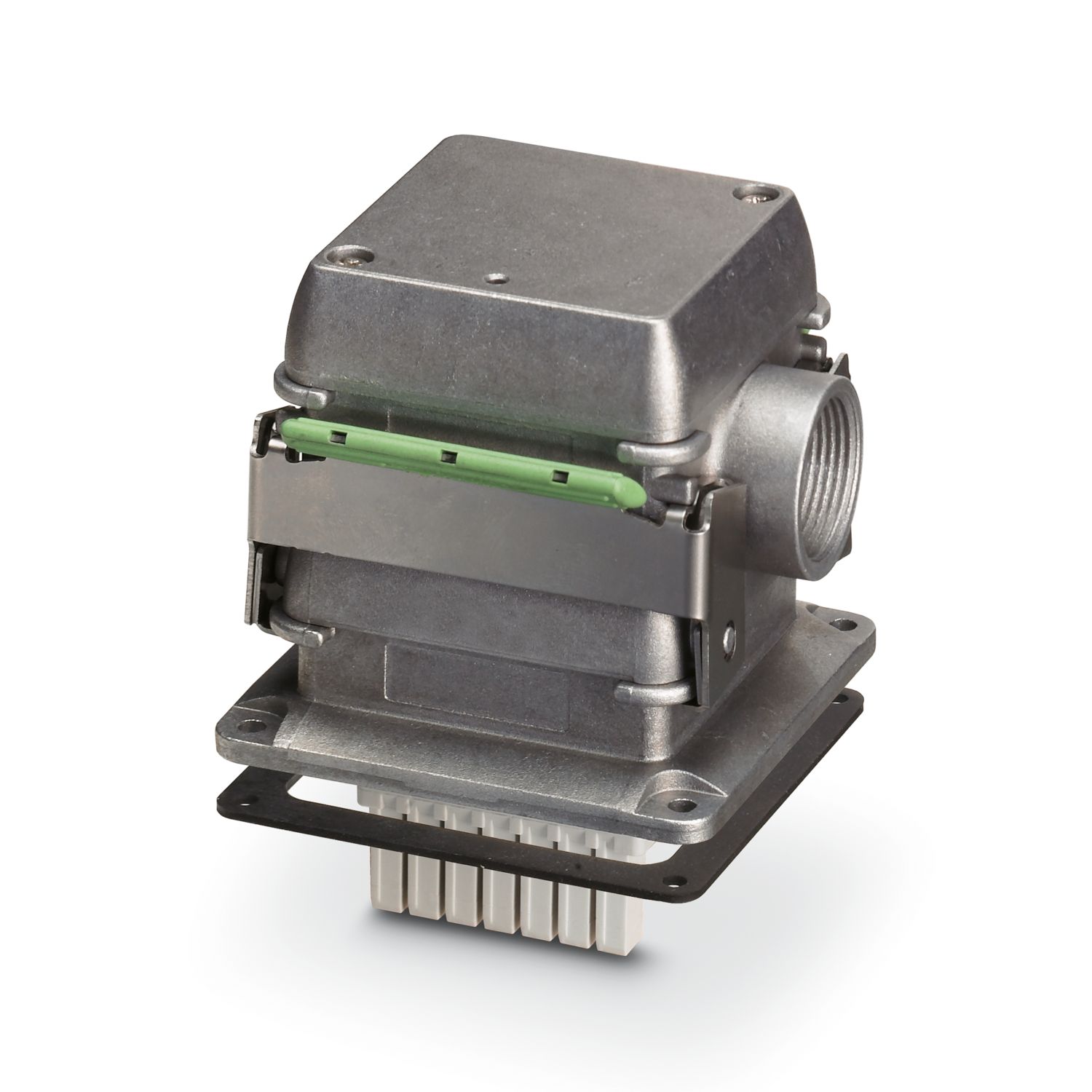

Duplicon, aluminum panel feed-through set with a panel mounting base, with a stackable housing with M25 cable screw connection thread (without cable screw connection), with two contact inserts 6 x 4 mm2 + PE, 400/690 V, 25 A, screw connection and a housing cover, type B6, IP67 protection
Product details
| Product type | Connector set |
| Housing type | Panel feed-through set |
| Type | DC-B6 |
| Number of positions | 6 |
| Set comprises | 1602038 DC-B 6-HB-M |
| No. of cable outlets | 1 |
| Type of the screw connection | with M25 thread |
| Seal present | yes |
| Cable outlet | lateral |
| Pg screw connection | none |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Maximum load current | 32 A (L1/L2/L3) |
| Rated voltage (II/2) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 400 V (L-PE) |
| 690 V (L-L) | |
| 630 V | |
| Rated surge voltage (II/2) | 6 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage | 6 kV |
| Rated current | 25 A (with 4 mm² conductor cross section) |
| 25 A | |
| Contact resistance | 1.5 mΩ |
| Nominal current IN | 25 A |
| Connection method | Screw connection |
| Connection technology | Screw connection |
| Conductor cross section | 0.2 mm² ... 4 mm² (6 mm² without ferrule) |
| 0.2 mm² ... 4 mm² (6 mm² without ferrule) | |
| Connection cross section AWG | 24 ... 12 (AWG 10 without ferrule) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Stripping length of the individual wire | 10 mm |

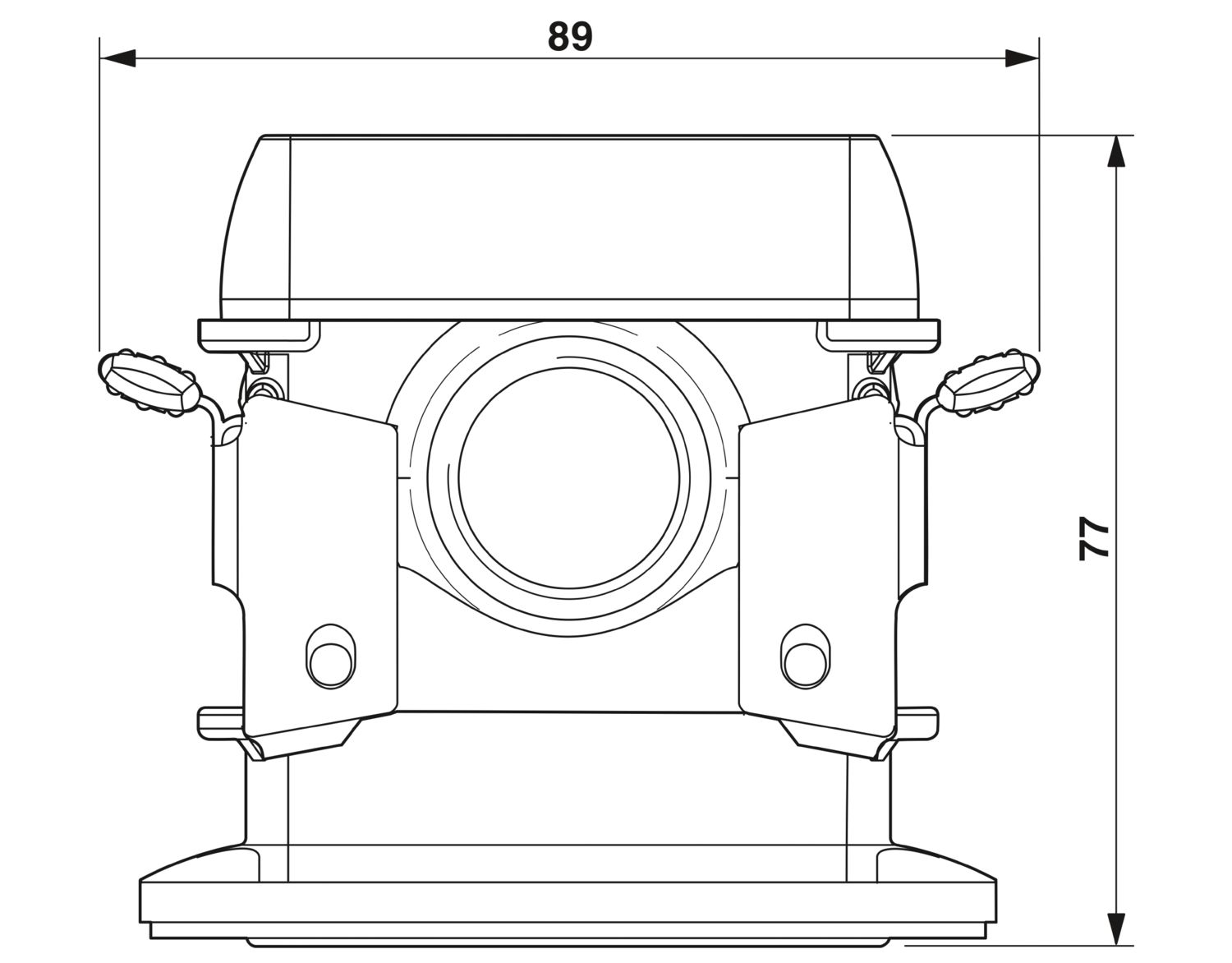

| Dimensional drawing |
|
| Width | 75 mm |
| Height | 77 mm |
| Length | 89 mm |
| Installation dimensions | |
| Width of the assembly cutout | 55 mm |
| Length of the assembly cutout | 55 mm |
| Color | pearl gray |
| Material Housing | Die-cast aluminum |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Locking latch material | Stainless steel |
| Stripping length of the individual wire | 10 mm |
| Mechanical data | |
| Type of the screw connection | with M25 thread |
| Locking type | Latch |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP66 | |
| IP67 | |
| IP65/IP66/IP67 | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Mounting type | Screw mounting |
