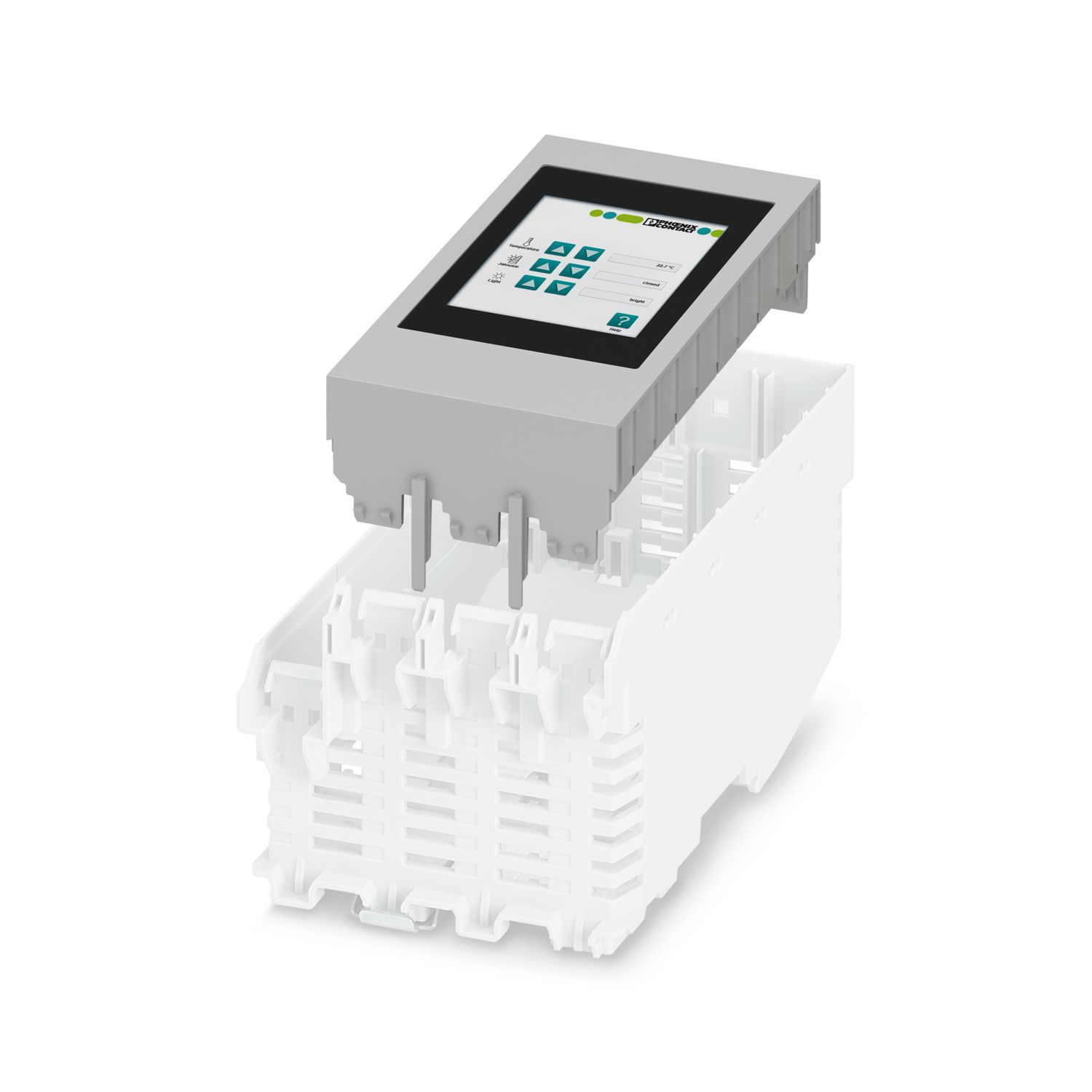

ME-IO 56,4 C 10U D2,4-TRG 7035-VPE1 - Upper housing part with touch display - 1225275

Notes

Assembly note	Please observe the application note in the download area.

Product properties

Product type	Upper housing part
Housing type	DIN rail housing
Housing series	ME-IO
Product family	ME-IO 56,4
Type	10U upper part, integrated 2.4" resistive touch display
Ventilation openings present	no
Display
Display type	Color display TFT
Display type	resistive
Diagonal	(Display)
	2.4 in. / 6.9 cm (Display)
Display formats	4:3
Display lighting type	LED, white
Controller	ST7789V

Interfaces

Interface	4-wire SPI half duplex

Dimensions

Width	56.88 mm
Height	109.8 mm
Depth	29.5 mm
PCB design
PCB thickness	1.4 mm ... 1.8 mm

Material specifications

Color (Housing)	light gray (RAL 7035)
Flammability rating according to UL 94	V0
CTI according to IEC 60112	600
Housing material	PA
Surface characteristics	untreated

Environmental and real-life conditions

Vibration test
Specification	IEC 60068-2-6:2007-12
Result	Test passed
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	20 m/s²
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Shocks
Specification	IEC 60068-2-27:2008-02
Result	Test passed
Acceleration	150 m/s²
Shock duration	11 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Test for substances that would hinder coating with paint or varnish
Specification	VDMA 24364:2018-05
Result	Test passed
Ambient conditions
Max. IP code to attain	IP20
Ambient temperature (operation)	-20 °C ... 70 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-20 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 70 °C
Relative humidity (storage/transport)	80 %

PCB data

Thickness of the PCB	1.4 mm ... 1.8 mm

Mounting

Mounting type	Snap in

Packaging specifications

Type of packaging	packed in cardboard
Outer packaging type	Carton

Item number	1225275
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	ACHEBI
GTIN	4063151316686
Weight per piece (including packing)	63.3 g
Weight per piece (excluding packing)	43.98 g
Customs tariff number	85480090
Country of origin	CN

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
