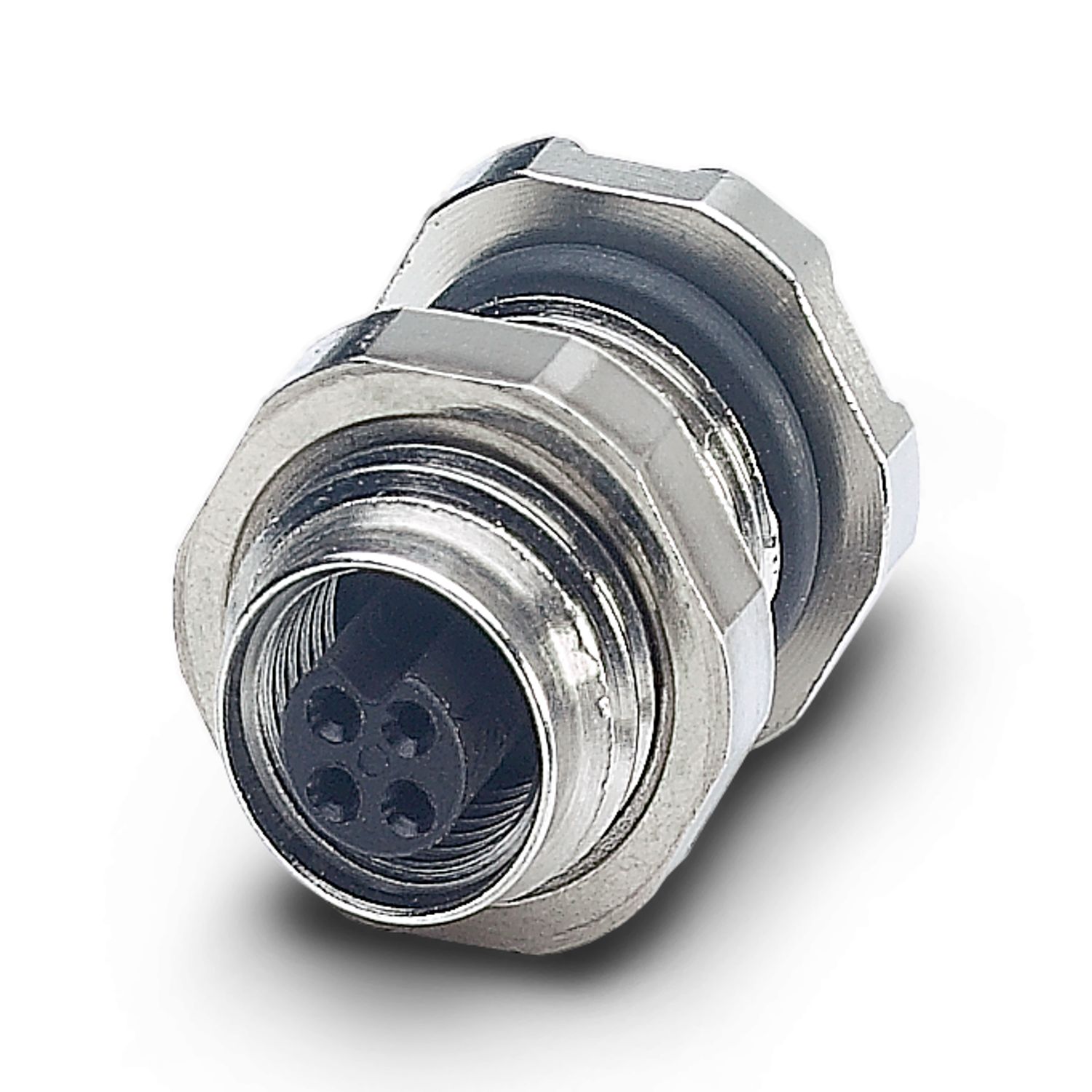

SACC-DSI-M5FS-4CON-L180 - Device connector rear mounting

SACC-DSI-M5FS-4CON-L180 - Device connector rear mounting

1530650

Device connector rear mounting, 4-position, Socket, straight, M5, A-coding, Wave soldering

Product details

Expand all Collapse all

Product description

Flush-type connector
Rear mounting, one-piece, for wave soldering processes, 180°

Technical data

Mounting

Mounting type	Rear mounting (M7, with locking nut)

Product properties

Product type	Circular connectors (device side)
Number of positions	4
Shielded	no
Coding	A
Thread type	M5
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Seal material	Viton
Contact material	CuSn
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Brass, nickel-plated

Electrical properties

Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	60 V
Nominal current I_N	1 A
Test voltage	800 V

Connection data

Conductor connection
Connection method	Wave soldering
Contact connection type	Socket

Connector

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M5
Coding	A

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 85 °C

Standards and regulations

Standard designation	M5 connector
Standards/specifications	according to IEC 61076-2-105

Commercial data

Item number	1530650
Packing unit	20 pc
Minimum order quantity	20 pc
Sales key	ABQ
Product key	ABQNBA
GTIN	4046356024457
Weight per piece (including packing)	4.27 g
Weight per piece (excluding packing)	4.27 g
Customs tariff number	85366990
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0	27440110
ECLASS-15.0	27440110

ETIM

ETIM 9.0

EC003568

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	0a169132-925a-4d8f-9ecd-9223dd45410d

Compatible products

Expand all Collapse all

Accessories

SACC-E-MU-M 5 - Flat nut 1535901

Your advantages

Easy PCB assembly: one-piece connectors for wave soldering
