HC-B-GTRS-M25-PLRBK
-
Cable gland
1414652
Set consisting of: EVO plastic adapter 1414244 and plastic screw connection with terminal block 1415190, M25
Product details
| Product type | Cable screw gland |
| No. of conductors | 1 |
| Type of the screw connection | M25 |
| Type | with external strain relief |
| Shielded | no |
| Execution of the strain relief | A |

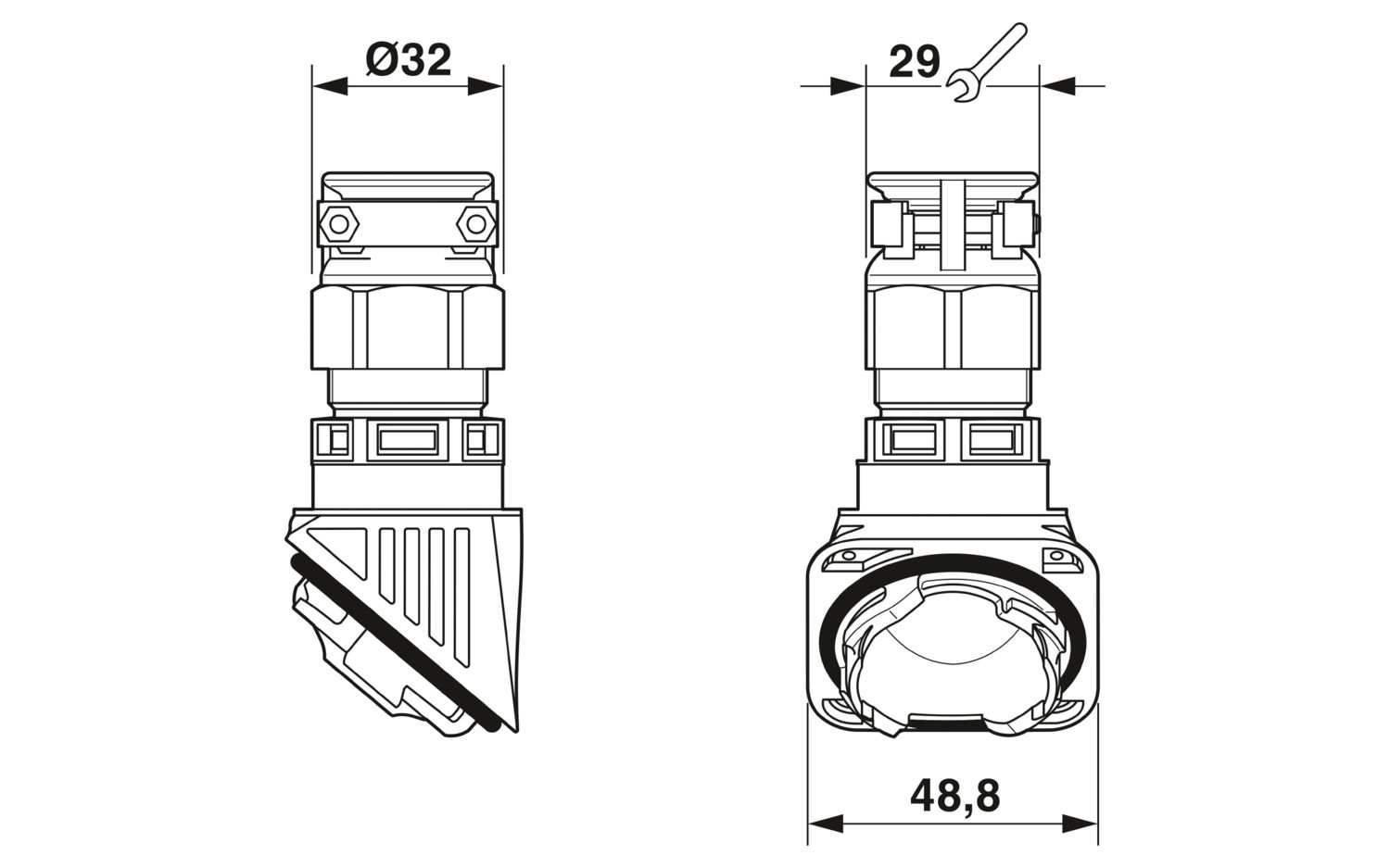

| Dimensional drawing |
|
| Wrench size, union nut | 29 mm |
| Wrench size, support | 29 mm |
| Thread pitch | 1.5 mm |
| Color | black (RAL 9005) |
| Seal material | EPDM |
| Seal material O-ring | NBR |
| Housing material | PA |
| Material for screw connection | PA |
| External cable diameter Cable 1 | 9 mm ... 17 mm |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
