BL2 BPC 2100 - Box PC

1105773

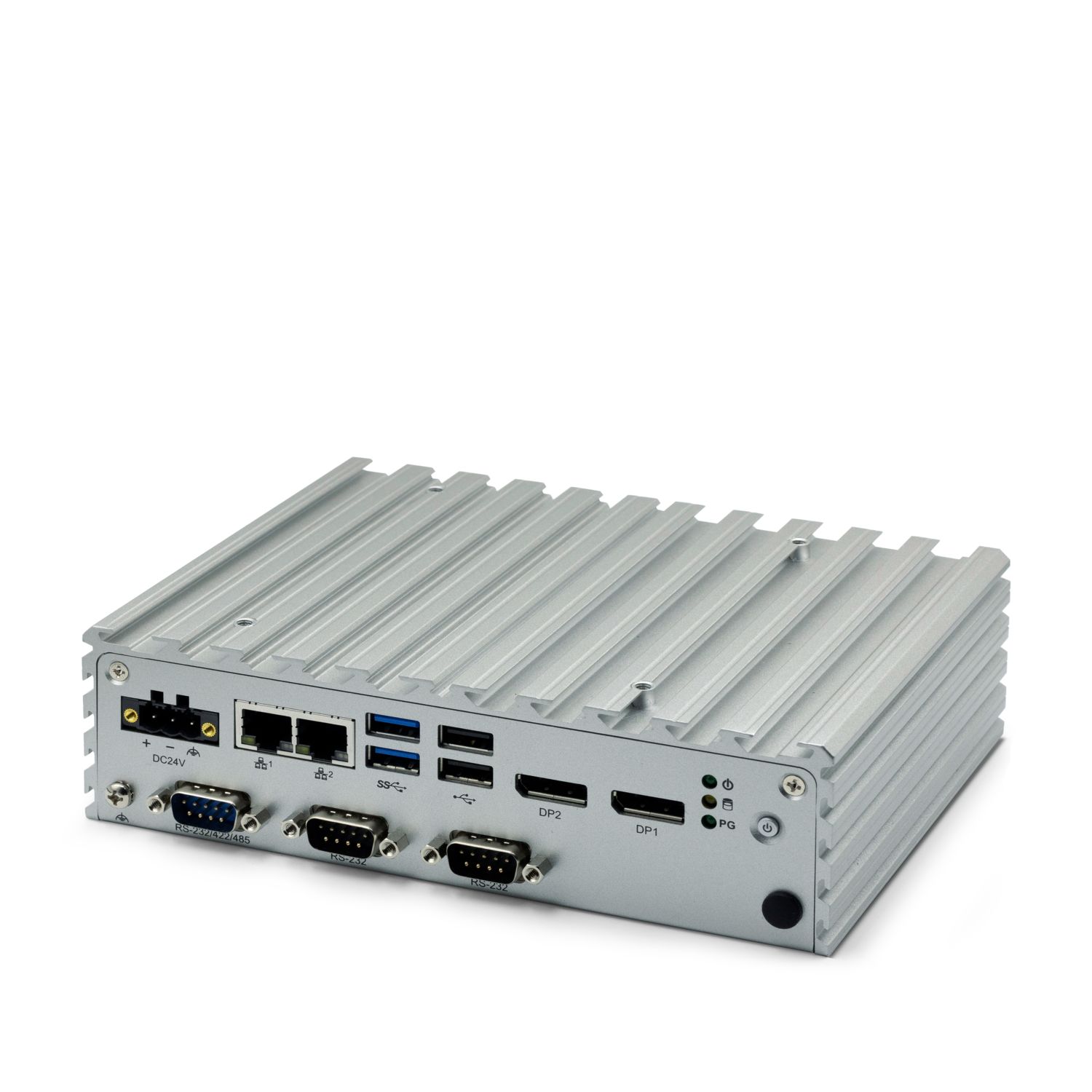

IP20-rated fanless industrial box PC (BPC) with energy-efficient Intel® Pentium® quad-core processor with 4 GB of RAM and M.2 mass storage.

Free download available. Downloads

Product details

Technical data

Notes

Note on application
Note on application	Only for industrial use

Product properties

Product type	Box PC
Computer data
Processor	Intel® Pentium® N4200 1.1/2.5 GHz
Operating system	Windows® 10 IoT Enterprise LTSC 2019 (64-bit), Multi-language
RAM	4 GB DDR3
Data storage system	M.2 SSD
Cooling	passive

System properties

User software	without user software
	Visu+

Electrical properties

Service life of battery	5 years (typical)
Supply
Power supply unit	24 V DC ±20 %
Real-time clock
Realtime clock	Yes (battery-backed)

Interfaces

Interfaces	1x COM (RS-232/422/485)
	2x COM (RS-232)
	2x USB 2.0
	2x USB 3.0
Monitor output	2x DisplayPort
Network	2x Ethernet (10/100/1000 Mbps), RJ45
LAN chipset	Intel® I210-AT

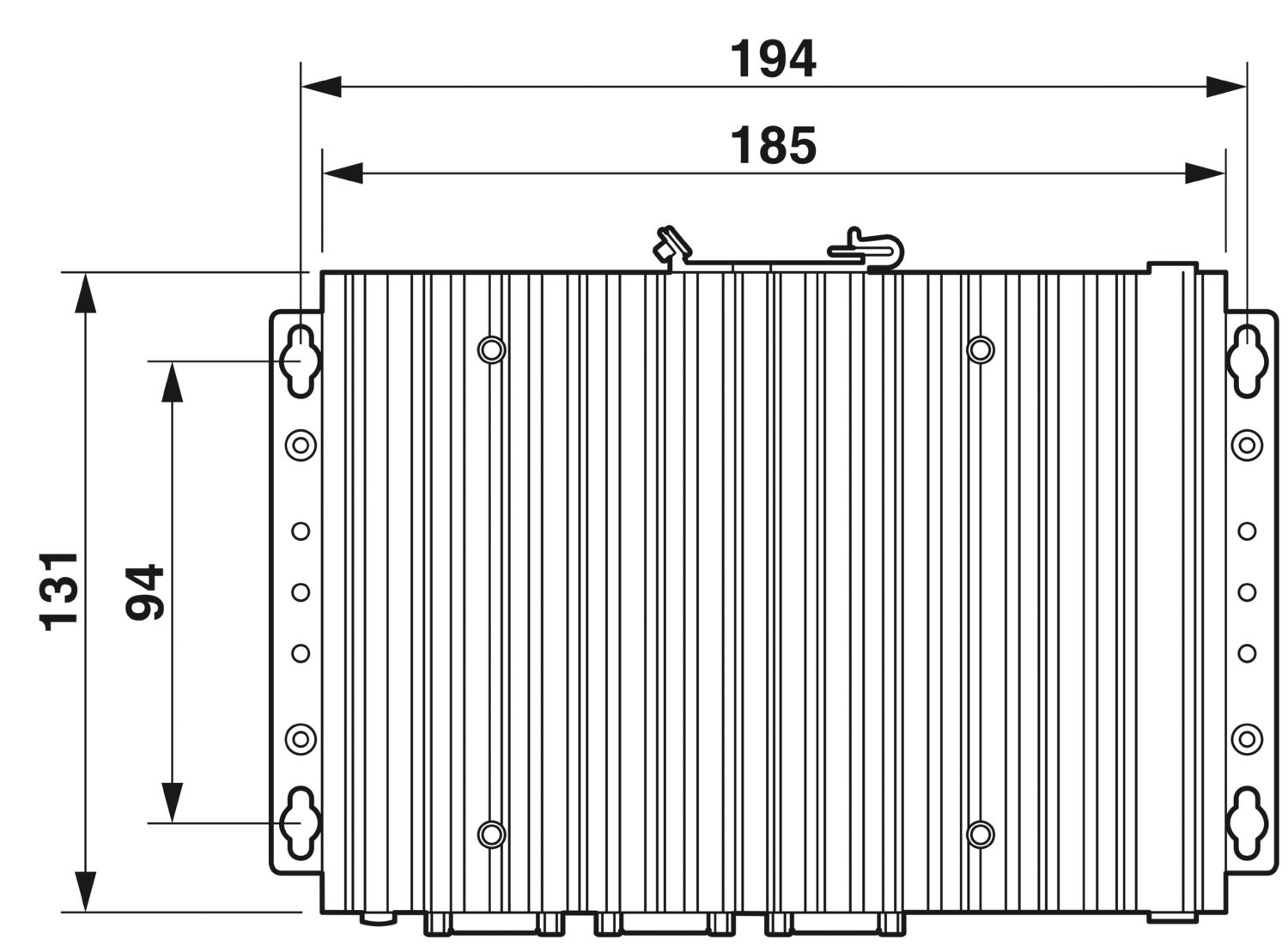

Dimensions

External dimensions
Width / Height / Depth	185 mm / 131 mm / 54 mm
Installation dimensions
Width / Height / Installation depth	194 mm / 94 mm /

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 75 °C
Permissible humidity (operation)	10 % ... 90 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 90 % (non-condensing)
Shock	20g, 11 ms in accordance with IEC 60068-2-27
Vibration (operation)	2g_rms @ sine, 5~500 Hz, 1 h/axis (panel mounting; SSD operating) according to EN 60068-2-6 0.5g_rms @ sine, 5~500 Hz, 1 h/axis (panel mounting; HDD operating) according to EN 60068-2-6

Mounting

Mounting type	Panel mounting
	DIN rail mounting

Commercial data

Item number	1105773
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DRB
Product key	DRBABA
Weight per piece (including packing)	1,736 g
Weight per piece (excluding packing)	1,659 g
Customs tariff number	84715000
Country of origin	TW

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(a), 6(a)-I, 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-10 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	1-Methyl-2-pyrrolidone (NMP) (CAS: 872-50-4)
		Lead (CAS: 7439-92-1)
		2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (CAS: 71868-10-5)
