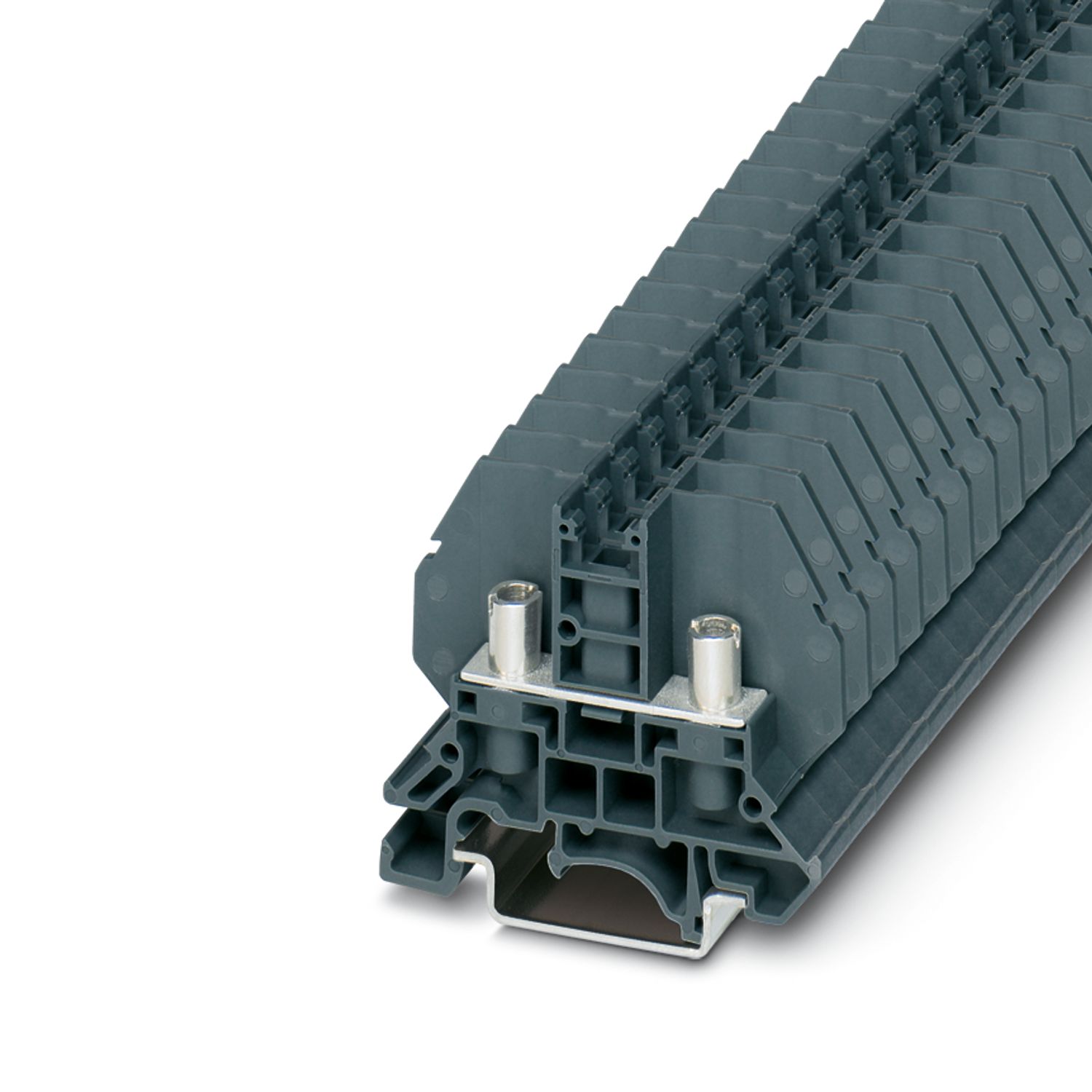

RSC 5 SP/SP E - Bolt connection terminal block

3000892

Bolt connection terminal block, with reduced-size connection screw, nom. voltage: 800 V, nominal current: 57 A, number of connections: 2, connection method: Bolt connection, Rated cross section: 10 mm², 1 level, mounting type: NS 35/7,5, NS 35/15, NS 32, color: dark gray

Product details

Product type	Bolt connection terminal block
Pitch	13 mm
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV

Number of connections per level	2
Nominal cross section	10 mm²
1 level
Connection method	Bolt connection
Stripping length	The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard	IEC 60947-7-1
Nominal cross section	10 mm²
Nominal current	57 A
Maximum load current	57 A (with 10 mm² conductor cross-section)
Nominal voltage	800 V
Note	Checked at 1100 V
Cable lug connection DIN 46234:1980-03
Connection in acc. with standard	DIN 46234:1980-03
Cross section	0.1 mm² ... 10 mm²
Cross section range AWG	26 ... 8 (converted acc. to IEC)
Hole diameter	5.3 mm
Width	11 mm
Bolt diameter	5 mm
Screw thread	M5
Tightening torque	2 ... 2.2 Nm
Connection in acc. with standard	DIN 46237:1970-07
Cross section	0.5 mm² ... 6 mm²
Cross section range AWG	20 ... 10 (converted acc. to IEC)
Hole diameter	5.3 mm
Width	10 mm
Bolt diameter	5 mm
Screw thread	M5
Tightening torque	2 ... 2.2 Nm
Identification color of ring cable lugs : red	1 mm²
Identification color of ring cable lugs : blue	2.5 mm²
Identification color of ring cable lugs : yellow	6 mm²

Width	13 mm
End cover width	2.2 mm
Pitch	13 mm

Color	dark gray
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 10 mm²	1.2 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	5 N
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	1.857 (m/s²)²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15
	NS 32

Commercial data

Item number	3000892
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE1
Product key	BEK511
GTIN	4046356856874
Weight per piece (including packing)	99.99 g
Weight per piece (excluding packing)	99.99 g
Country of origin	IN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N
B
	600 V	45 A
C
	600 V	45 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Compact screw connection of ring and fork-type cable lugs

Screw nuts and current bars are latched in the insulating housing and cannot be removed

Cover profile that can be snapped directly onto the terminal blocks provides touch-proof protection

The isolator bridge bar supports switchable cross connections; the bridge screw therefore has the function of a live contact

Bridge shaft for potential distribution using standard screw bridges

ECLASS-13.0	27250190
ECLASS-15.0	27250190

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
