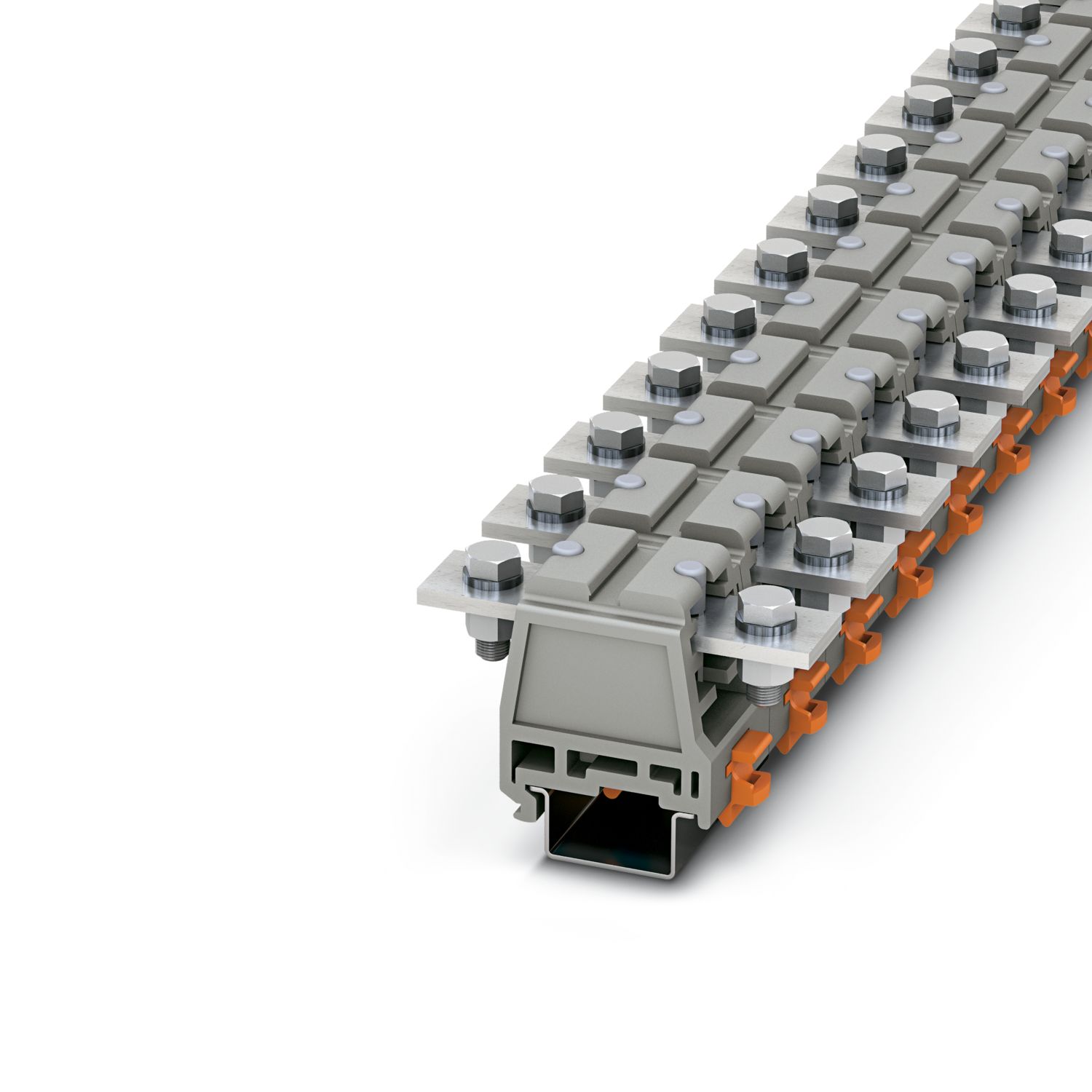

RBO 6/WA50 - High-current connector

2130212

High-current connector with bolt connection, screw thread: M6, load current max.: 125 A, connection cross section up to 35 mm² copper and 50 mm² aluminum

Product details

General
Note	The rated insulation voltage applies to insulated cable lugs acc. to DIN 46237:1970-07 and for uninsulated cable lugs acc. to DIN 46234:1980-03 with path extension.

Product type	Bolt connection terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV

Nominal cross section	35 mm²
Stripping length	The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard	IEC 60947-7-1
Nominal current	125 A
Maximum load current	125 A (with 35 mm² conductor cross section)
Nominal voltage	1000 V
Nominal cross section	35 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standard	DIN 46234:1980-03
Cross section	10 mm² ... 35 mm²
Cross section range AWG	8 ... 2 (converted acc. to IEC)
Hole diameter	6.5 mm
Width	15 mm
Bolt diameter	6 mm
Screw thread	M6
Tightening torque	6 ... 8 Nm
Connection in acc. with standard	DIN 46235:1983-07
Cross section	16 mm² ... 25 mm²
Cross section range AWG	6 ... 4 (converted acc. to IEC)
Hole diameter	6.5 mm
Width	14 mm
Bolt diameter	6 mm
Screw thread	M6
Tightening torque	6 ... 8 Nm
Identification color of ring cable lugs : blue	2.5 mm²
Identification color of ring cable lugs : yellow	6 mm²

Width	37 mm

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
	Test passed
Short-time withstand current 12.5 mm²	4.2 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2.2 kV
Result	Test passed

Mechanical data
Open side panel	No

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	10 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	35 mm² / 6.8 kg
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Pulse shape	Half-sine
Acceleration	30 m/s²
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/15

Commercial data

Item number	2130212
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	BE4
Product key	BE4412
GTIN	4055626016030
Weight per piece (including packing)	99.99 g
Weight per piece (excluding packing)	99.99 g
Country of origin	IN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	115 A	- 2
Use group C
	600 V	115 A	- 2

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
