PSD-S ME BR-BM/HCR
-

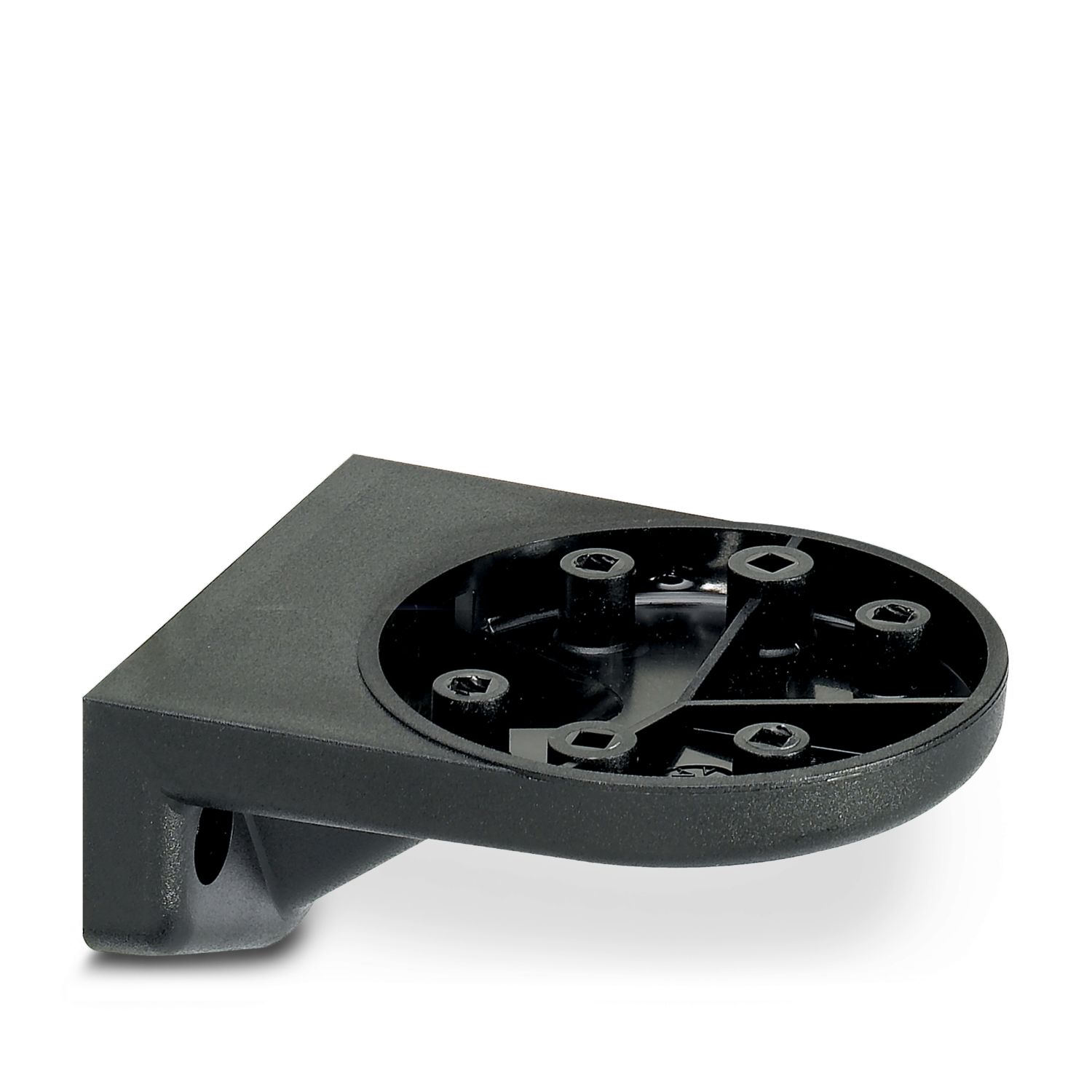

Mounting bracket
2700149
Angle for base mounting, concealed cable routing, black
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Assembly element |
| Product family | PSD-S |
| Scope of supply | 4 x plastic screw 2 x seal |
| 4 x plastic screw 2 x seal |

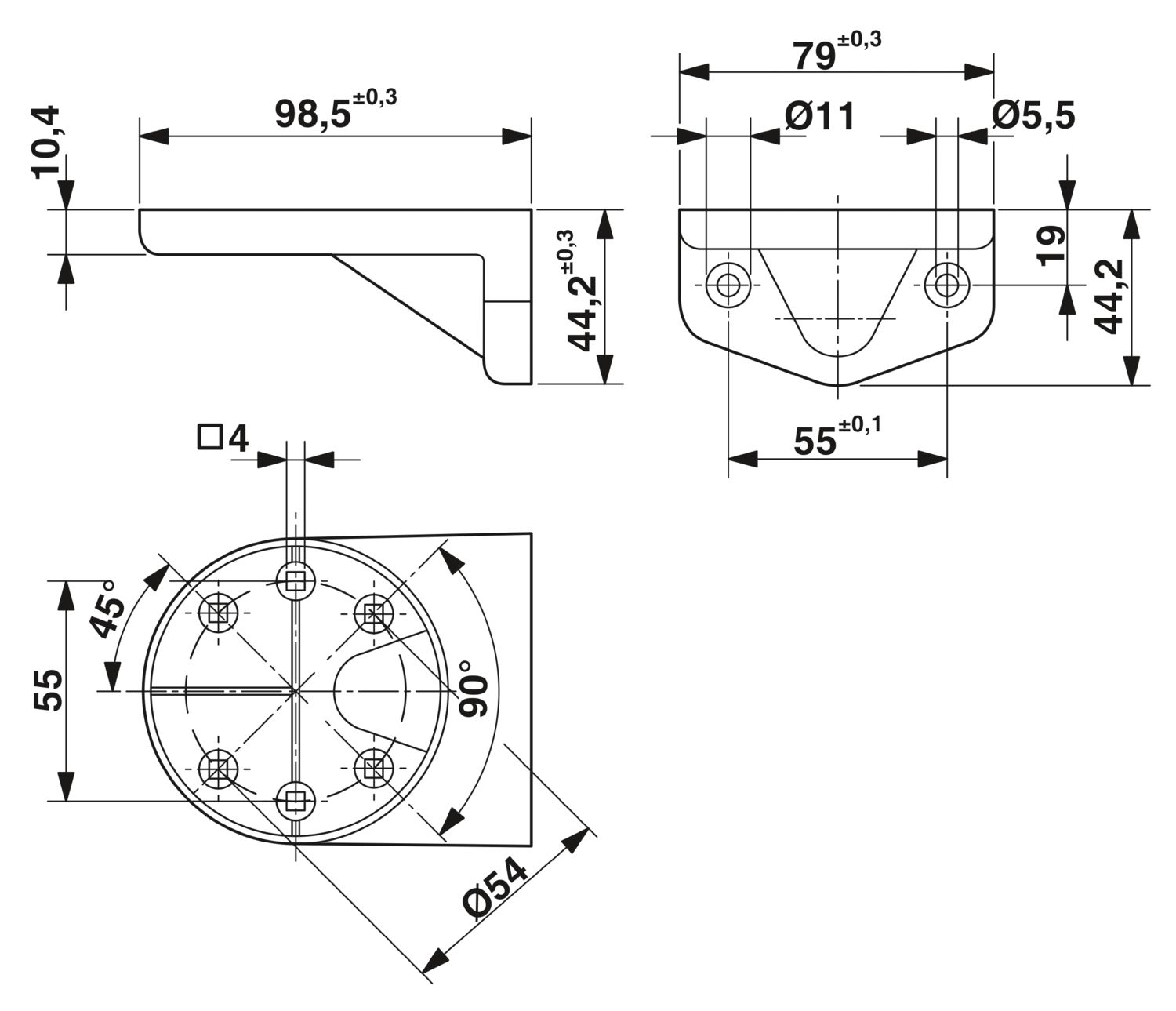

| Dimensional drawing |
|
| Width | 44.2 mm |
| Height | 98.5 mm |
| Diameter | 79 mm |
| Color | black |
| Material | ABS-PC |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Mounting type | Base mounting, concealed cable routing |
| Tube mounting | |
| Assembly note | Seal is supplied with |
| Mounting position | any |
