HC-B32-HCWD-PLR-BK
-
Protective cover
1346555
Protective cover B32, with double locking latch, protective cover material: PC, height: 26.4 mm, seal: yes
Product details
| General | Protective cover for sleeve housings for double locking latch |
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B32 |
| Retaining cord present | yes |
| Seal present | yes |

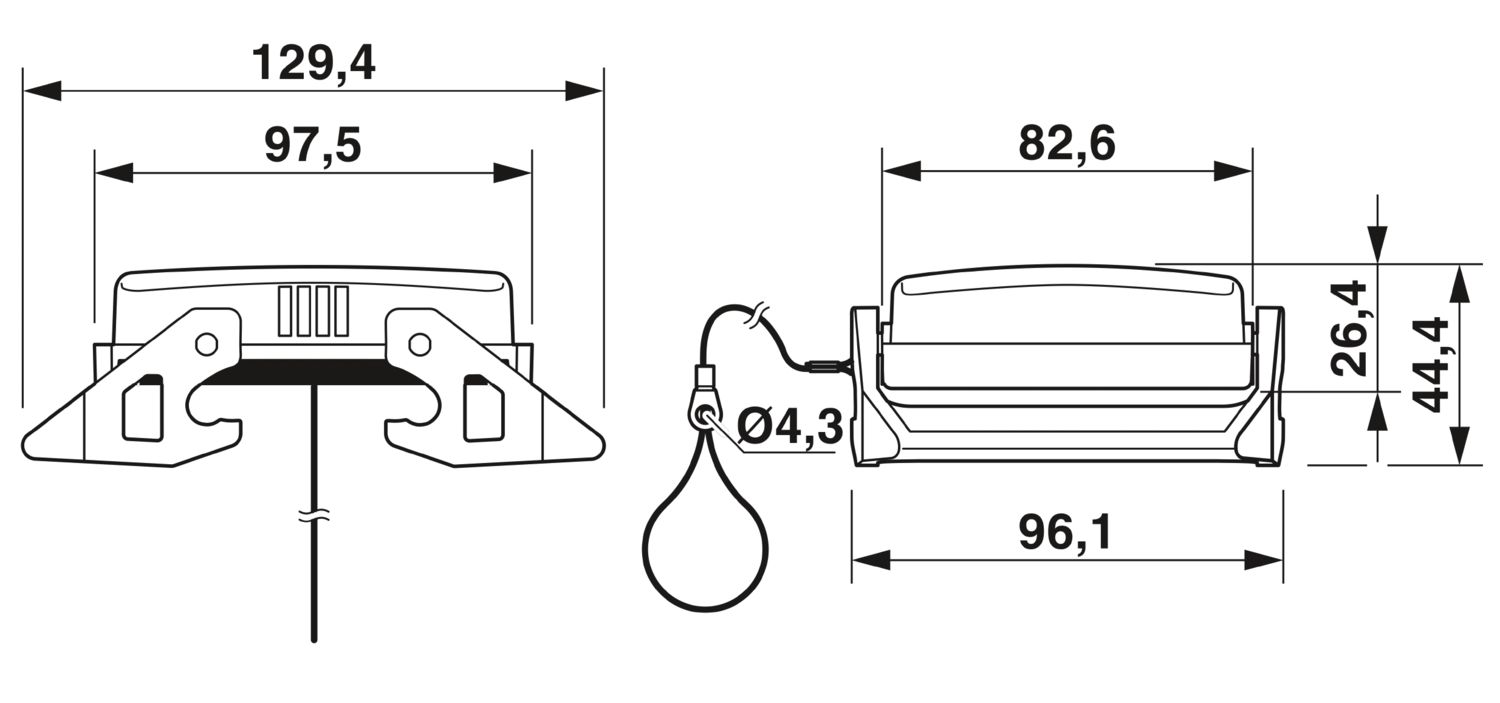

| Dimensional drawing |
|
| Width | 96.1 mm |
| Height | 26.4 mm |
| Length | 97.5 mm |
| Diameter | 26 mm |
| Material Protective cover | PC |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material, protective cover | PC |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Resistance to UV radiation | yes |
| Assembly note | Double eyelet for mounting on a cable / below screw head |
| Plastic protective cover for short-term protection |
