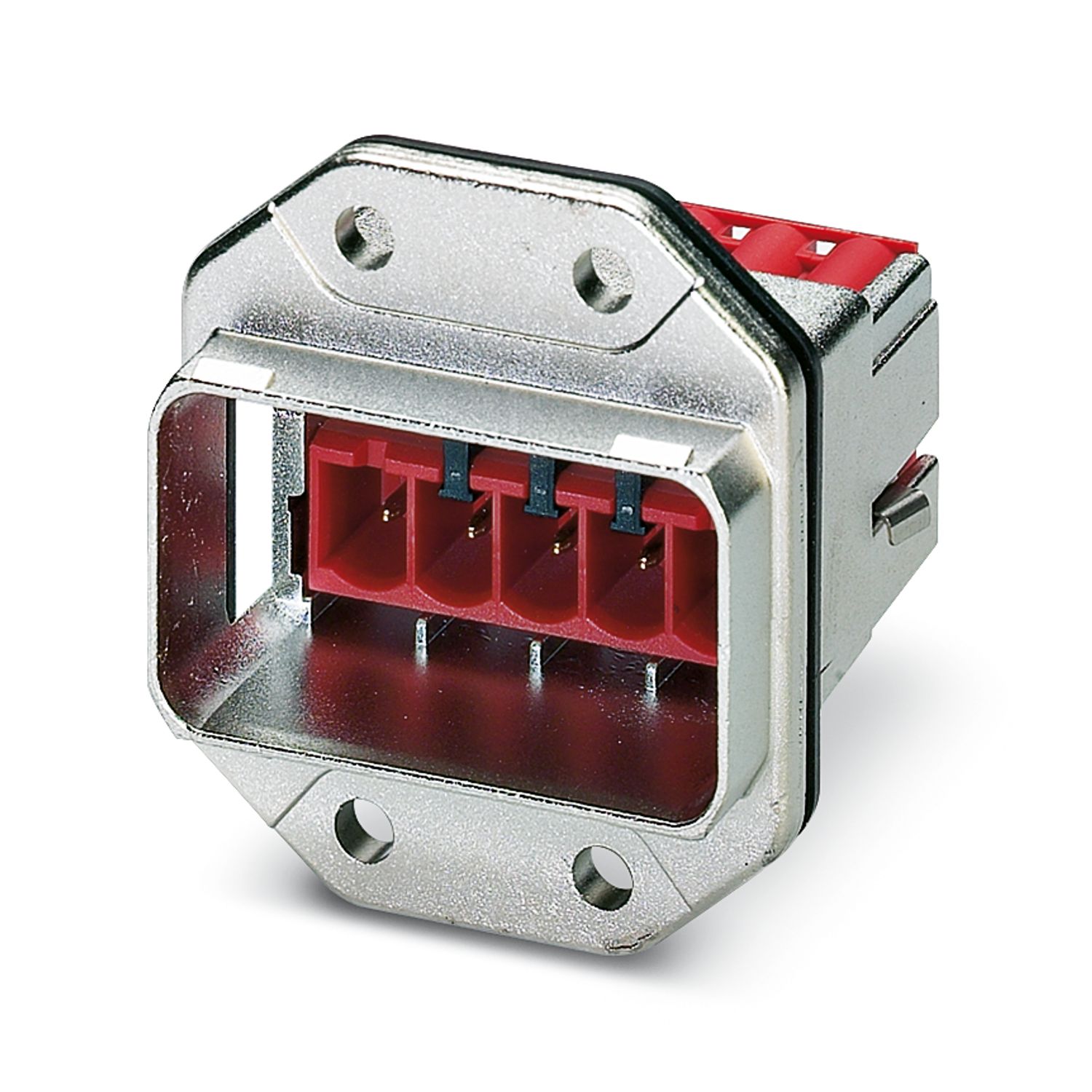

VS-PPC-F2-MSTB-MNNA-1R-SPSB5
-
Panel-mount frame
1608252
MSTB panel mounting frame, IP67, for push-pull interlocking, metal, with integrated contact insert for conductor connection, spring-cage connection, 400 V, for square mounting cutout, with seal, without mounting screws
Product details
| Product type | Panel-mount frame |
| Application | Freenet |
| Type | SCRJ |
| Number of positions | 5 |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 400 V |
| Rated current | 16 A (at 20 °C) |
| Connection technology | |
| Connection method | Spring-cage connection |
| Dimensional drawing |
|
| Width | 36.2 mm |
| Height | 42 mm |
| Length | 41.9 mm |
| Color | silver |
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Seal material | NBR |
| Housing material | Plastic |
| Housing surface material | nickel-plated |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Mounting type | Front mounting |
