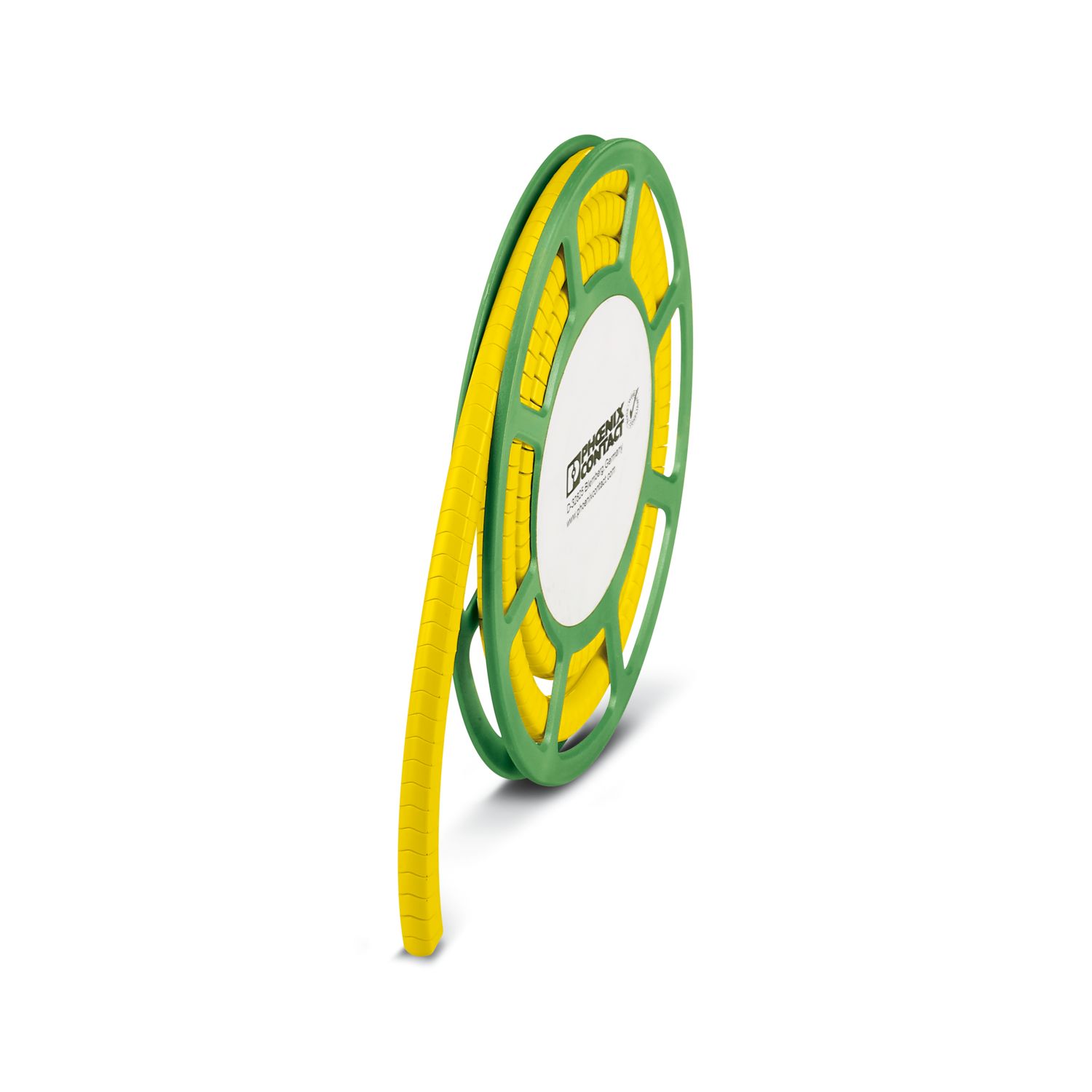

Wire marking tag, yellow, cable diameter range: 4 ... 10 mm: Numbers, mounting type: thread on, the dimensions of the replacement product differ from the previous product!
Product details
Product type
Labeled conductor marker
Type
Profile
Marking
Printing
Numbers
Mounting type
thread on
Color
yellow
Material
Polyvinyl chloride
Flammability rating according to UL 94
V0
Components
Free from silicone and cadmium
Test for substances that would hinder coating with paint or varnish
Result
Test passed
Scratch test for the determining scratch resistance
Specification
DIN EN ISO 1518-1:2019-10 (following)
Requirements
≥ 5 N
Result
Test passed
Tesafilm test
Specification
DIN EN ISO 2409:2013 (following)
Result
Test passed
UV resistance
Specification
ISO 4892-2:2013-03 (following)
Result
Test passed
Test duration
96 h
Specification
IEC 60068-2-2:2007-07
Result
Test passed
Procedure
Test Bb
Duration
96 h
Temperature for testing
105 °C
Temperature resistance
Specification
ANSI/UL 969-2018:03 (following)
Test duration
240 h
Rating 80 °C (105 °C)
Test passed
Wipe resistance of inscriptions
Specification
DIN EN 61010-1 (VDE 0411-01):2020-03
DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]
Test passed
n-Hexane [CAS No. 110-54-3]
Test passed
Water + Petroleum ether [CAS No. 64742-82-1]
Test passed
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]
Test passed
Ethanol (99 %) [CAS No. 64-17-5]
Test passed
Specification
ISO 175:2010 (following)
Test duration
168 h
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]
Test passed
Ethanol (99 %) [CAS No. 64-17-5]
Test passed
Diesel [CAS No. 68476-34-6]
Test passed
IRM 901
Test passed
IRM 902
Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification
DIN 50018:2013-05
Result
Test passed
Climate level
AHT 1.0 S
Cycles
2
Salt spray test
Specification
DIN EN 60068-2-11:2000-02
Result
Test passed
Test duration
96 h
Ambient conditions
Ambient temperature (operation)
-30 °C ... 60 °C
Recommended ambient temperature (storage/transport)
23 °C
Recommended humidity (storage/transport)
50 % (Storage in a dry and dark place in the original packaging is recommended)
Shelf life
1 Year
Width
4.2 mm
Height
9.5 mm
Length
6.6 mm
External dimensions
Outside diameter
4 mm ... 10 mm
Wipe resistance
DIN EN 61010-1 (VDE 0411-1)
General
Please specify the required marking with order: Minimum order per imprint: 1 packing unit
