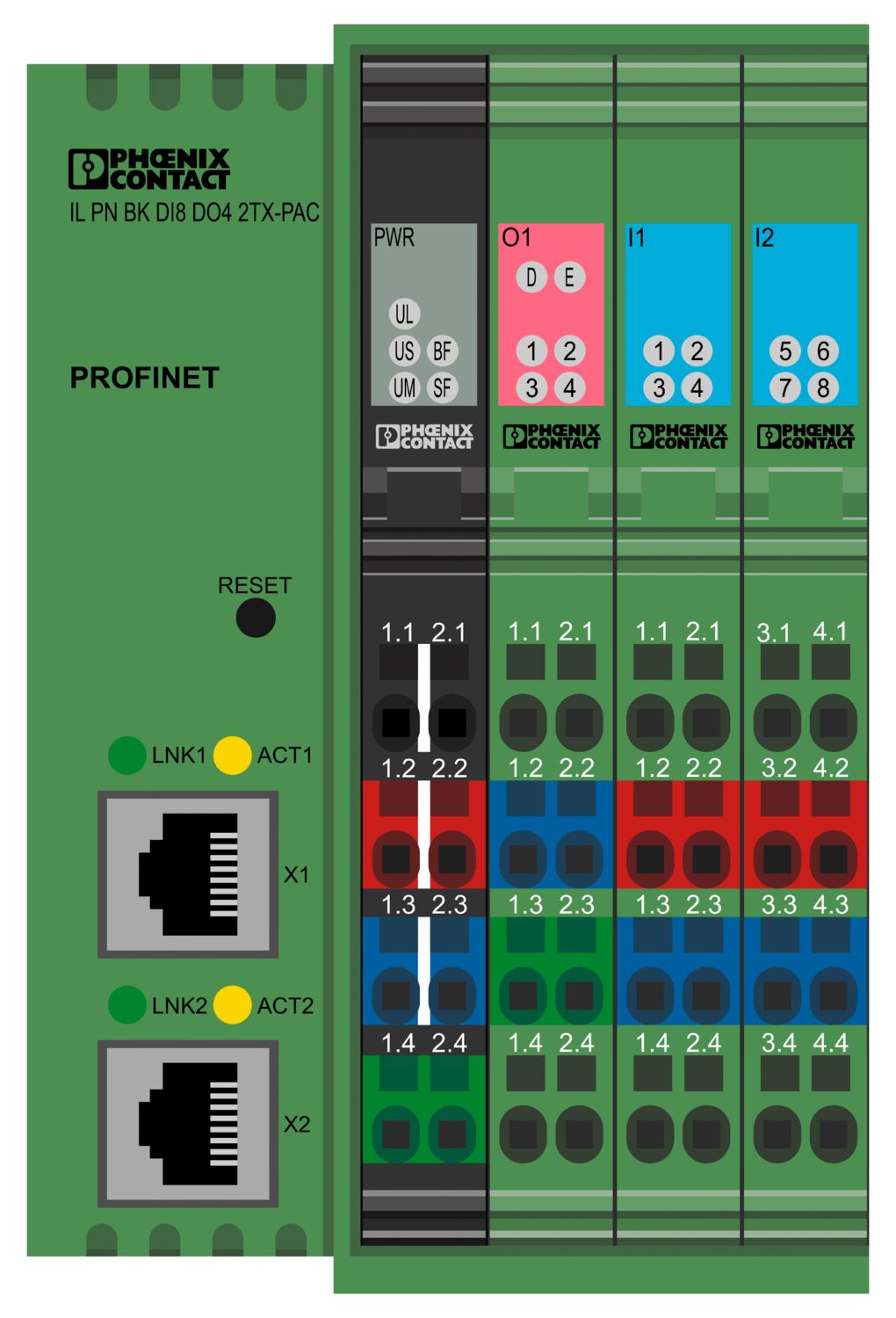

I/O component - IL PN BK DI8 DO4 2TX-PAC 2703994

PROFINET bus coupler, 8 inputs, 24 V DC, 4 outputs, 24 V DC, 500 mA, complete with I/O connectors

Product Details



The bus coupler for the PROFINET protocol has 4 digital outputs and 8 digital inputs. This package contains all the necessary Inline plugs for connecting the supply and the I/Os.
The Inline terminals can be labeled using pull-out labeling fields. The fields have insert cards that can be labeled individually to suit the application. Additionally, there is the ZBFM-6... Zack marker strip for labeling the terminal points.


Order Key 2703994
Packing unit 1 pc
Minimum order quantity 1 pc
Catalog Page Page 105 (C-6-2019)
GTIN 4046356041164
Weight per Piece (including packing) 347.3 GRM
Weight per Piece (excluding packing) 335.7 GRM
Customs tariff number 85176200
Country of origin DE



DNV GL

BV

LR

ABS

RINA

UL Listed

cUL Listed

PROFINET

cULus Listed

cULus Listed

UL Listed

cUL Listed

ATEX


Your advantages

Up to 61 terminals (16 PCP devices) can be connected
80 mm design width
Approved for PROFIsafe applications
Eight digital inputs, four digital outputs (on-board)
Automatic speed detection of the system bus
