IB IL TEMPCON RTD
-
Inline function terminal
2819244

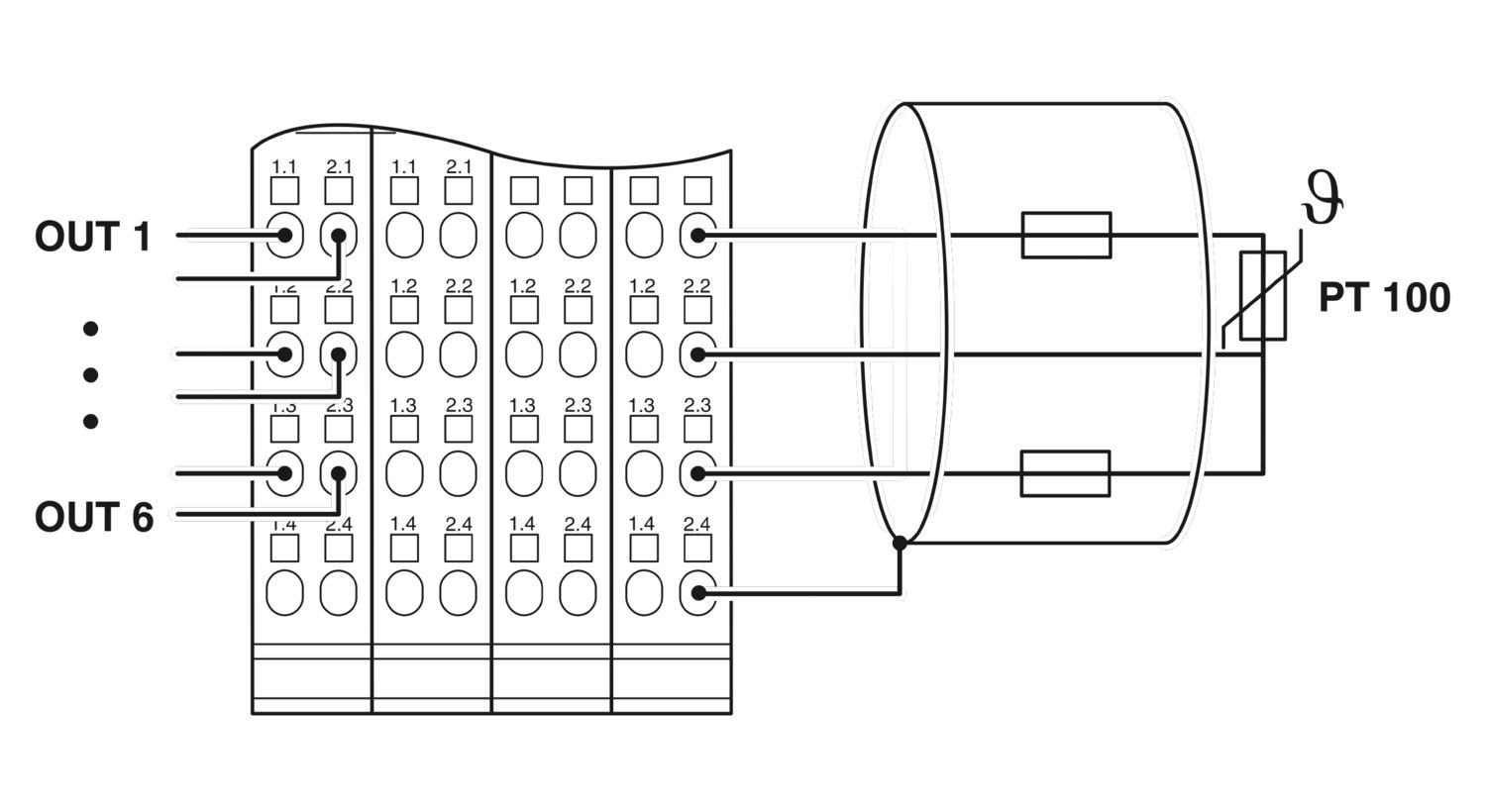

Inline temperature controller, without accessories, 6 inputs for resistance temperature detectors, 6 outputs, 24 V DC, 3-conductor connection technology
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 48.8 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Inline local bus | |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Module | |
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 02 |
| Length code (dec) | 02 |
| Process data channel | 32 bit |
| Input address area | 4 Byte |
| Output address area | 4 Byte |
| Register length | 32 bit |
| Required parameter data | 1 Byte |
| Output current | 70 mA |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| No. of channels | 6 |
| Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min |
| 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min | |
| 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | |
| Analog inputs/bus logics 500 V AC 50 Hz 1 min | |
| Analog inputs / 24 V supply (I/O) 500 V AC 50 Hz 1 min | |
| Analog inputs/functional ground 500 V AC 50 Hz 1 min | |
| Supply | |
| Max. current consumption | 4 A |
| Typical current consumption | 250 mA |
| Connection method | Spring-cage connection |
| Ambient conditions | |
| Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
Your advantages
Configuration via engineering tool (configuration software)
Self-tuning
6 outputs, 24 V DC / 70 mA
Can be configured as a 2-step controller, 3-step controller, motor step controller or signaling device (threshold value switch)
6 analog inputs for Pt 100 according to DIN EN 60751
Heating current and closed-loop control circuit monitoring
