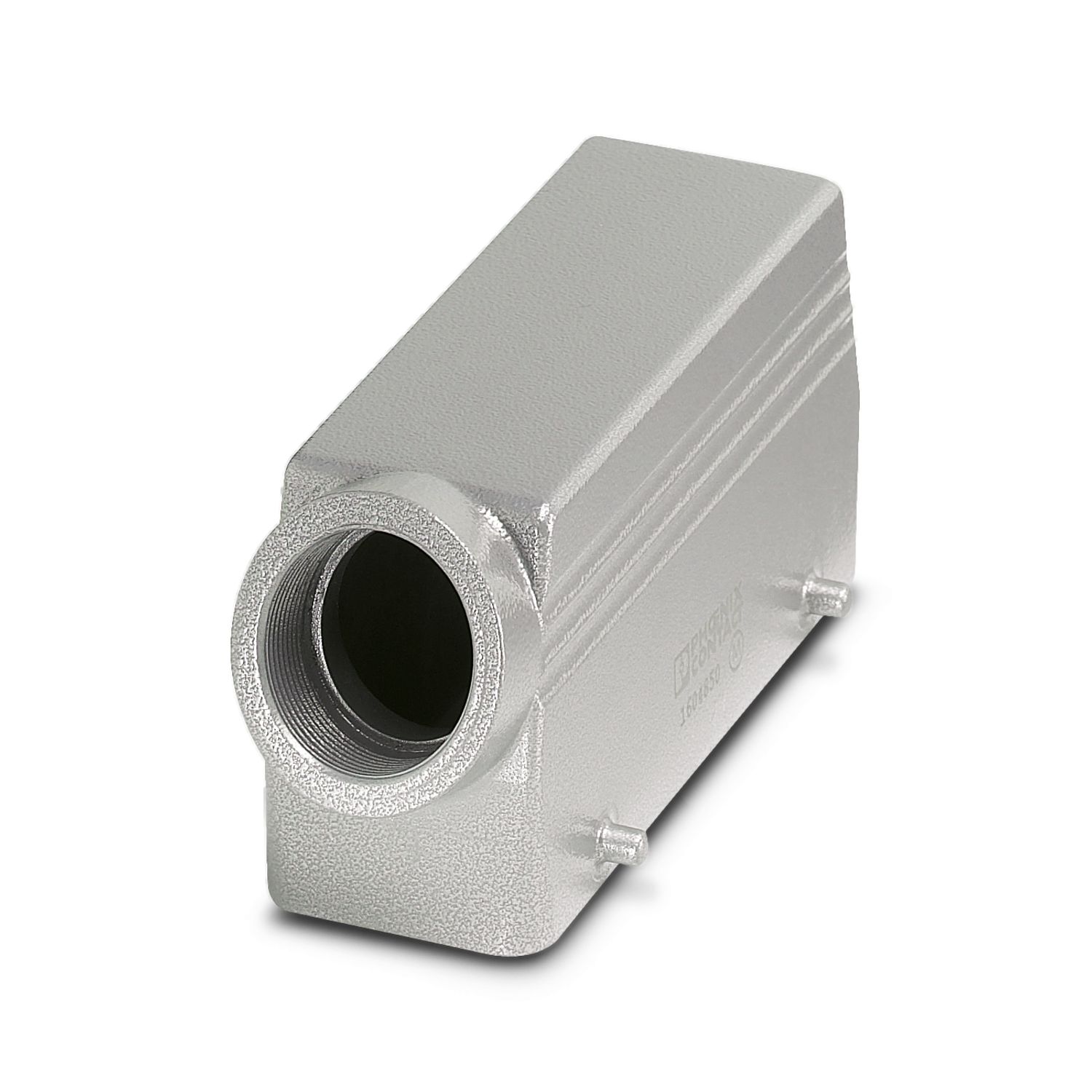

HC-HV 6-TFQ-60/O1M25S
-
Housing
1604936
HEAVYCON sleeve housing HV6, for double locking latch, height 45 mm, with support 1x M25, lateral conductor exit
Product details
| General | For contact inserts HV-HV6 |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | HV6 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Cable outlet | lateral |
| Dimensional drawing |
|
| Width | 43 mm |
| Height | 65 mm |
| Length | 94 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
