HC-B 6-SML-74/O2M25
-
Housing
1460195
HEAVYCON box mounting base B6, with single locking latch. Height 74 mm, with support 2 x M25
Product details
| General | For contact inserts HC-B6, BB10, DD24, M Tall housings for extra large wiring space |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Type | B6 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M25 |
| Cable outlet | lateral |
| Pg screw connection | none |

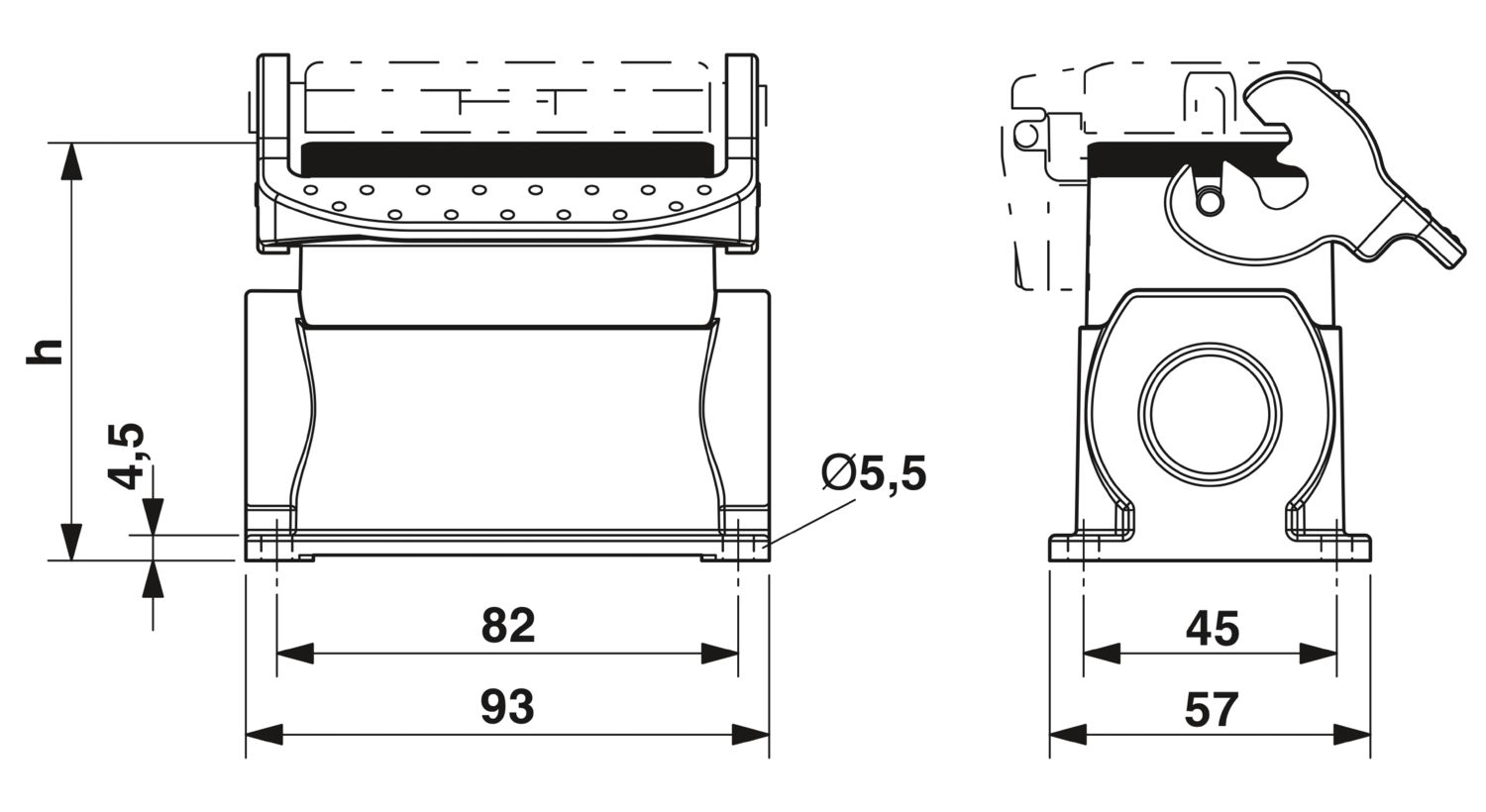

| Dimensional drawing |
|
| Width | 57 mm |
| Height | 74 mm |
| Length | 84 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 2x M25 |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
