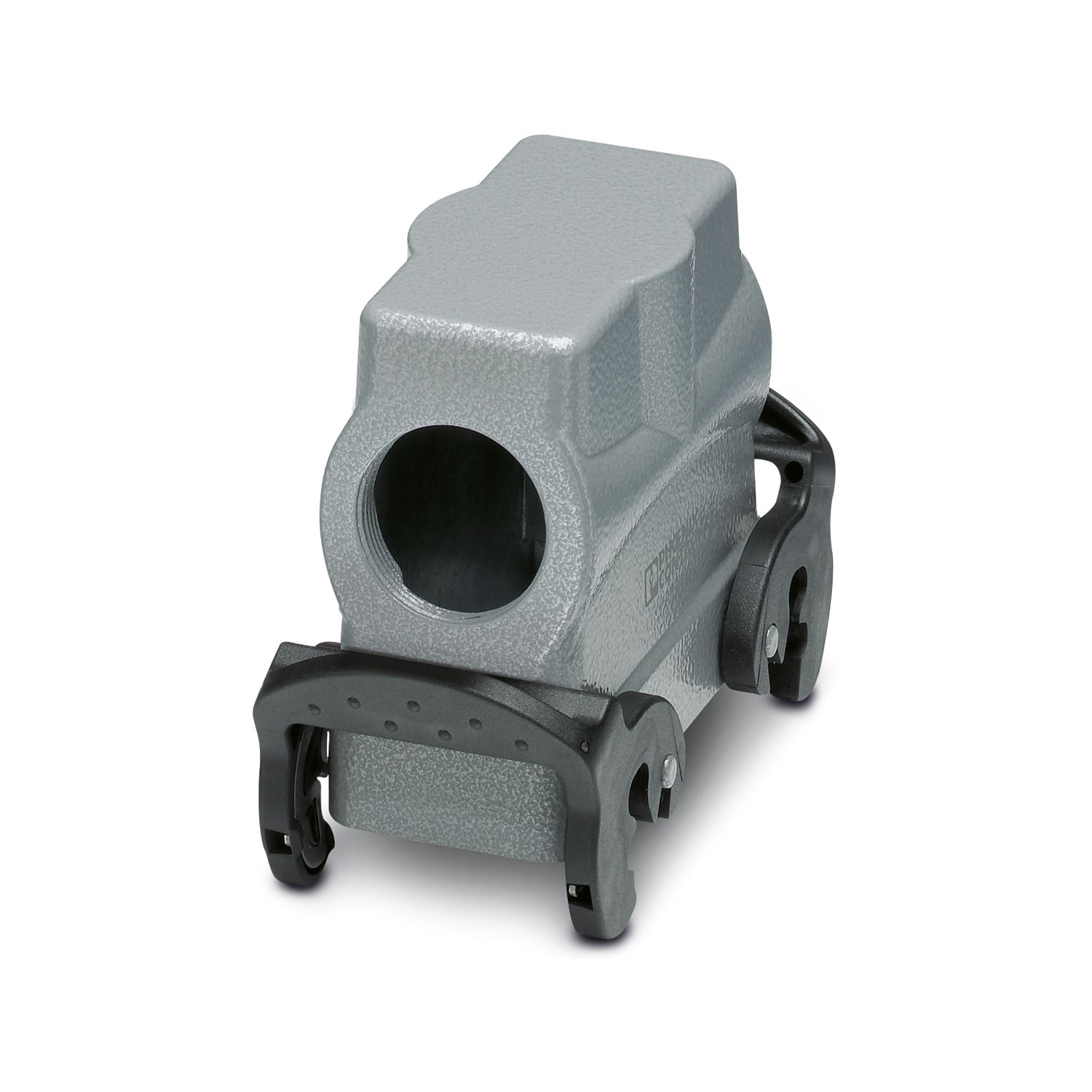

Housing with locking latch - HC-B 16-TMQ-H-O1STM25S 1460182

HEAVYCON B16 sleeve housing, with double locking latch, height: 72 mm, with 1 x M25 thread, lateral cable outlet

Product Details




No. of cable outlets 1
Cable outlet lateral
Pg screw connection none

Mechanical data
Type of the screw connection 1x M25
Locking type Latch
Interlock
Locking type with double locking latch

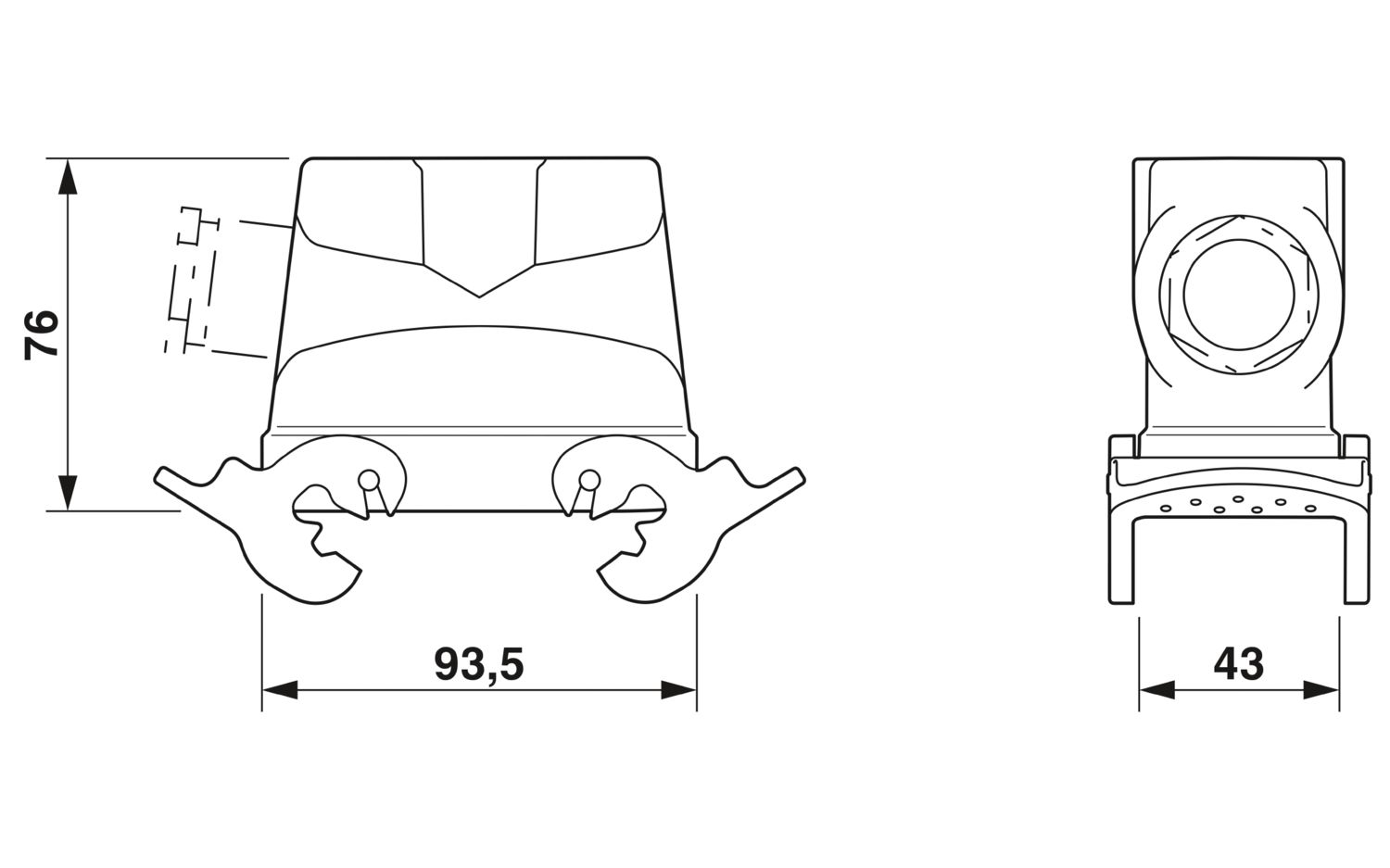

Dimensional drawing
Dimensional drawing
Width 43 mm
Height 76 mm
Length 93.5 mm

Degree of protection IP65
Degree of protection IP65
Ambient temperature (operation) -40 °C ... 125 °C

General For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K
Environmental Product Compliance
China RoHS Environmentally friendly use period: unlimited = EFUP-e
China RoHS No hazardous substances above threshold values

Housing surface material Powder-coated, gray
Material grip body interlock PA
Locking latch material Stainless steel, handle: PA
Housing material Aluminum die-cast

Type B16
Application Standard
Type of the screw connection 1x M25
Housing type Sleeve housing
Locking type with double locking latch


Order Key 1460182
Packing unit 10 pc
Minimum order quantity 1 pc
Note Made to Order (non-returnable)
Catalog Page Page 518 (C-4-2013)
GTIN 4046356794084
Weight per Piece (including packing) 238.5 GRM
Weight per Piece (excluding packing) 238.5 GRM
Customs tariff number 85389099
Country of origin DE



EAC
