Housing with locking latch - HC-B 16-TFQ-H-O1PG21G 1460146

HEAVYCON B16 sleeve housing, for double locking latch, height: 76 mm, with 1 x Pg21 gland, straight cable outlet

Product Details




Shielded no
No. of cable outlets 1
Cable outlet straight
Pg screw connection none

Mechanical data
Type of the screw connection 1x Pg21
Locking type Pin
Interlock
Locking type for double locking latch

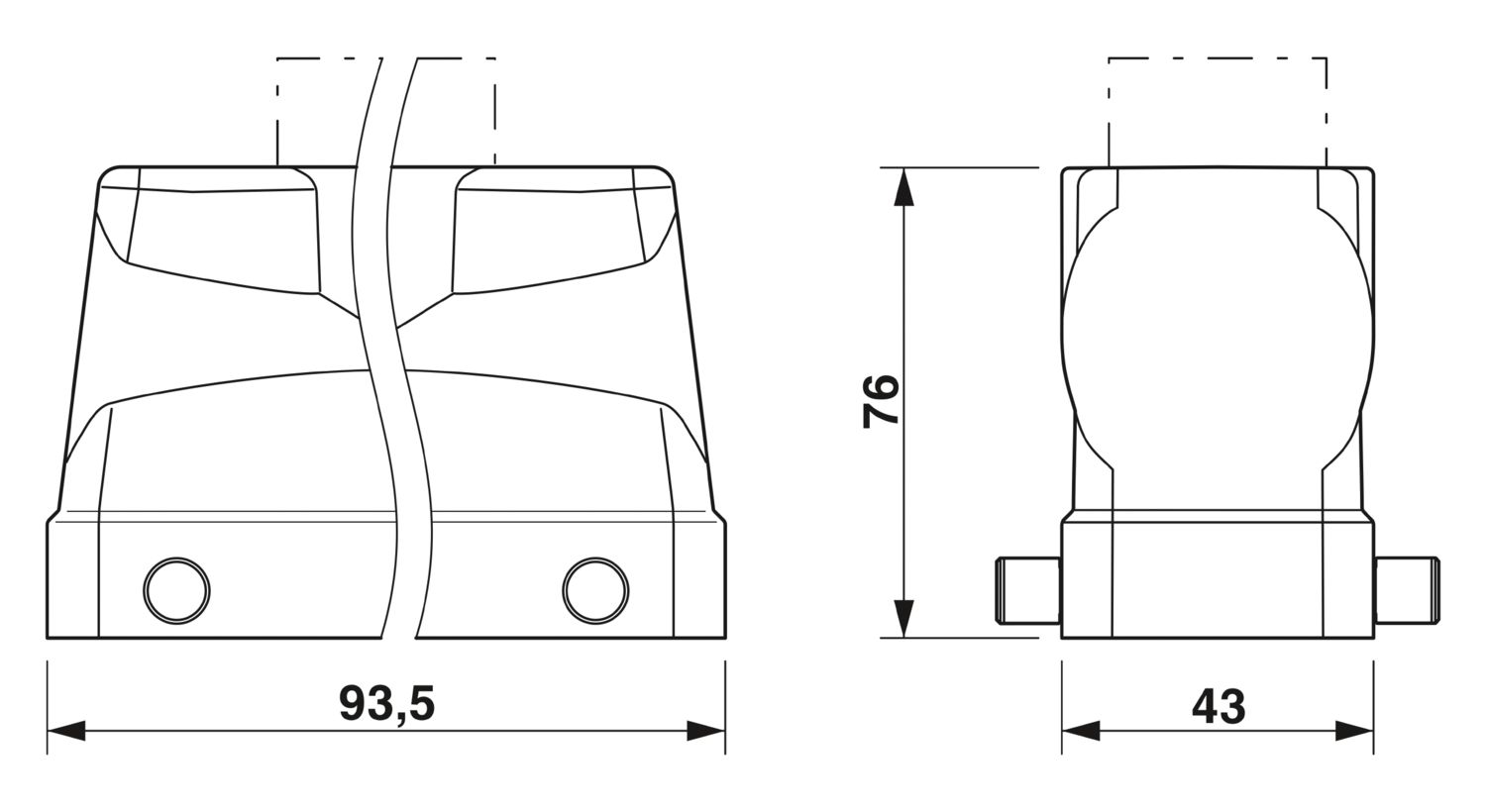

Dimensional drawing
Dimensional drawing
Width 43 mm
Height 76 mm
Length 94 mm

Degree of protection IP65
Degree of protection IP65
Ambient temperature (operation) -40 °C ... 125 °C

General For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K
Environmental Product Compliance
China RoHS Environmentally friendly use period: unlimited = EFUP-e
China RoHS No hazardous substances above threshold values

Housing surface material Powder-coated, gray
Housing material Aluminum die-cast

Type B16
Application Standard
Type of the screw connection 1x Pg21
Housing type Sleeve housing
Locking type for double locking latch


Order Key 1460146
Packing unit 10 pc
Minimum order quantity 1 pc
Note Made to Order (non-returnable)
Catalog Page Page 514 (C-4-2013)
GTIN 4046356695978
Weight per Piece (including packing) 238.2 GRM
Weight per Piece (excluding packing) 224.6 GRM
Customs tariff number 85389099
Country of origin DE



EAC
