HC-DS-PG29-Z
-
Pressure screw
1772654

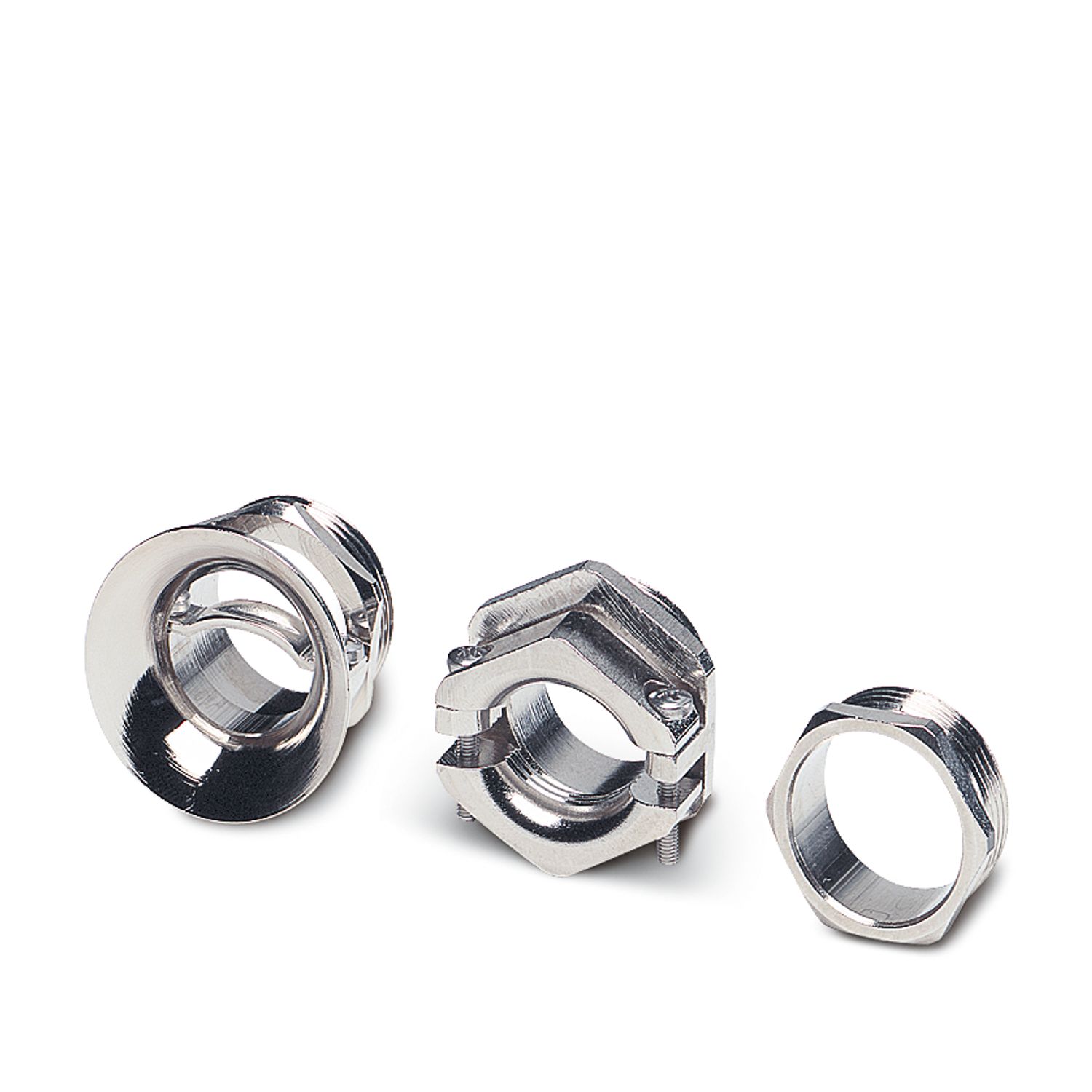

Pressure screws, with strain relief clamps, nickel-plated brass, clamping area 19 mm ... 27 mm, type Pg29
Product details
| Product type | Half screw connection |
| Pg screw connection | Pg29 |

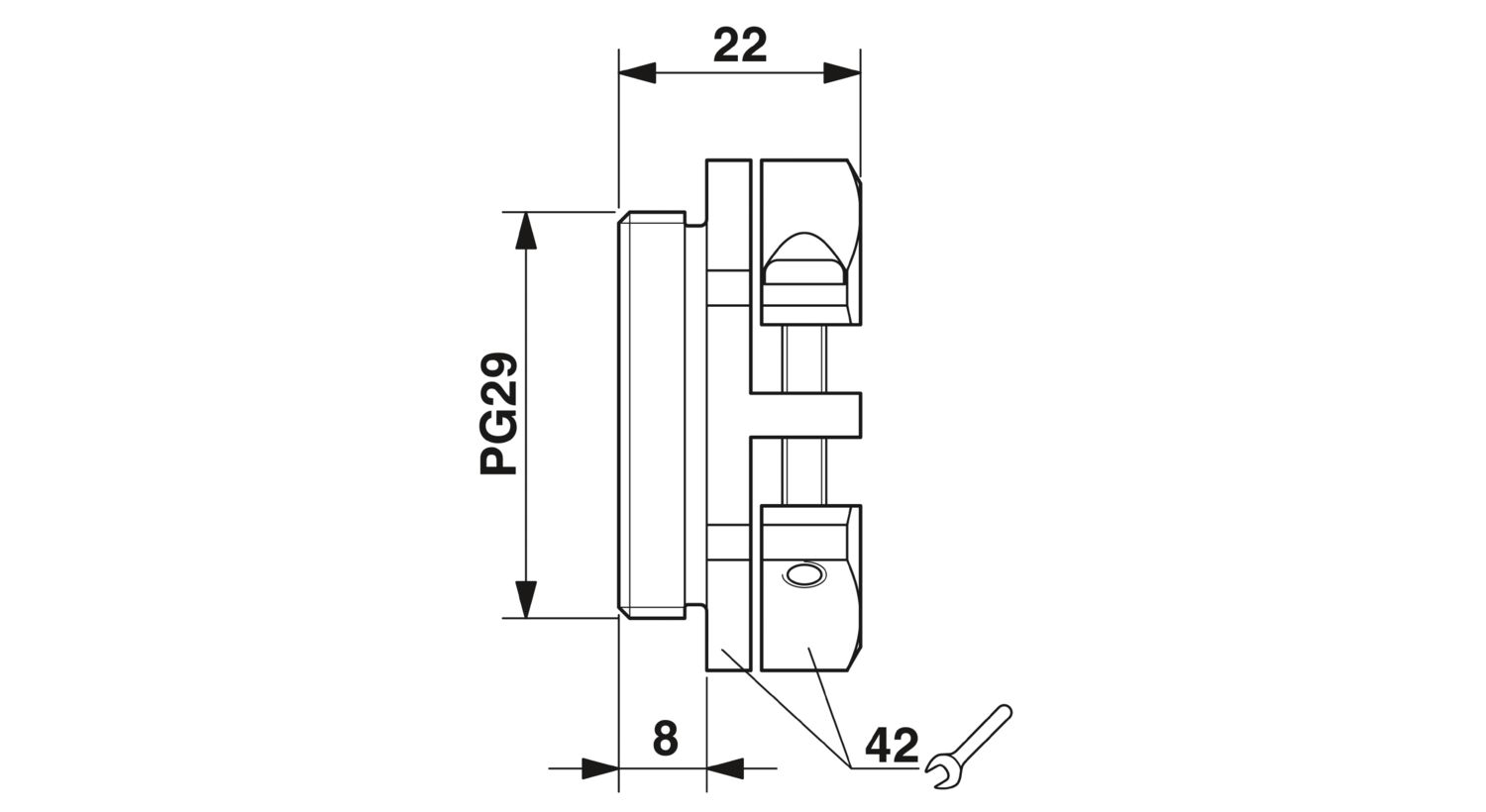

| Dimensional drawing |
|
| Wrench size, union nut | 42 mm |
| Clamping range of the strain relief clip | 19.00 mm ... 27.00 mm |
| Material Pressure screw | Brass, nickel-plated |
