POS HP 121006 TRANS
-
Outdoor housing
1588626

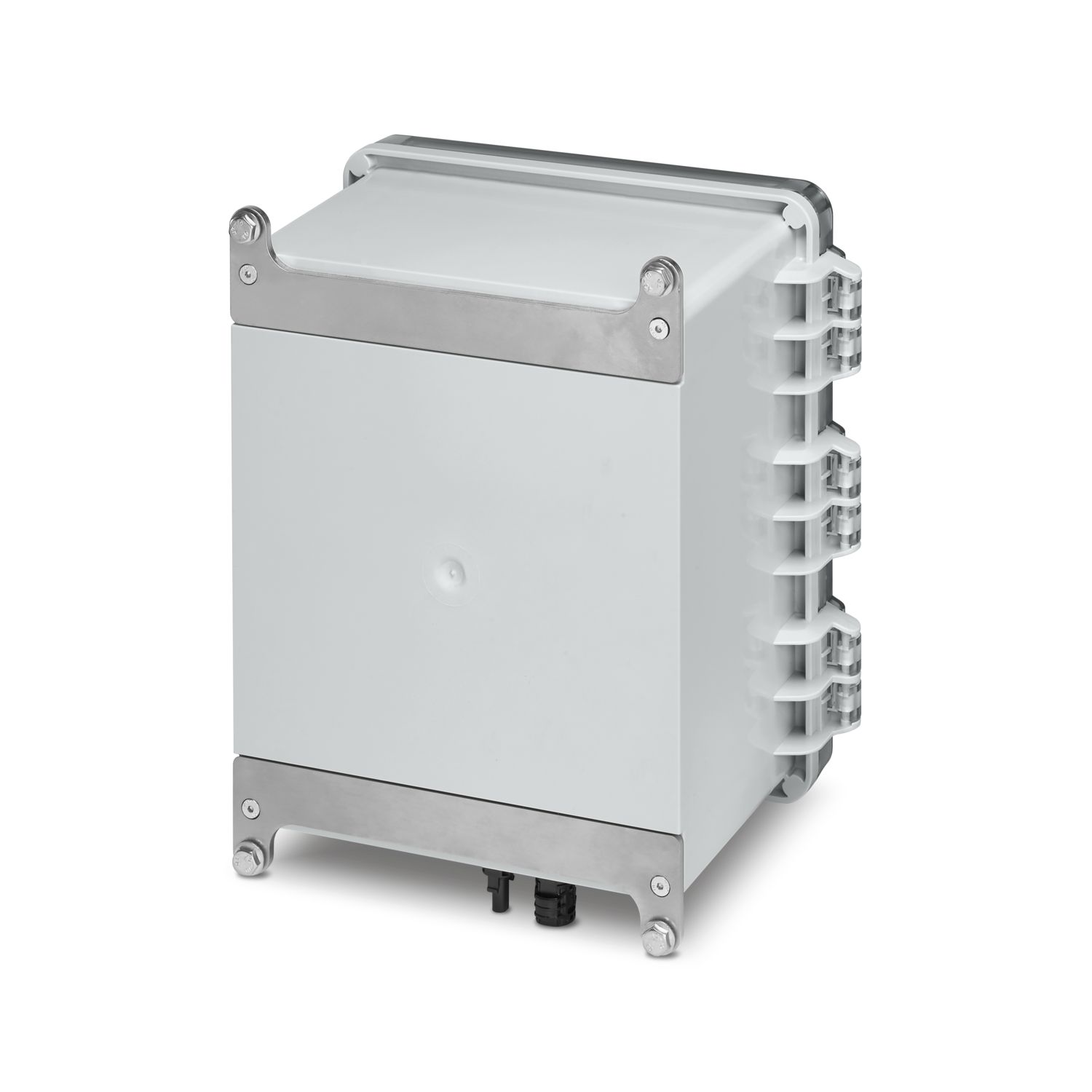

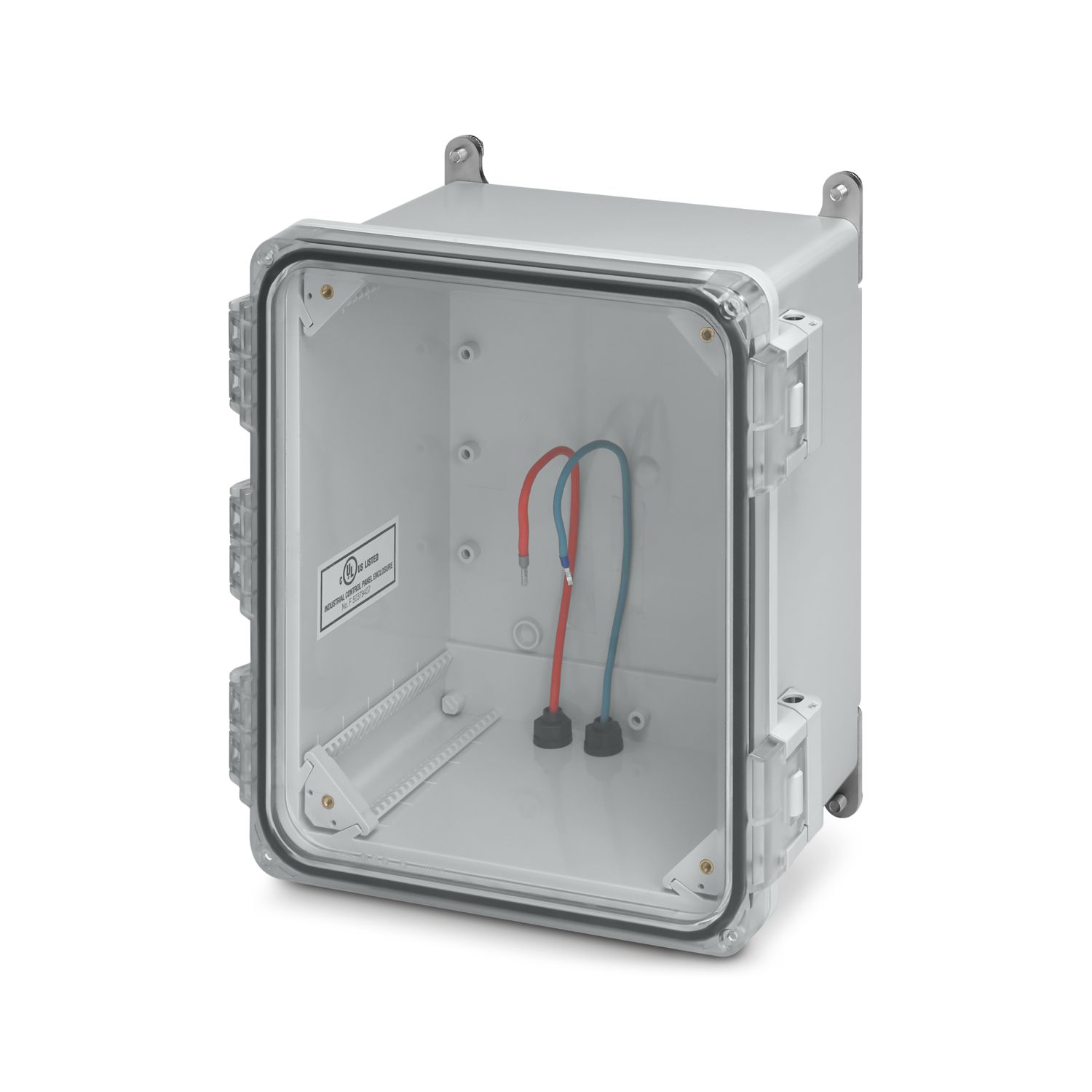

Outdoor housing, color: light gray, dimensions: 352 mm x 308 mm x 185 mm, with panel feed-through for PV connectors and pre-assembled holder, including corner inlays, cover plugs, screws, cover: transparent, plastic latch, material: UV-stabilized polycarbonate
This product needs further products for operation.
Mandatory accessories
Product details
| Assembly note | Only use the screws provided to screw the components onto the corner inlays, the mounting pillars, and the housing. |
| Recommendation | To maintain the degree of protection, you must install suitable components with at least the same IP degree of protection in all openings. |
| Recommendation | Further information and detailed dimensions are available in the download area. |
| Product type | Complete housing |
| Housing type | Outdoor housing |
| Housing series | POS |
| Product family | POS..1210.. |
| Type | Complete housing with transparent cover incl. mounting material |
| Ventilation openings present | no |
| Battery compartment | no |
| Dimensional drawing |
|
| Width | 308 mm |
| Height | 352 mm |
| Depth | 185 mm |
| Hole diameter | 10 mm (Can be secured mechanically with the latch) |
| Color (Housing) | light gray (RAL 7035) |
| Color (Housing cover) | transparent |
| Material (Housing) | PC UV stabilized |
| Material (Seal) | PUR |
| Material (Mount) | Stainless steel |
| Flammability rating according to UL 94 | V2 |
| Surface characteristics | untreated |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Degree of protection (IP code) | |
| Specification | IEC 60529:2001-02 |
| Ambient conditions | |
| Degree of protection | IP66/IP68 (2 m / 24 h) |
| Max. NEMA code to attain | 6P |
| Impact strength | IK10 (at -35°C ... +40°C) |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Type of PCB mount | Bolt mounting |
| Mounting type | Mast mounting (with POS POLEFIX..) |
| Type of packaging | Box packaging |
Your advantages
Resistance to corrosion
Different housing sizes can be combined with one holder
Simple 1-person installation of the entire system
Complete system except own electronics
Simple supply chain
