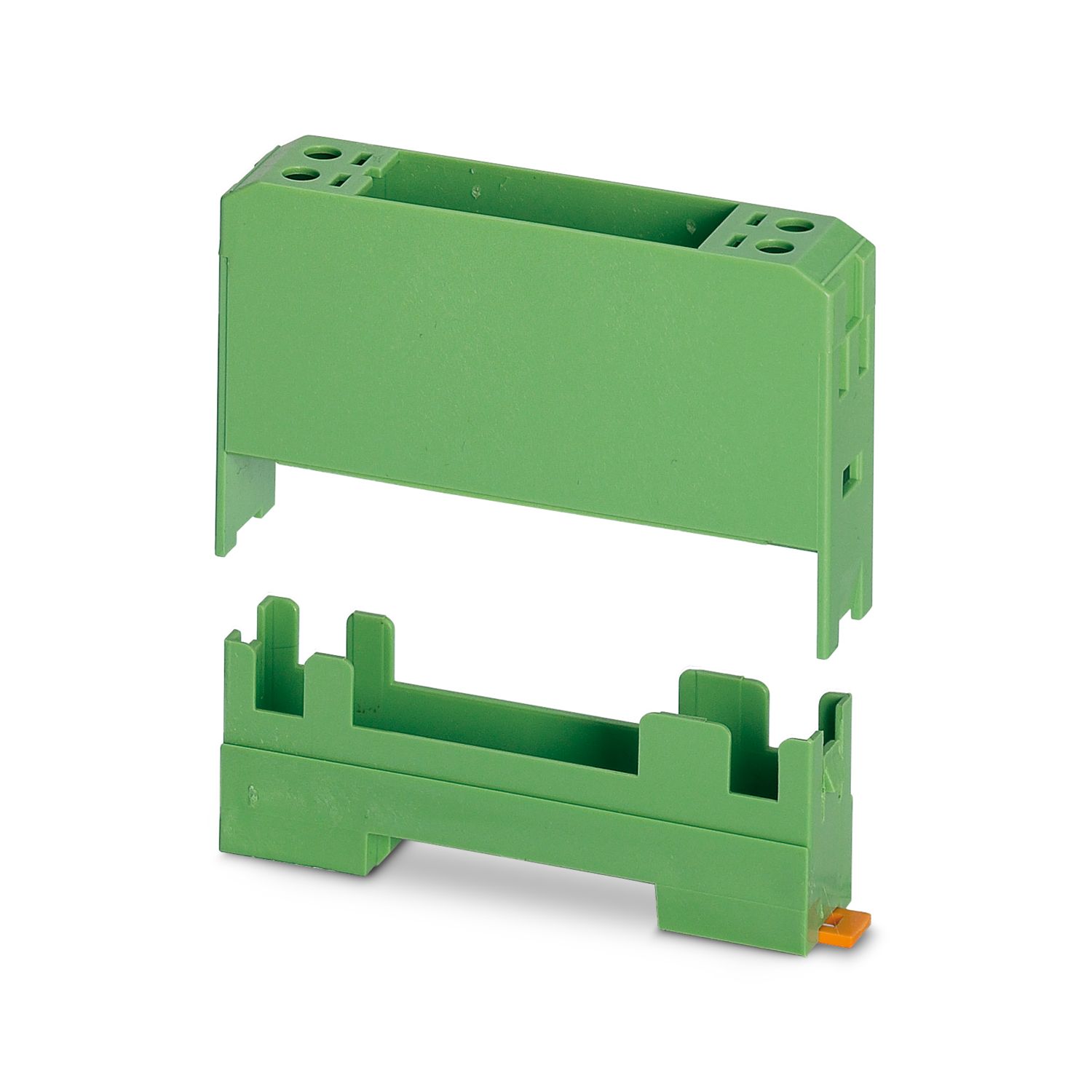

EMG 17-LG-7,5
-
Electronics housing
2944106
Electronic housing, with universal foot, for p.c.b. insertion, without screw connection terminal blocks and cover, pitch 7.5
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Complete housing |
| Housing type | Component housing |
| Product family | EMG...-LG |
| Type | Lower part of housing, removable cover optional |
| Number of positions | 4 |
| Pitch | 7.5 mm |
| Set comprises | 2942988 EMG 17-LG/SET |
| Type | Lower and upper part, with universal foot |
| Dimensional drawing |
|
| Width | 17.5 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 47.5 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 7.5 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate fiber reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
