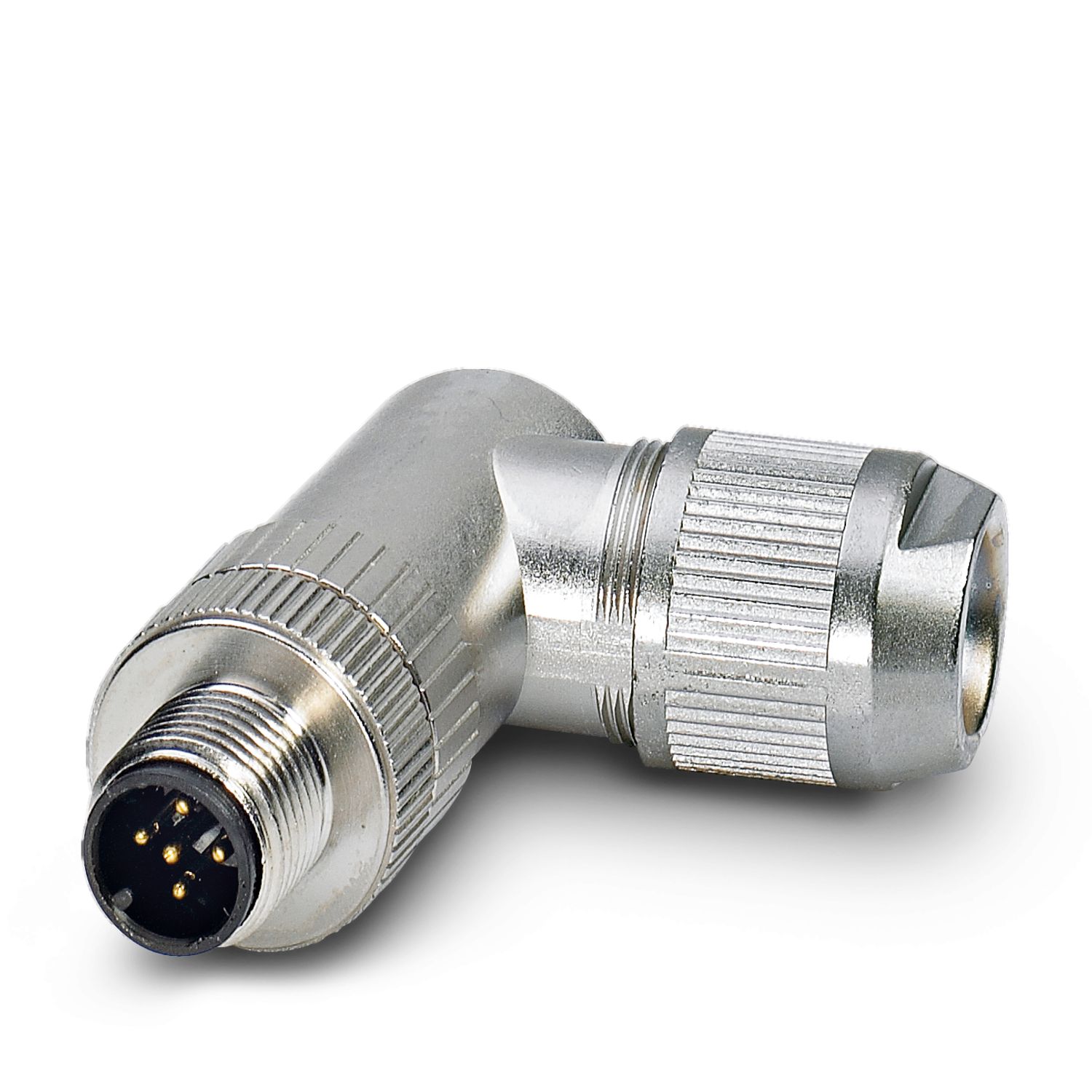

SACC-M12MR-5SC SH DN - Data connector

1549803

Data connector, 5-position, shielded, Plug angled M12, coding: A, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm

Assembly note	The connector pin assignment can be rotated 45° to the cable outlet
	The wires can be connected both with ferrules and without ferrules

Product type	Circular connector (cable-side)
Number of positions	5
No. of cable outlets	1
Shielded	yes
Coding	A
Cable outlet	angled
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

External dimensions
Outside diameter	4 mm ... 8 mm

Flammability rating according to UL 94	V0
Seal material	NBR
Material of grip body	Zinc die-cast, nickel-plated
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	PA 6.6
Material for screw connection	Brass, nickel-plated

Conductor connection
Connection method	Spring-cage connection
Connection cross section	0.14 mm² ... 0.5 mm²
Connection cross section AWG	26 ... 20
Stripping length of the individual wire	10 mm
Tightening torque	0.4 Nm (M12 knurl)
	0.8 Nm (Connector with coupling sleeve)
	3 Nm (Pressure nut)

Contact resistance	≤ 8 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	60 V DC
	48 V AC
Nominal current I_N	4 A

Mechanical data
Insertion/withdrawal cycles	≥ 100

Connection 1
Head design	Plug
Head cable outlet	angled
Head thread type	M12
Coding	A

Stripping length of the individual wire	10 mm

Ambient conditions
Degree of protection	IP67
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 85 °C (Plug / socket)

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101

Item number	1549803
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	AF2CFD
Catalog page	Page 283 (PC-2009)
GTIN	4046356149020
Weight per piece (including packing)	43 g
Weight per piece (excluding packing)	43 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

Your advantages

Safe use in the field, thanks to a high degree of protection

Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces

Reliable signal transmission – 360° shielding in environments with electromagnetic interference
