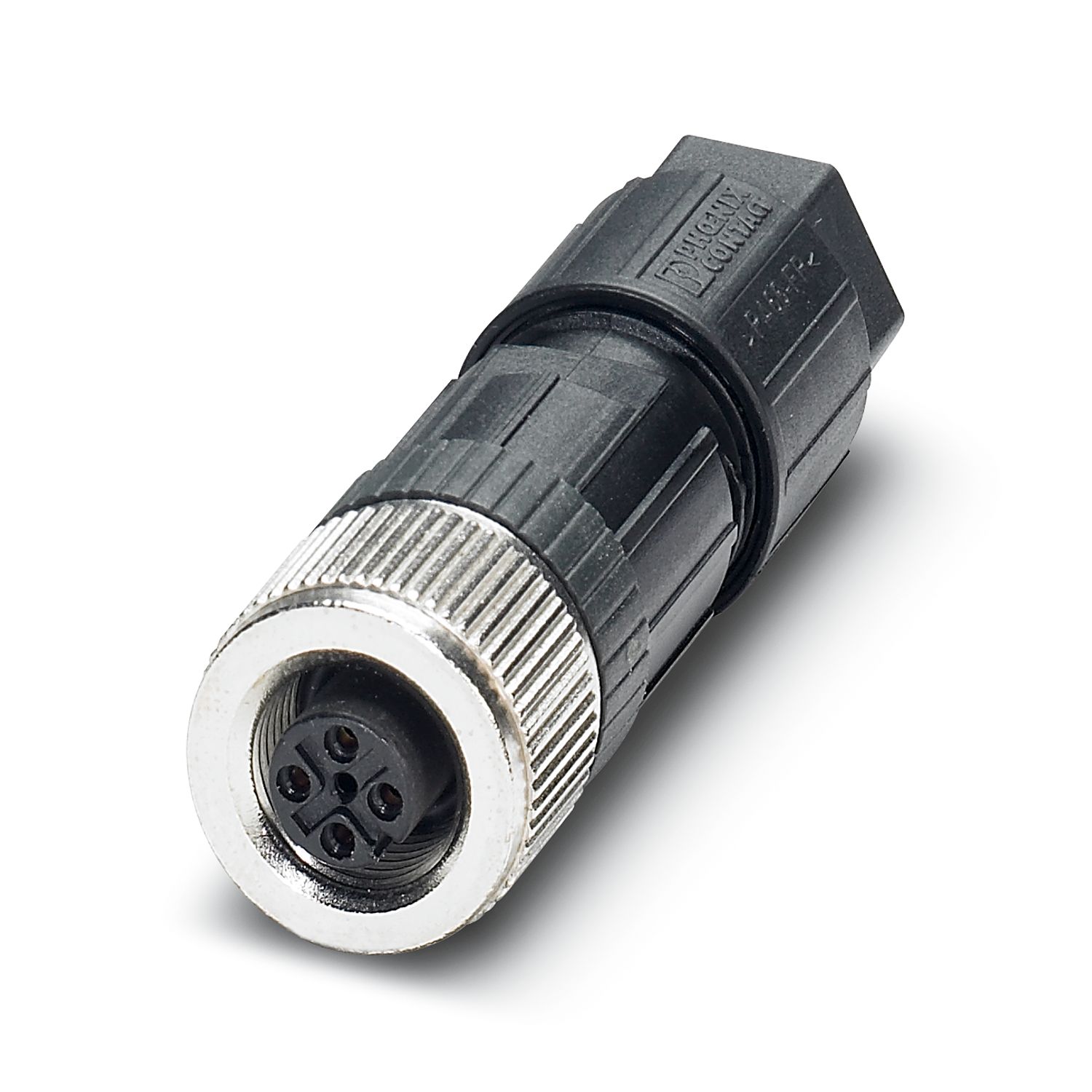

SACC-M12FS-4SC M - Connector

1513198

Connector, 4-position, Socket straight M12, coding: A, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm

Assembly note	The wires can be connected both with ferrules and without ferrules

Product type	Circular connector (cable-side)
Number of positions	4
No. of cable outlets	1
Shielded	no
Coding	A
Cable outlet	straight
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

External dimensions
Outside diameter	4 mm ... 8 mm

Flammability rating according to UL 94	V0
Seal material	Neoprene
Material of grip body	PA 6.6
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	PA 6.6
Material for screw connection	Zinc die-cast, nickel-plated

Conductor connection
Connection method	Spring-cage connection
Connection cross section	0.14 mm² ... 0.5 mm²
Connection cross section AWG	26 ... 20
Stripping length of the individual wire	10 mm
Tightening torque	0.4 Nm (M12 knurl)
	0.4 Nm (Connector with coupling sleeve)
	1.5 Nm (Pressure nut with coupling sleeve)

Contact resistance	≤ 8 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	250 V
Nominal current I_N	4 A

Mechanical data
Insertion/withdrawal cycles	≥ 100

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M12
Coding	A

Stripping length of the individual wire	10 mm

Ambient conditions
Degree of protection	IP65
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 85 °C (Plug / socket)

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101

Item number	1513198
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	AF2CEA
GTIN	4017918946562
Weight per piece (including packing)	26.5 g
Weight per piece (excluding packing)	26.4 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

Your advantages

Safe use in the field, thanks to a high degree of protection

Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces
