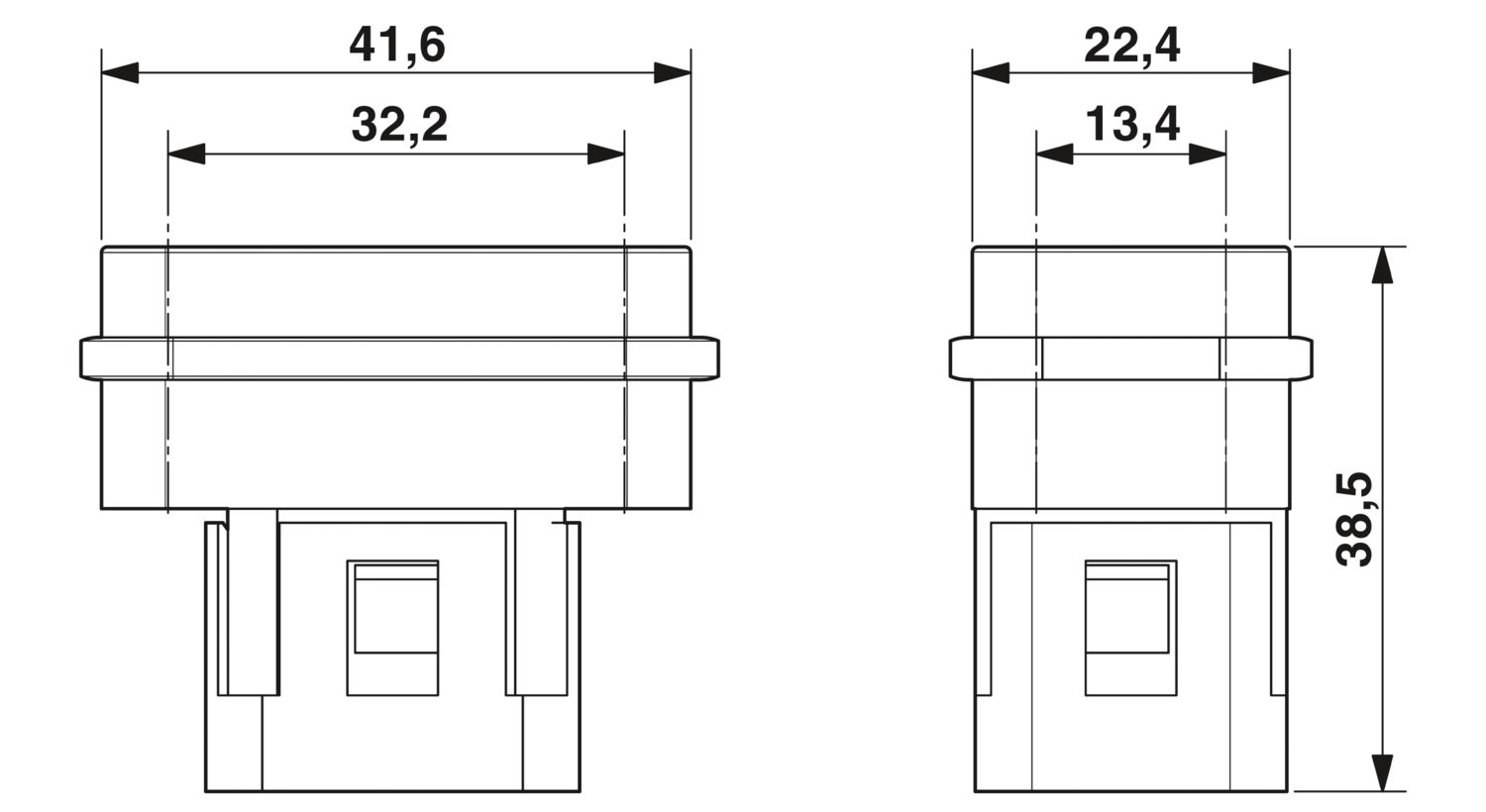

HC-COM-8-ESTC dimensional drawing

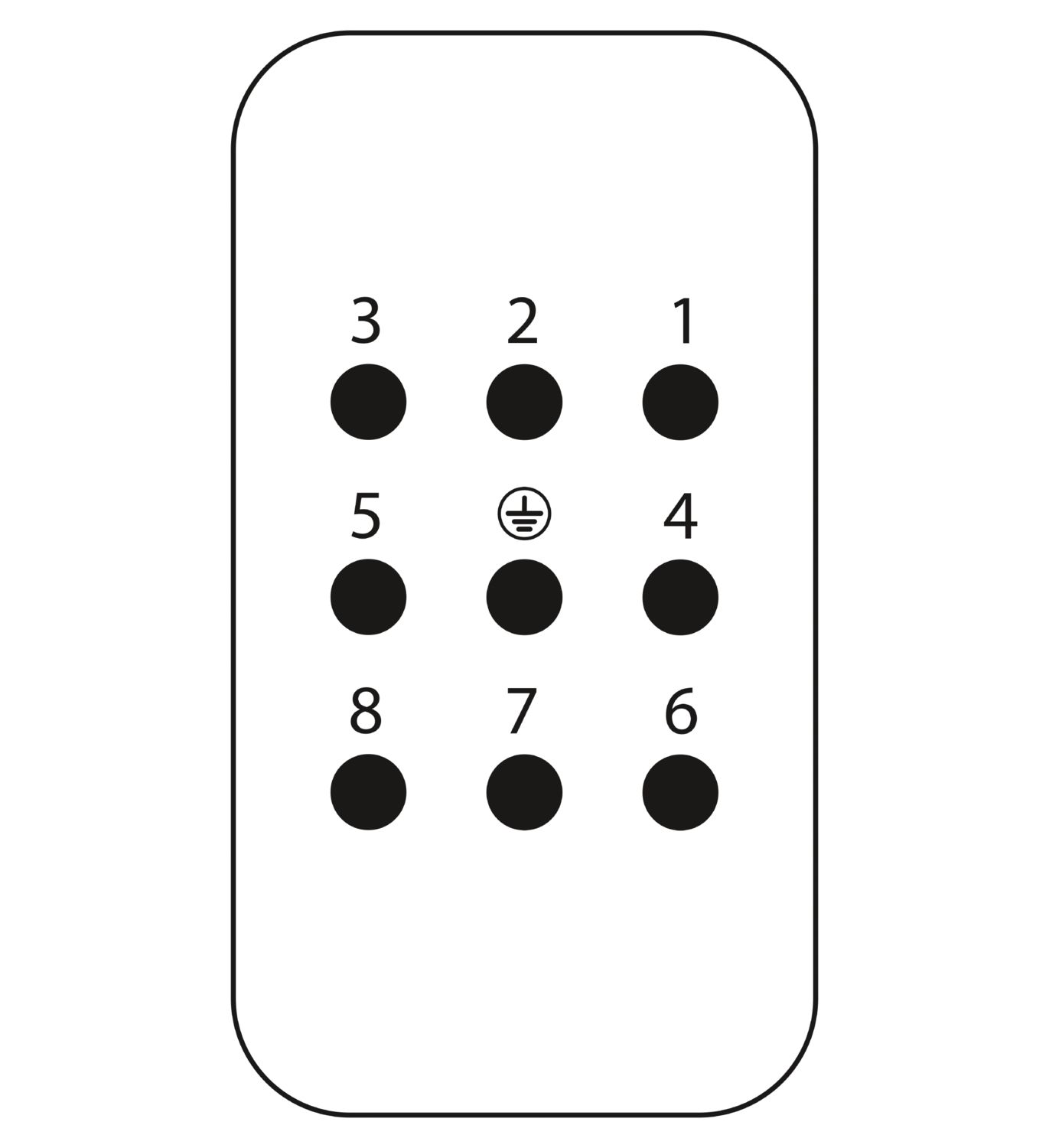

Connector pin assignment, connection side
Derating diagram for 4 mm2

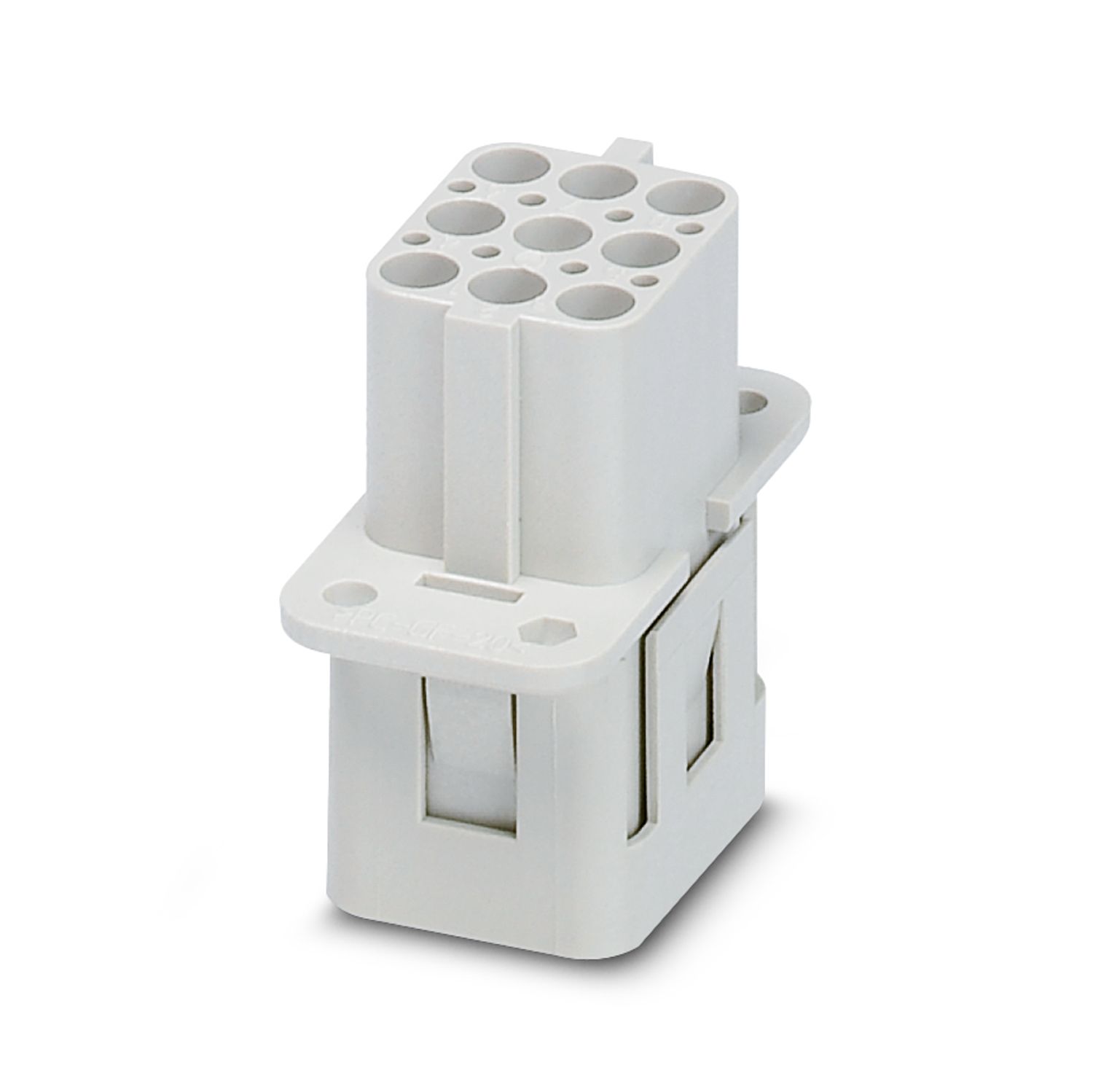

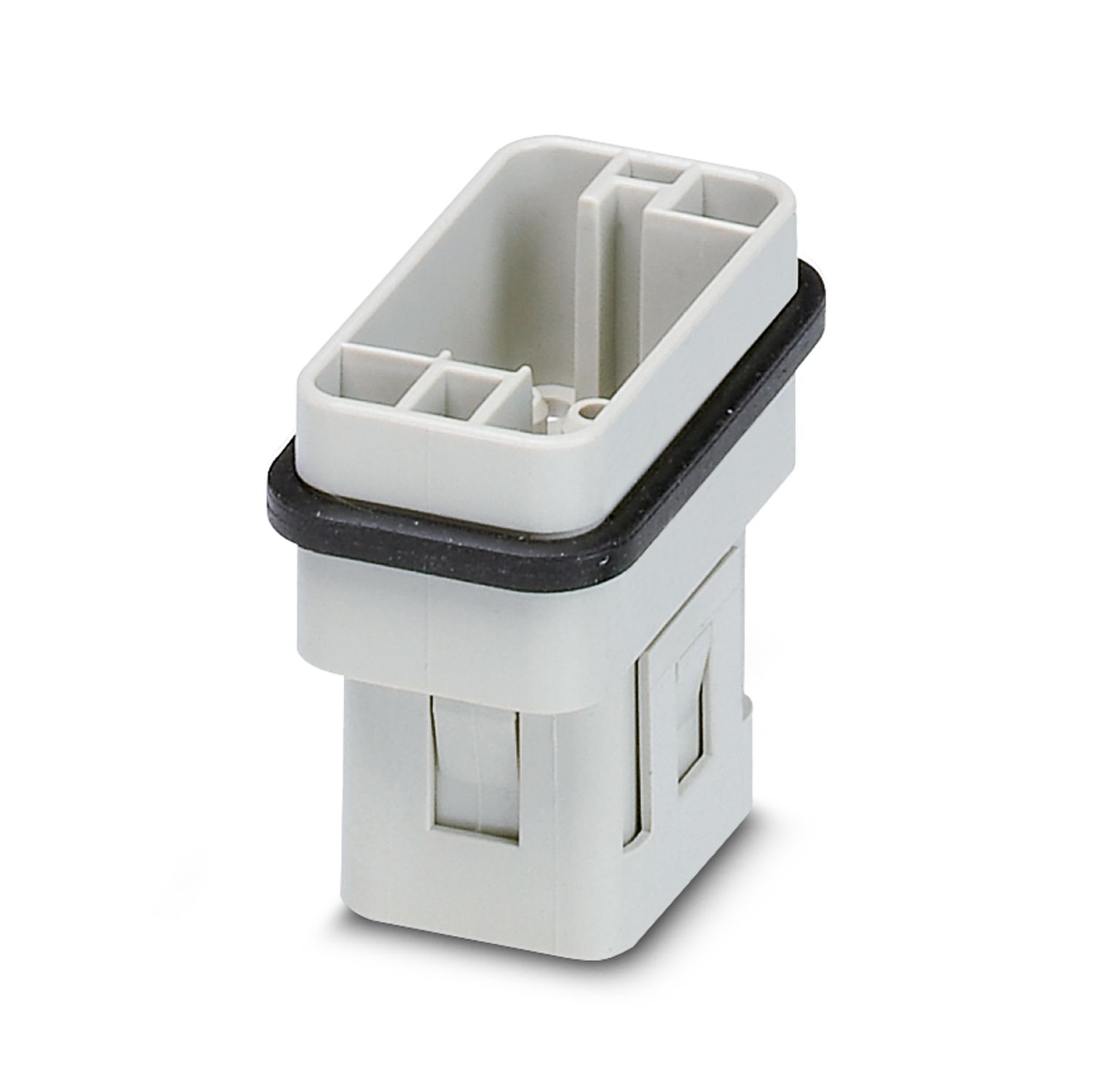

Contact insert - HC-COM- 8-ESTC
1408481

HEAVYCON crimp contact insert for compact plastic housing; male connector version; 8-pos. + PE

Product Details

Contact insert, incl. 4 mounting screws

General For crimp contacts CK2,5-ED...
General Connectors may be operated only when there is no load/voltage.
Type COM
Product type Contact insert with a fixed no. of positions
Number of positions 8
Connection profile 8+PE
No. of power contacts 8
No. of control contacts 0
Contact type turned
Series HC-COM
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Connection technology
Connection technology Crimp connection
Connection in acc. with standard IEC / EN
Conductor connection
Conductor cross section 0.5 mm² ... 4 mm²
Connection cross section AWG 20 ... 12
Stripping length of the individual wire 7.5 mm
Dimensional drawing
Width 25.6 mm
Height 38.5 mm
Length 45 mm
Mechanical characteristics
Contact diameter 2.5 mm
Rated voltage (III/3) 500 V
Rated voltage for power contacts 500
Rated surge voltage 6 kV
Rated current 16 A
Flammability rating according to UL 94 V0
Sealing material profile gasket
Contact material Copper alloy
Contact surface material Ag (alternatively Au)
Contact carrier material PC
Insertion/withdrawal cycles ≥ 500
Cable structure
Stripping length of the individual wire 7.5 mm
Assembly instructions To ensure correct use, installation in housing with IP54 protection or better is required
Ambient temperature (operation) -40 °C ... 100 °C (including heating up of contacts)
Item number 1408481
Packing unit 2 pc
Minimum order quantity 1 pc
Sales Key 020
Product Key BF7ABH
Catalog Page Page 649 (C-2-2017)
GTIN 4046356618199
Weight per Piece (including packing) 18,05 g
Weight per Piece (excluding packing) 18,05 g
Customs tariff number 85389099
Country of origin CN

ECLASS

ECLASS-9.0 27440205
ECLASS-10.0.1 27440205
ECLASS-11.0 27440205

ETIM

ETIM 8.0 EC000438

UNSPSC

UNSPSC 21.0

CSA

Approval ID: 260458
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 19 A 20 - 12

cUL Recognized

Approval ID: FILE E 118976
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 20 - 12

UL Recognized

Approval ID: FILE E 118976
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 20 - 12

EAC

Approval ID: RU C-DE.AI30.B.01102

EAC

Approval ID: RU C-DE.BL08.B.00511

cULus Recognized

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
