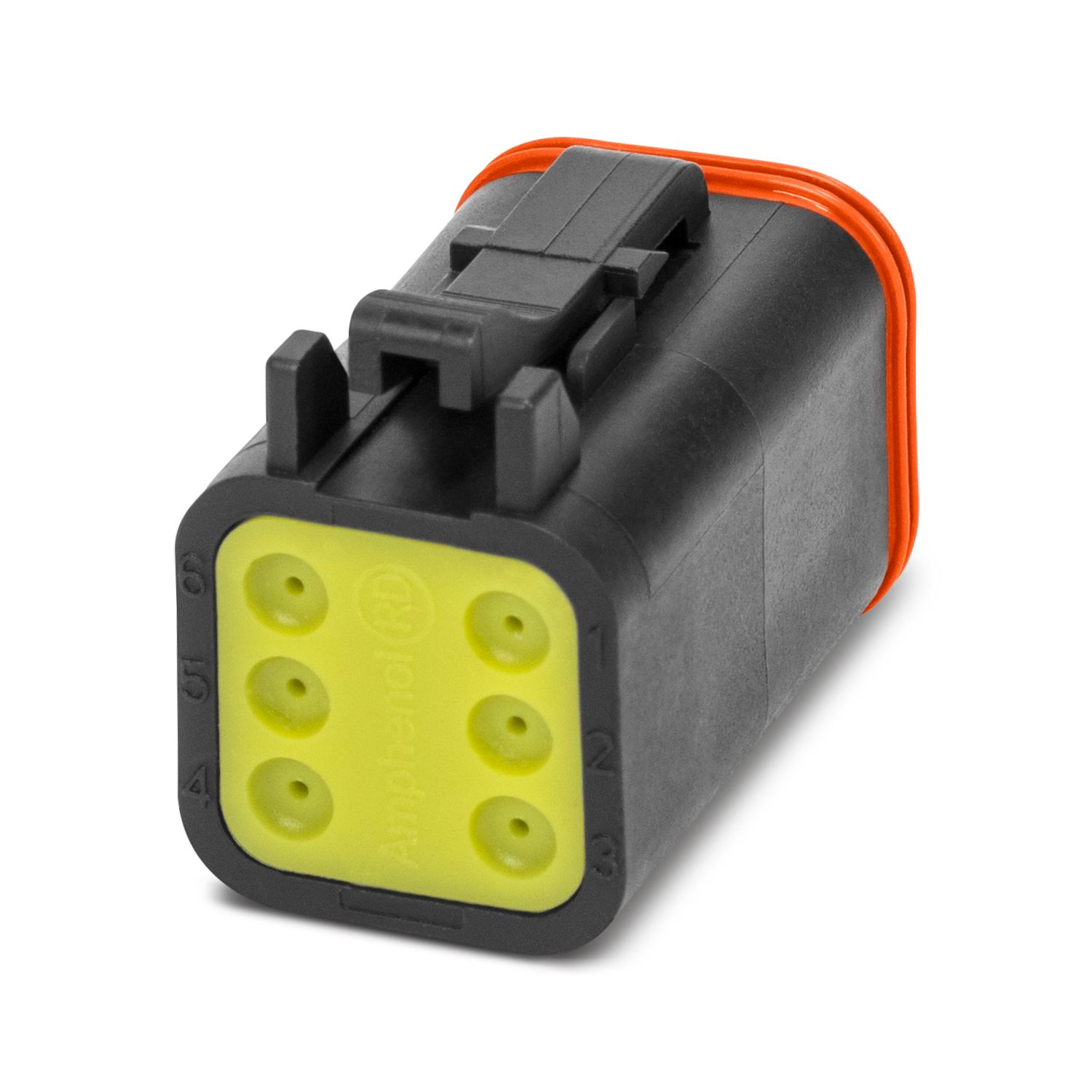

SACC-AT06-6S-RS-IV
-
Connector housing
1520771
Connector housing, Crimp contacts
Product details
| General | AT06-6S-RD01BLK |
| General | Use with Size 16 socket contacts |
| Series | AT06 |
| Contact numbering | 1 - 6 |
| Shielded | no |
| Specific dielectric strength | 1500 V AC (Less than 2 mA current leakage) |
| Insulation resistance | 1000 MΩ (at 25 °C) |
| Nominal voltage UN | 50 V AC/DC (IEC rating) |
| Nominal current IN | 13 A (MAX) |
| Connection method | Crimp contacts |
| Dimensional drawing |
|
| Width | 18.3 mm |
| Height | 23.1 mm |
| Length | 31.2 mm |
| Seal material Profile gasket | Silicon |
| Seal material Cable seal | Silicon |
| Housing material | PA-GF |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Specific dielectric strength | 1500 V AC (Less than 2 mA current leakage) |
| Ambient conditions | |
| Degree of protection | IP68 (in mated condition) |
| IP69K (in mated condition) | |
| Ambient temperature (operation) | -55 °C ... 125 °C |
