IV-SP16
-
Filler plug
1521037
Filler plug
Product details
| General | A114017 |
| General | Use with AT series housings for Size 16 socket and pin contacts |
| General | Filler (seal) plugs are used to seal unused circuit cavities |
| Nominal voltage UN | 50 V AC/DC (IEC rating) |

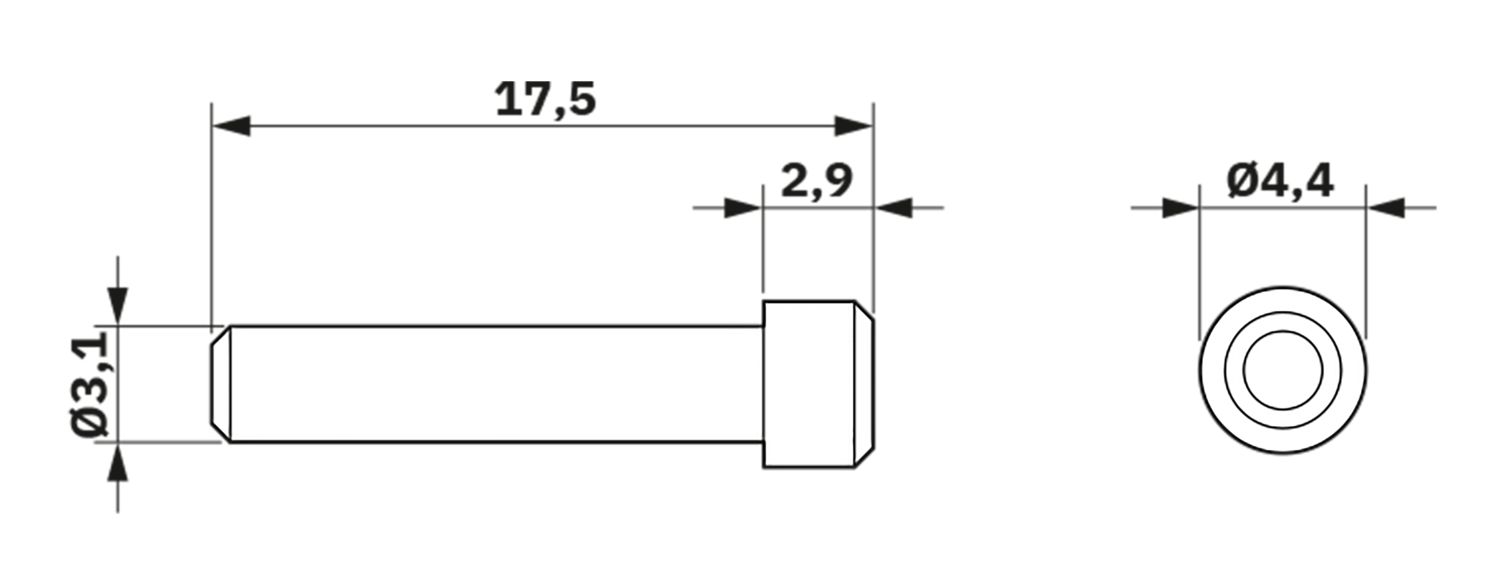

| Dimensional drawing |
|
| Length | 17.5 mm |
| Diameter | 3.1 mm |
| Material | Silicon |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 125 °C |
