Plug-in test system

Easy and safe testing - The FAME test system simplifies the regular testing of power switchgear.
View FAME Features
Plug-in test system
  1. Home
  2. Plug-in test system

FAME is the innovative, modular test system for all measuring and testing tasks in network protection technology for medium- and high-voltage switching devices. You can now perform manual testing operations automatically, safely, and more quickly.

View products
PXR

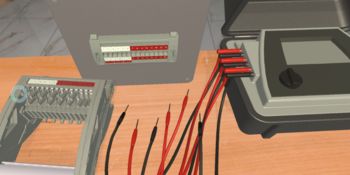

FAME Plug-in test system digital demo
FAME is the innovative, modular test system for all measuring and testing tasks in system protection technology for medium- and high-voltage switching devices.
Launch demo
FAME Plug-in test system digital demo

Your advantages

  • Easy and time-saving, thanks to functional grouping of switching operations
  • Maximum safety, thanks to leading and automatic transformer short circuit
  • Cost-effective, thanks to the tailored, modular design and use of standardized accessories
  • Space-saving, thanks to compact plug-in test sockets and offset test socket arrangement
  • Flexible, thanks to freedom of choice between wall or DIN rail mounting when using the standardized CLIPLINE complete system accessories
  • Safety for users, thanks to integrated touch protection
  • Clear, thanks to the large-surface marking options and easily identifiable switching states
  • Capable of 600V and 30A
3D View

FAME SL and FAME rack product visualization

View our photorealistic FAME SL and FAME rack products with full interactive 360°-control. For a more immersive experience, including viewing the product in your space, use the Enhanced 3D View link below.

Enhanced 3D View

FAME – the system properties With the FAME plug-in test system, you get the right solution for your application: the modular system can either be directly integrated into the control cabinet panel or used as a DIN rail version. Other properties at a glance:

Modular design
Automatic leading transformer short circuit
Easy star point bridging directly in the plug-in test socket
Also flexible for DIN rail mounting
Safety in mind

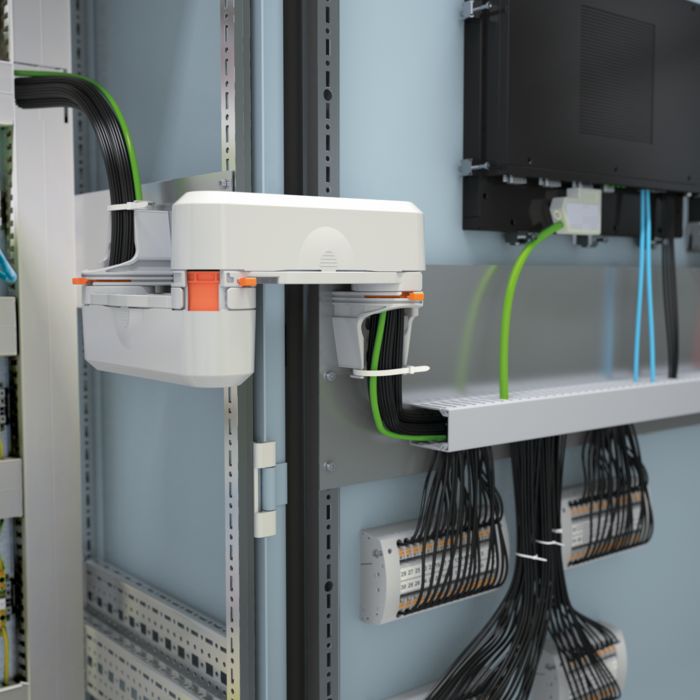

Safe cable routing for plug-in test sockets

Safe conductor routing to the FAME plug-in test system in the control cabinet door

Safe cable routing for plug-in test sockets

For control and operating purposes, protective devices and control devices should be accessible from the outside and are therefore mounted in the door. This is why some devices and plug-in test sockets such as FAME are mounted in the control cabinet door in protection and control engineering applications.

This additionally saves space in the control cabinet. These components can now be wired in an even easier and more flexible way with the CGS cable guiding system from Phoenix Contact.

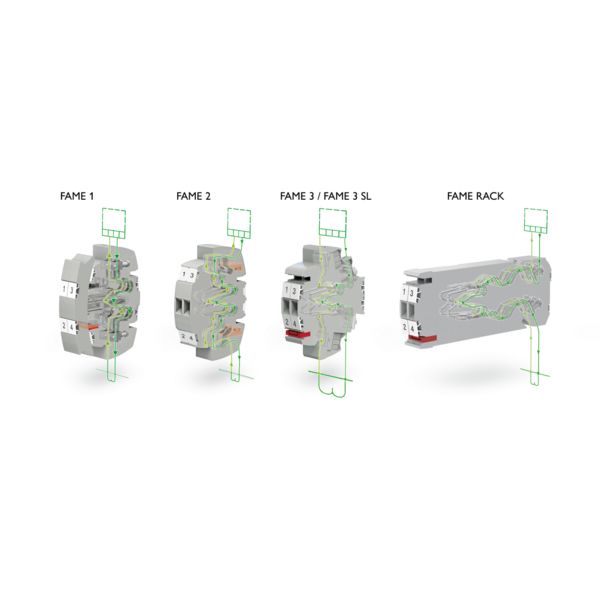

Plug-in test systems in comparison FAME is available in five different versions. Choose the solution that is best for your area of application.

Plug-in test systems in comparison

FAME 1

  • Plug-in test system with operating plug and transformer short circuit in the plug-in test socket.

FAME 2

  • Plug-in test system without operating plug and transformer short circuit in the test plug.

FAME 3 and FAME 3 SL

  • Plug-in test system without operating plug and transformer short circuit in the plug-in test socket.

FAME RACK

  • Plug-in test system without operating plug and transformer short circuit in the plug-in test socket.

FAME 3: Fast and modular test plug system

FAME 3 is the test plug system without operating plug and transformer short-circuit in the test socket strip.

FAME 2: Test plug system

FAME 2 is a test plug system without operating plug and transformer short-circuit in the test plug.
