SYS N4 120/240S - Surge protection device

SYS N4 120/240S - Surge protection device

2800705

Indoor/outdoor lightning current arrester and TVSS system for 120/240 single/split phase

Product details

Expand all Collapse all

Product description

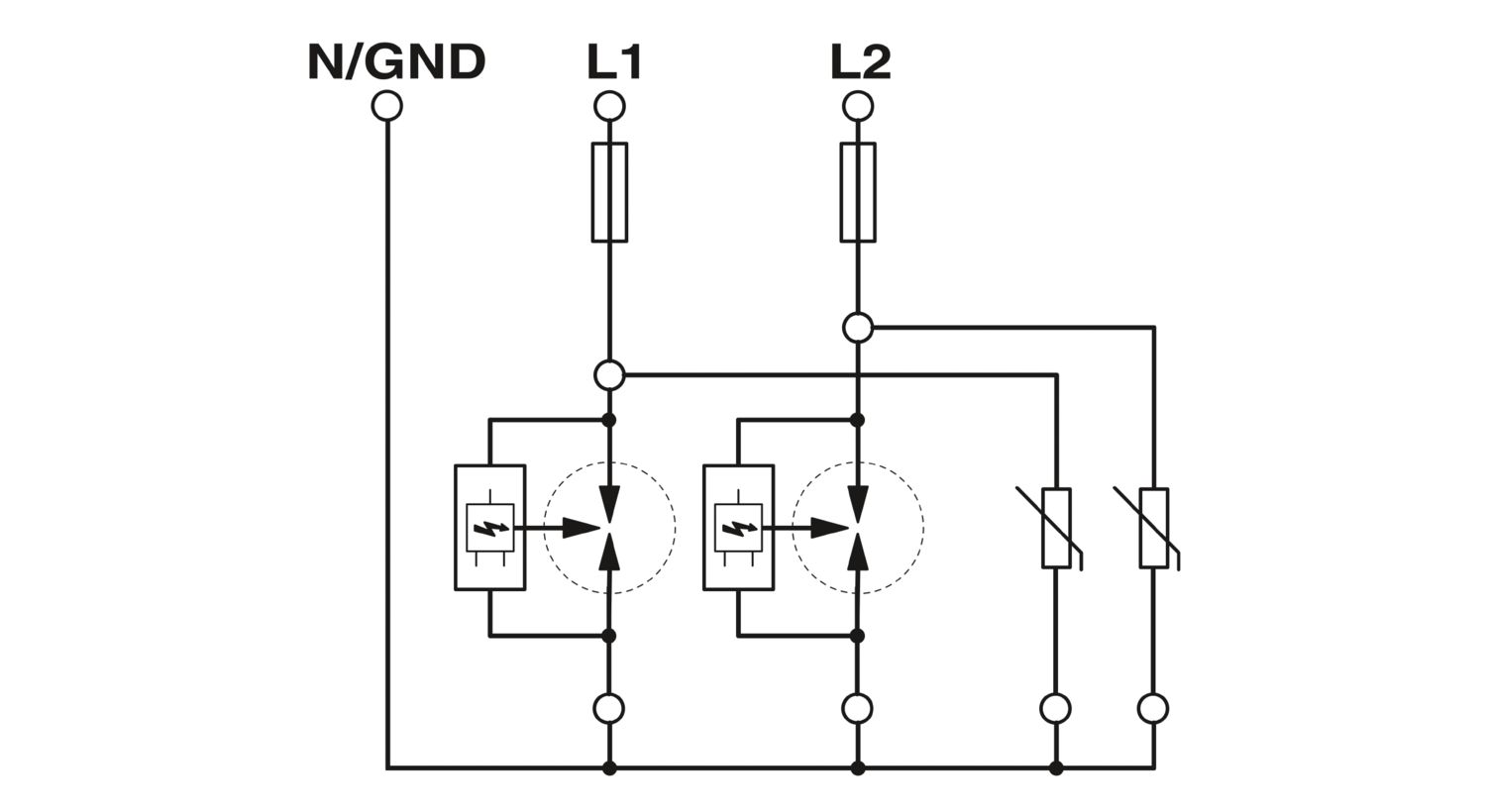

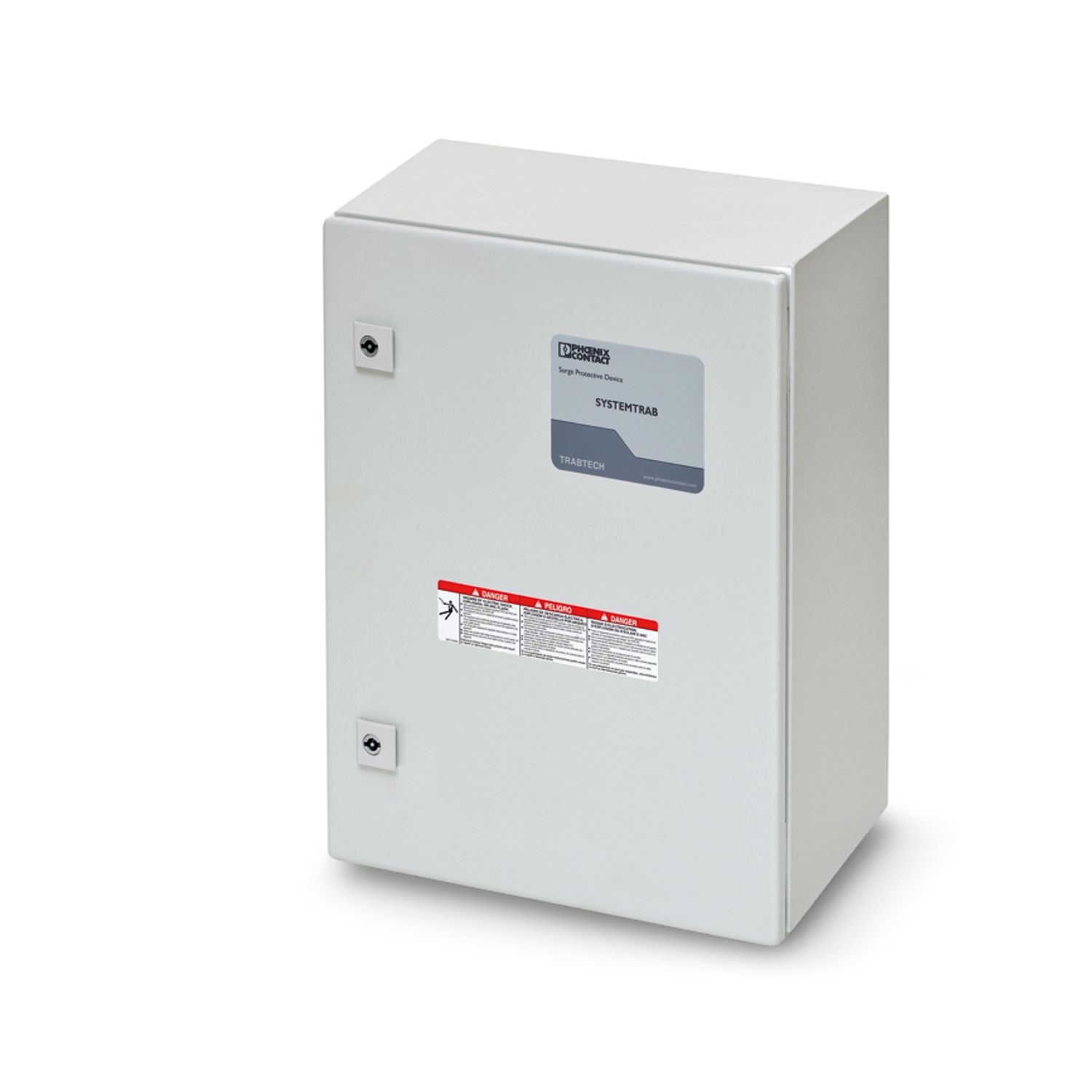

Combination lightning current arrester and TVSS for 120/240 V single/split phase. Components are housed in an IP66/NEMA 4 cabinet.

Technical data

Product properties

Product type	Surge protection for NEMA power supply units
IEC test classification	I + II
EN type	T1
Type	Housing for surface mounting
Surge protection fault message	Remote indication contact

Electrical properties

Nominal voltage U_N	< 240 V
Fuse	200 kA VSP100, 100 A, 200 kAIC (IR)
General
Power Systems	120/240 V Single/Split Phase

Connection data

Conductor cross section flexible min.	16 mm²
Conductor cross section flexible max.	35 mm²
Conductor cross section, rigid min.	10 mm²
Conductor cross section, rigid max.	50 mm²
Connection method	Screw connection
Conductor cross section flexible min.	0.14 mm²
Conductor cross section flexible max.	1.5 mm²
Conductor cross section, rigid min.	0.14 mm²
Conductor cross section, rigid max.	1.5 mm²

Dimensions

Width	400 mm
Height	500 mm
Depth	210 mm

Material specifications

Housing material	Steel

Protective circuit

Nominal voltage U_N	120/240 V AC (Split phase)
Maximum continuous voltage U_C	275 V AC
Follow current interrupt rating I_fi	50 kA
Response time t_A	≤ 25 ns

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP66/NEMA 4
Ambient temperature (operation)	-40 °C ... 80 °C

Approvals

UL specifications
Short-circuit current rating (SCCR)	50 kA
UL type	type 2
Nominal discharge current I_n	20 kA
Maximum Surge Current per Phase	50 kA
Nominal voltage	120/240 V AC (Split phase)
Power distribution system	Split phase

Standards and regulations

Standards
Standards/regulations	ANSI/UL 1449:2014 Ed.4+R:17MAR2016
		IEC 60643-1
		EN 61643-11
		CAN/CSA-C22.2 No. 8:2013 Ed.5

Mounting

Mounting type	Surface/Panel mounting

Commercial data

Item number	2800705
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CL01
Product key	CL1621
Catalog page	Page 68 (C-6-2013)
GTIN	4046356642910
Weight per piece (including packing)	222.22 g
Weight per piece (excluding packing)	222.22 g
Customs tariff number	85363090
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27171202

ETIM

ETIM 8.0

EC000941

UNSPSC

UNSPSC 21.0

39121620

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Not applicable (Not qualified for the European market)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
		4-Nonylphenol, branched and linear (CAS: n/a)
		Lead (CAS: 7439-92-1)
