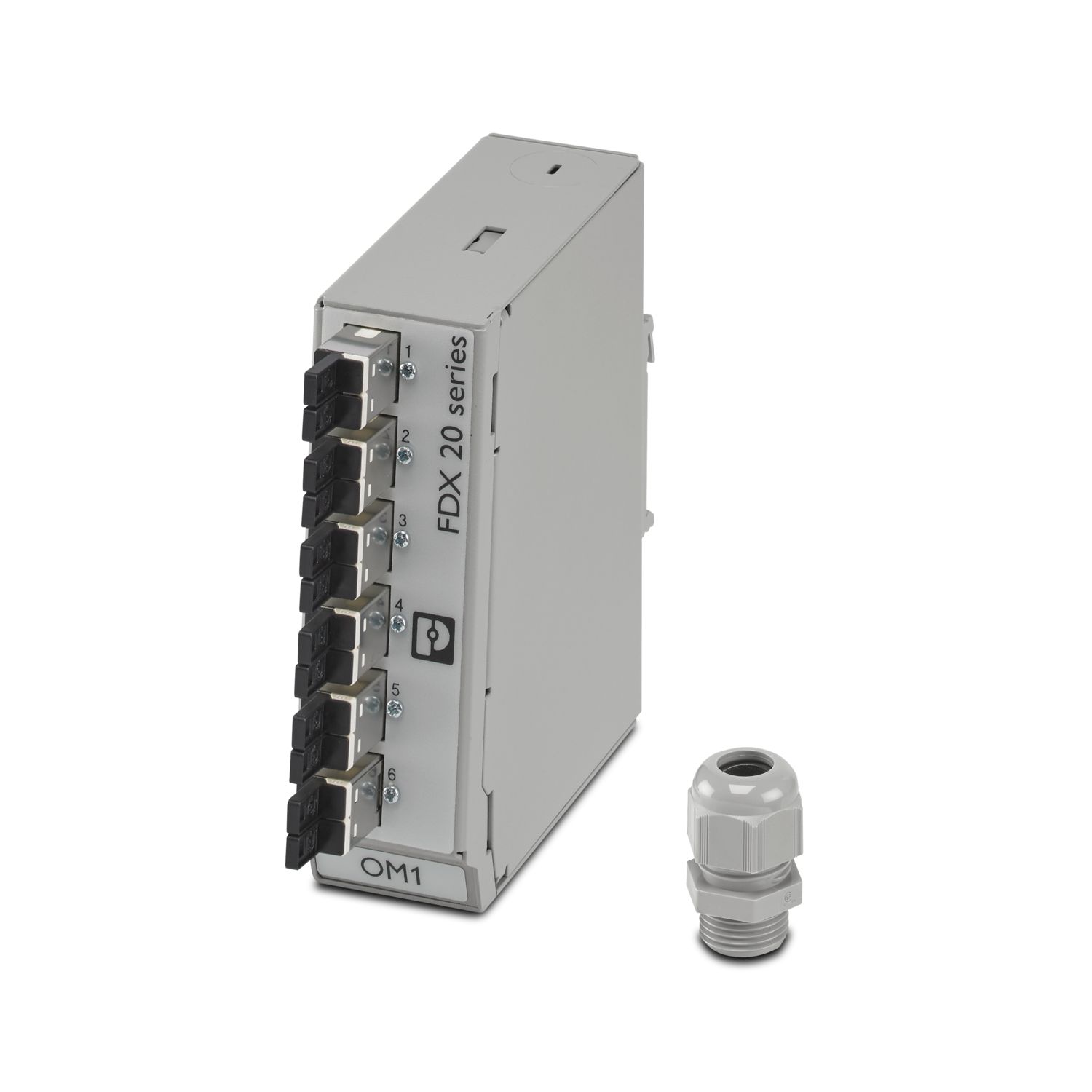

FDX 20 series DIN rail splice box, assembled with 6x E2000® duplex coupling, fully assembled and ready for splicing with pre-assembled 900 µm pigtails (OM1 UPC). Splice holder, for separately available shrink and crimp splicing protection, on a patented splice comb made from powder-coated sheet steel. Cable insertion possible via cable gland from above or below. Housing, 2-part, prepared for DIN rail mounting through the rear-side adapter. The adapter can also be mounted on the side.
Scope of supply:
DIN rail housing with integrated splice comb (mounted), assembled with 6x E2000® duplex coupling, 12x pigtail (OS2 APC), 1x splice holder, 1x cable gland (M20x1.5)
