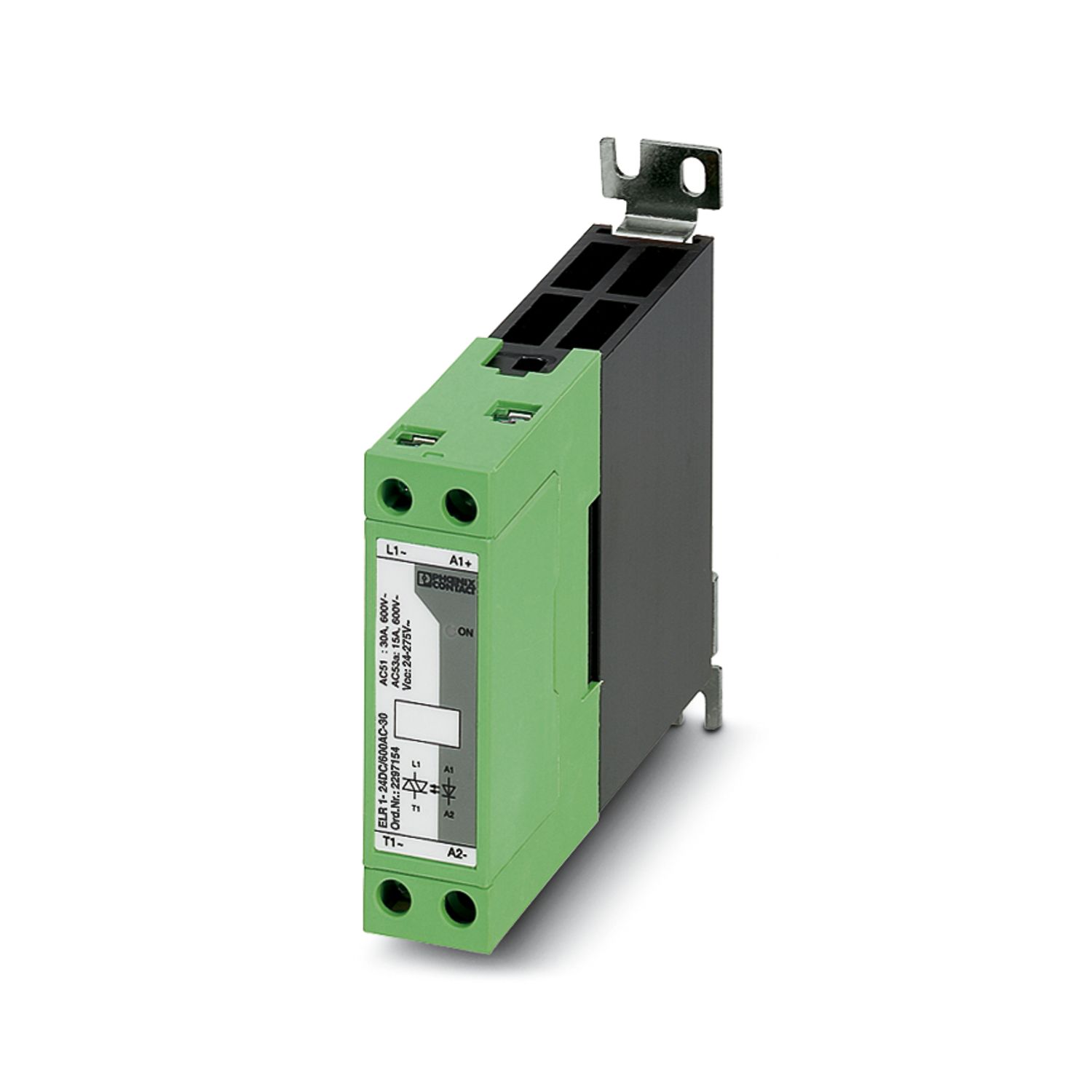

ELR 1- 24DC/600AC-30
-
Solid-state contactor
2297154
Single-phase solid-state contactor, input voltage: 24 V DC, output current: 30 A, zero voltage switch

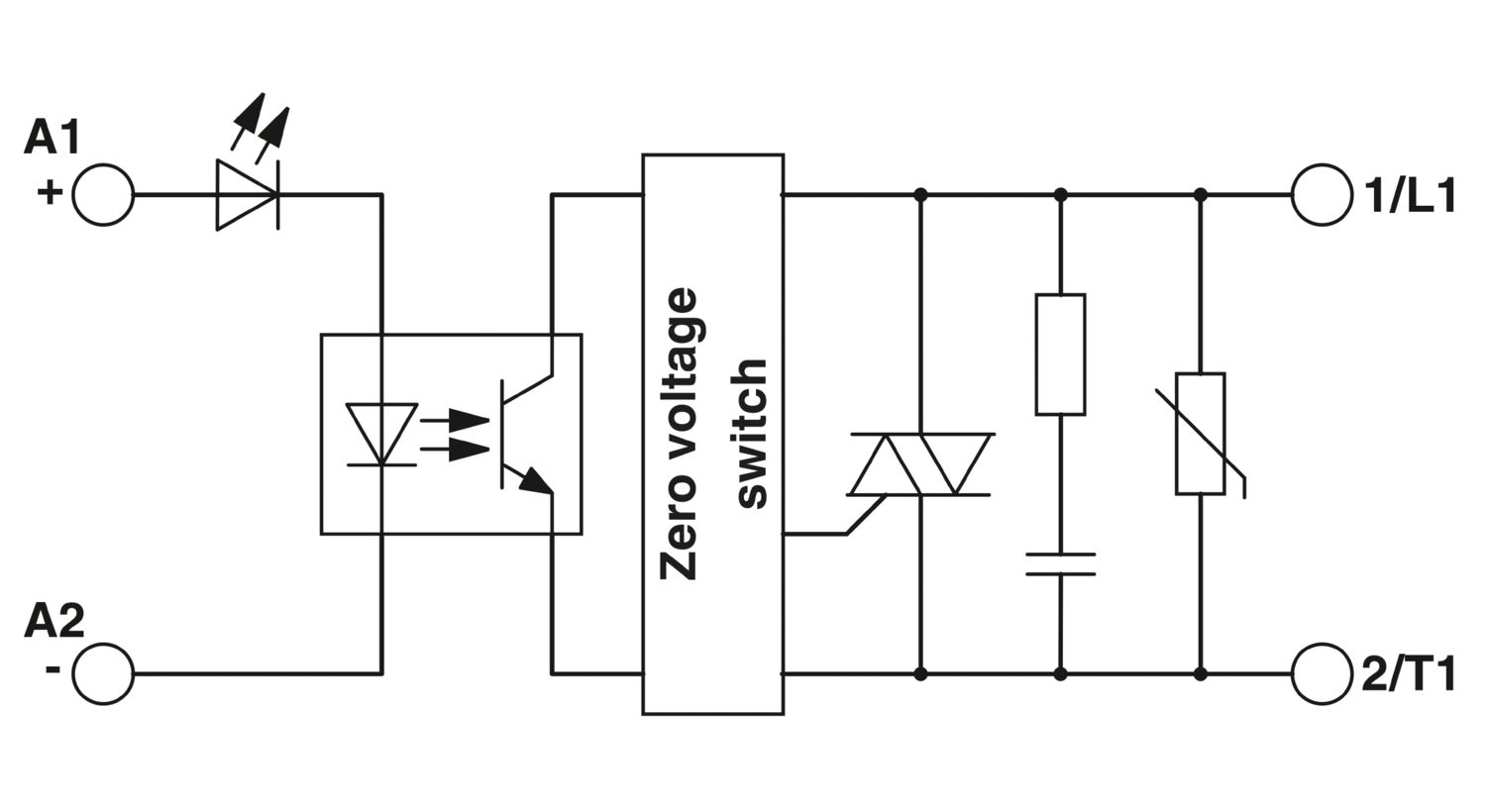

Product details
| Product type | Solid-state contactor |
| Number of phases | 1 |
| Maximum power dissipation for nominal condition | 48 W |
| Mains type | 1-phase |
| Test voltage (Input/output) | 4 kVrms (50 Hz, 60 s) |
| Control | |
| Input name | Control input |
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 4 V DC ... 32 V DC |
| Rated actuating current IC | approx. 12 mA |
| Switching threshold | ≤ 1 V DC (“0” signal) |
| ≥ 4 V DC (“1” signal) | |
| Operating voltage display | Green LED |
| Transmission frequency | 25 Hz |
| Load output | |
| Operating voltage range | 42 V AC ... 660 V AC |
| Rated operating current at AC-51 | 30 A |
| Rated operating current at AC-53a | 15 A |
| Peak offstate voltage | 1200 V |
| Mains frequency | 45 Hz |
| 65 Hz | |
| Load current range | 150 mA ... 30 A (see to derating) |
| Leakage current | < 3 mA (In off state) |
| Residual voltage | < 1.6 V |
| Surge current | 400 A (t = 10 ms) |
| Max. load value | 1800 A2s |
| Protective circuit | RCV circuit |
| Phase angle cos phi min | 0.5 |
| Control circuits | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M4 |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 20 ... 14 |
| Load circuit | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M4 |
| Conductor cross section rigid | 0.5 mm² ... 4 mm² |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| Conductor cross section AWG | 20 ... 12 |
| Operating voltage display | Green LED |
| Width | 22.5 mm |
| Height | 103 mm |
| Depth | 103 mm |
| Color | green (RAL 6021) |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards/regulations | |
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 61000-4-6 | |
| EN 55011 | |
| Mounting type | DIN rail mounting |
| Assembly note | can be aligned with ≥ 22.5 mm spacing |
| Mounting position | Vertical (horizontal DIN rail) |
| Item number | 2297154 |
| Packing unit | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | C471 |
| Product key | DK7123 |
| GTIN | 4046356132039 |
| Weight per piece (including packing) | 256.4 g |
| Weight per piece (excluding packing) | 256.4 g |
| Customs tariff number | 85362010 |
| Country of origin | MT |
Your advantages
High switching frequency
Wear and bounce-free
24 V DC and 230 V AC input voltage versions
