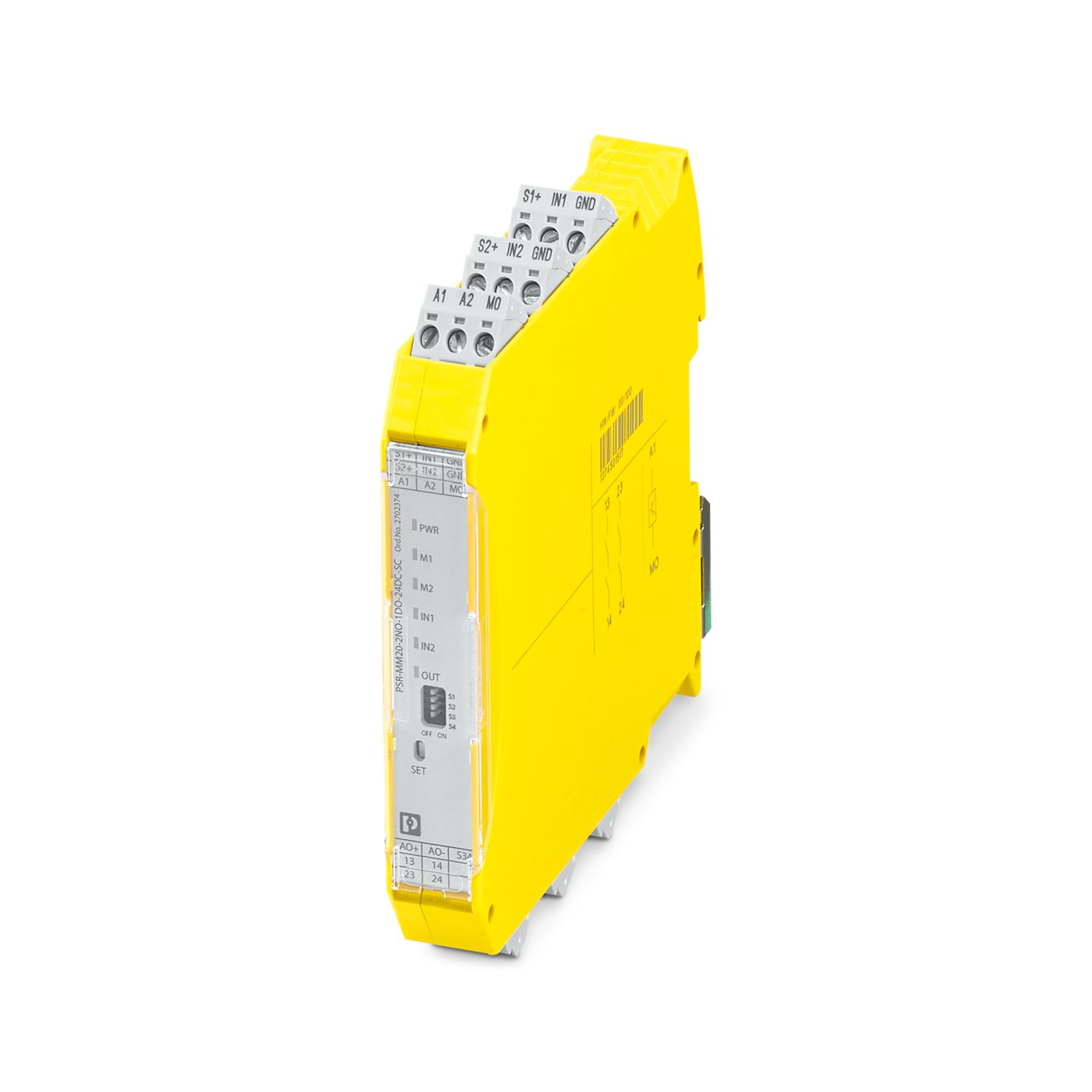

PSR-MM20-2NO-1DO-24DC-SC - Safety relay module - 2702374

Product properties

Product type	Safety device
Application	Zero-speed safety relay
Application		Over-speed safety relay
Control	2-channel
Relay type	Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Insulation characteristics
Overvoltage category	III
Degree of pollution	2
Times
Typical response time	See Section “Maximum response time”.
Response time	See Section “Maximum response time”.
Typical release time	25 ms (When requested via A1; applicative deactivation via A1/A2 is not permitted)
Restart time	2.5 s (Boot time)
Start pulse length	min. 200 ms (manual start)
Start pulse length		max. 10 s (manual start)

Electrical properties

Maximum power dissipation for nominal condition	4 W (U_B = 30 V, I_L = 6 A)
Nominal operating mode	100% operating factor
Interfaces	Proximity switches
Rated insulation voltage	250 V
Rated surge voltage/insulation	See section “Insulation coordination”
Supply
Designation	A1/A2
Rated control circuit supply voltage U_S	24 V DC -20 % / +25 %
Rated control supply current I_S	typ. 70 mA
Power consumption at U_S	typ. 1.7 W
Inrush current	< 6 A (Δt = 1 ms at U_s)
Filter time	1 ms (in the event of voltage dips)
Protective circuit	Serial protection against polarity reversal; Suppressor diode
Protection	1 A (slow-blow, required externally)

Input data

Digital: Start circuit (S34)
Description of the input	Non-safety-related, current sinking
Description of the input		IEC 61131-2 type 3
Number of inputs	1
Input voltage range "0" signal	0 V DC ... 5 V DC
Input voltage range "1" signal	11 V DC ... 30 V DC
Input current range "0" signal	0 mA ... 1.5 mA
Max. permissible overall conductor resistance	150 Ω
Protective circuit	Suppressor diode
Current consumption	typ. 3 mA (at U_S)
Measurement
Input name	Proximity switch inputs
Input name		IN1, IN2
Description of the input	Safety-related, current sinking/current sourcing
Number of inputs	2
Input voltage range "0" signal	Open circuit
Input voltage range "1" signal	15 V ... 30 V (Current, inward)
Input voltage range "1" signal		0 V ... 2 V (Current, outward)
Input current range "0" signal	Open circuit
Precision	± 2 % (in reference to the parameterized limit value)
Limit frequency	max. 4 kHz (Minimum pulse duration: 45 µs)
Limit frequency		min. 0.1 Hz (Minimum pulse duration: 45 µs)
Duty factor	5 % ... 95 % (Push-pull operation, observe minimum pulse duration)
Duty factor		55 % ... 95 % (PNP operation, observe minimum pulse duration)
Hysteresis	20 %
Pulse width	45 µs (Minimum pulse duration)
Max. permissible overall conductor resistance	150 Ω
Protective circuit	Suppressor diode
Current consumption	5 mA (Current, inward)
Current consumption		-7 mA (Current, outward)

Output data

Relay: Enabling current paths (13/14, 23/24)
Output description	1 N/O contact each, safety-related, floating
Number of outputs	2
Contact switching type	2 enabling current paths
Contact material	AgSnO₂
Switching voltage	min. 12 V AC/DC
Switching voltage		max. 250 V AC/DC
Switching capacity	min. 36 mW
Inrush current	min. 3 mA
Inrush current		max. 6 A
Limiting continuous current	6 A
Sq. Total current	72 A² (observe derating)
Switching frequency	0.1 Hz
Mechanical service life	10x 10⁶ cycles
Output fuse	6 A gL/gG
Signal: Digital signal output (MO)
Output description	non-safety-related
Output description		PNP
Number of outputs	1
Voltage	approx. 22 V DC (U_s - 2 V)
Current	max. 100 mA
Maximum inrush current	500 mA (Δt = 10 ms at U_s)
Ohmic load	min. 240 Ω
Switching frequency	0.1 Hz (Resistive load)
Protective circuit	Suppressor diode
Short-circuit protection	Yes
Discharging circuit	no
Signal: Analog signal output (AO+, AO-)
Output description	non-safety-related
		Analog
		Requirements on the connecting cables: 2-conductor, shielded, twisted pair
Number of outputs	1
Output voltage range	0 V ... 10.5 V ±100 mV (The tolerance may be greater under EMC influence)
Load/output load voltage output	≥ 2 kΩ
Protective circuit	Suppressor diode
Short-circuit protection	Yes
Signal rise time	1 ms (R_L = 2 kΩ, jump from 0 V to 10.5 V)
Control interval time	10 ms
Control time	max. 200 ms (For an accuracy of ±500 mV)
Control time		max. 400 ms (For an accuracy of ±100 mV)
Max. permissible overall conductor resistance	6 Ω

Connection data

Connection technology
pluggable	yes
Conductor connection
Connection method	Screw connection
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Stripping length	7 mm
Screw thread	M3
Tightening torque	0.5 Nm ... 0.6 Nm

Signaling

Status display	6 x LED (green, red)
Operating voltage display	1 x LED (green, red)

Dimensions

Width	17.5 mm
Height	112.2 mm
Depth	114.5 mm

Material specifications

Color (Housing)	yellow (RAL 1018)
Housing material	PA

Characteristics

Safety data
Stop category	0
Safety data: EN ISO 13849
Category	4
Performance level (PL)	e (4 A DC13, 1095 switching cycles/year or 2 A DC13, 2 A AC15, 8760 switching cycles/year)
Safety data: IEC 61508 - High demand
Safety Integrity Level (SIL)	3
Safety data: EN IEC 62061
Safety Integrity Level (SIL)	3

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-25 °C ... 60 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Maximum altitude	≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport)	75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation)	75 % (on average, 85% infrequently, non-condensing)
Shock	15g
Vibration (operation)	10 Hz ... 150 Hz, 2g

Approvals

CE
Certificate	CE-compliant

Mounting

Mounting type	DIN rail mounting
Assembly note	See derating curve
Mounting position	vertical or horizontal

Item number	2702374
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DN01
Product key	DNA241
GTIN	4055626138145
Weight per piece (including packing)	170.81 g
Weight per piece (excluding packing)	140.88 g
Customs tariff number	85371098
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
		2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
