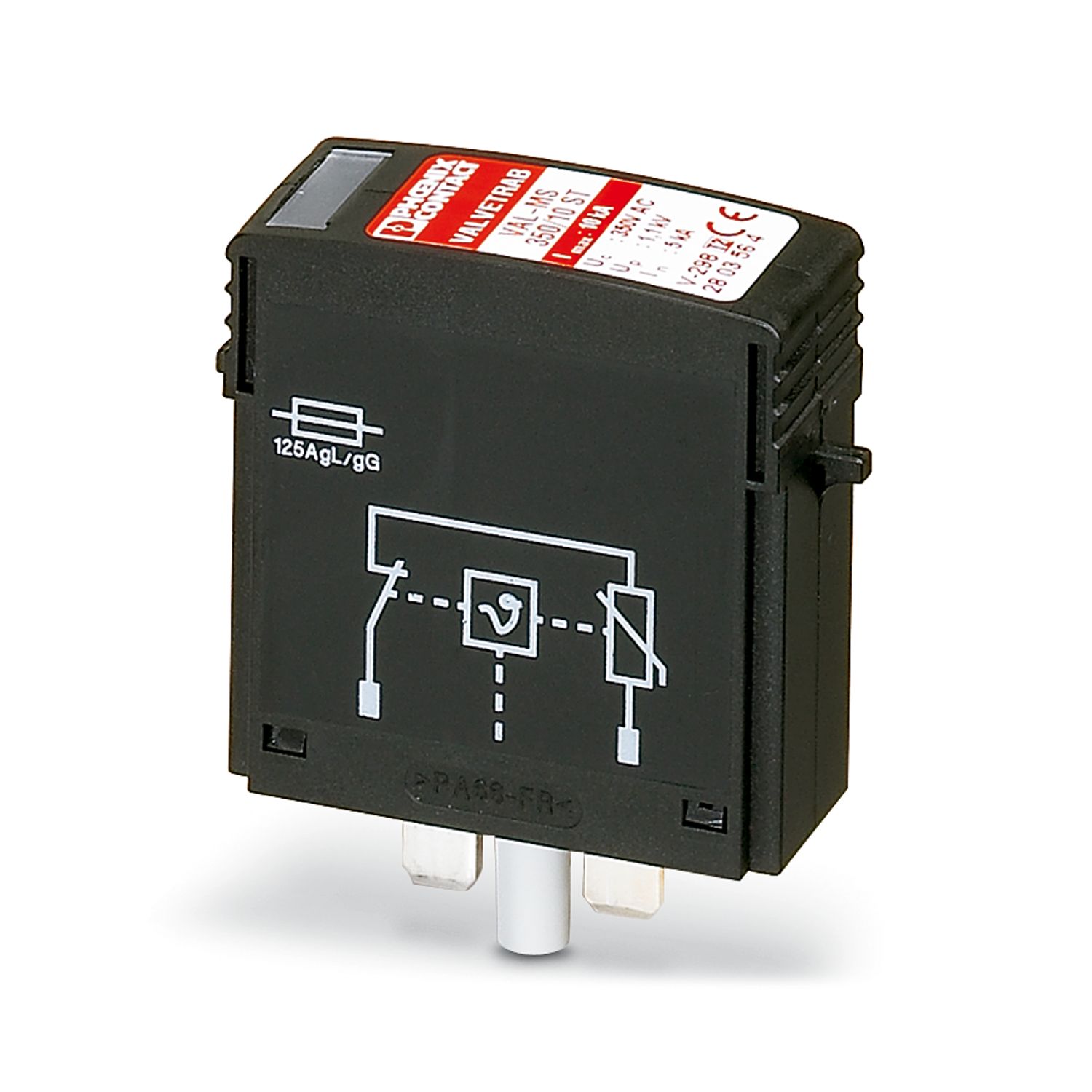

VAL-MS 350/10 ST - Type 2 surge protection plug

VAL-MS 350/10 ST - Type 2 surge protection plug

2803564

Type 2 surge protection plug with a varistor for VAL-MS base element, thermal monitoring, visual fault warning.

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Replacement plug
Product family	VALVETRAB MS
IEC test classification	II
IEC test classification		T2
EN type	T2
Type	DIN rail module, two-section, divisible
Number of positions	1
Surge protection fault message	optical

Electrical properties

Nominal frequency f_N	50 Hz (60 Hz)
Nominal voltage U_N	240 V AC

Connection data

Connection method	FLASHTRAB/VALVETRAB plug-in system connector

Dimensions

Width	17.7 mm
Height	52.4 mm
Depth	54.5 mm
Horizontal pitch	1 Div.

Material specifications

Flammability rating according to UL 94	V0
Housing material	PA

Protective circuit

Direction of action	1L-N/PE
Nominal voltage U_N	240 V AC
Nominal frequency f_N	50 Hz (60 Hz)
Maximum continuous voltage U_C	350 V AC
Residual current I_PE	≤ 340 µA
Standby power consumption P_C	≤ 120 mVA
Nominal discharge current I_n (8/20) µs	5 kA
Maximum discharge current I_max (8/20) µs	10 kA
Voltage protection level U_p	≤ 1.2 kV
Response time t_A	≤ 25 ns
Max. backup fuse with branch wiring	125 A (gL/gG)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 80 °C

Standards and regulations

Air clearances and creepage distances
Standards/regulations	EN 60664-1 / EN 61643-11
Standards
Standards/regulations	IEC 61643-1
Standards/regulations		EN 61643-11/A11
Standards/specifications	IEC 61643-1
Note	2005
Standards/specifications	EN 61643-11/A11
Note	2007

Mounting

Mounting type	on base element

Commercial data

Item number	2803564
Packing unit	1 pc
Note	Made to order (non-returnable)
Sales key	NULL
Product key	CL1323
Catalog page	Page 40 (TT-2011)
GTIN	4046356301930
Weight per piece (including packing)	54.5 g
Weight per piece (excluding packing)	53 g
Customs tariff number	85363010
Country of origin	DE

Environmental product compliance

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

ZBN 18,LGS:ERDE - Marker for terminal blocks 2749589
ZBN 18,LGS:L1-N,ERDE - Marker for terminal blocks 2749576
ZBN 18:UNBEDRUCKT - Zack marker strip 2809128
B-STIFT - Marker pen 1051993
