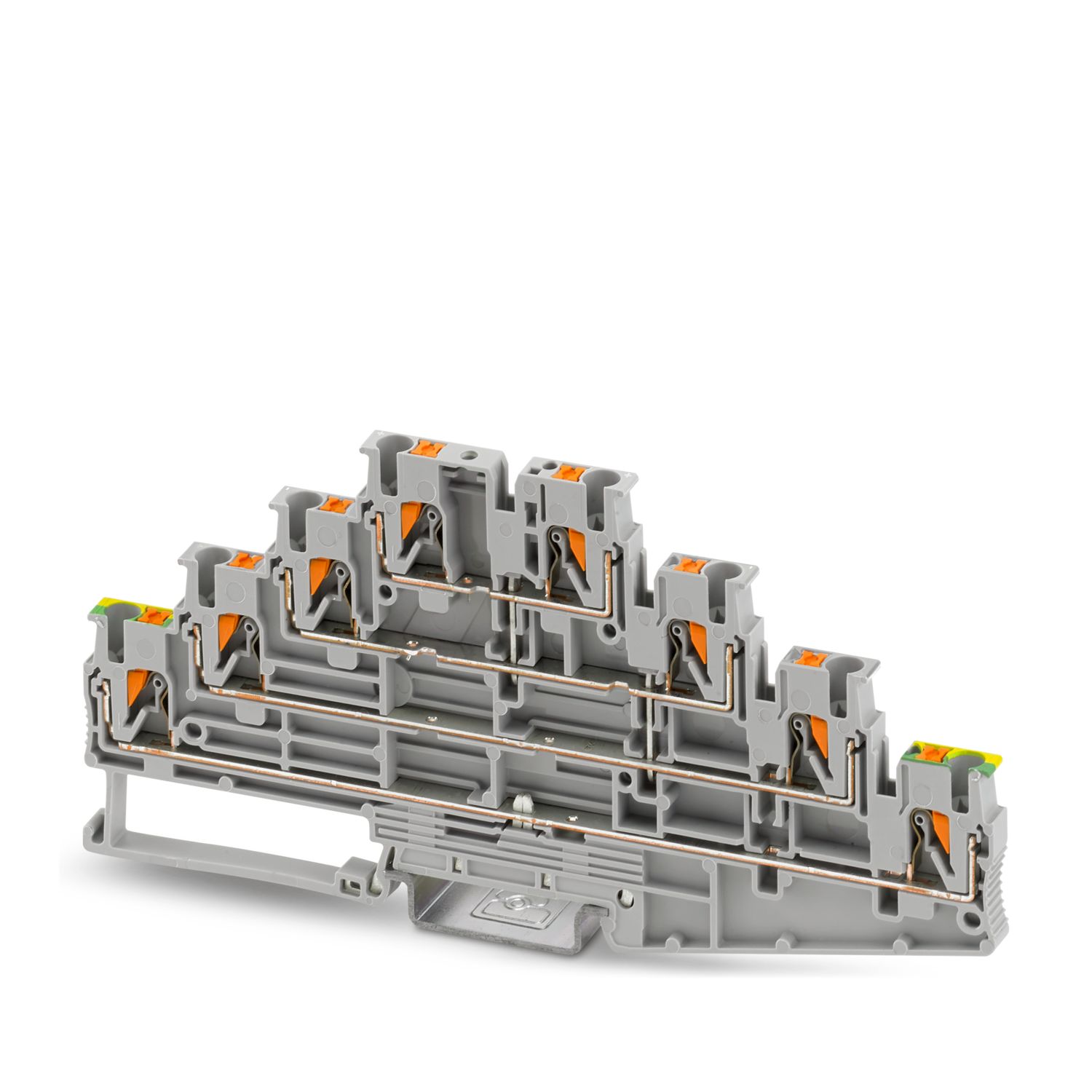

Multi-level terminal block, number of connections: 8, number of positions: 4, connection method: Push-in connection, Protective conductor connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, connection method: Push-in connection, Feed-through level, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Use group B | ||||
| 300 V | 18 A | 26 - 12 | ||
| PE connection | 26 - 12 | |||
| Use group C | ||||
| 300 V | 18 A | 26 - 12 | ||
| PE connection | 26 - 12 | |||
| Use group F | ||||
| 500 V | 18 A | 26 - 12 | ||
| Use group D | ||||
| 600 V | 5 A | 26 - 12 | ||
| PE connection | 26 - 12 | |||
