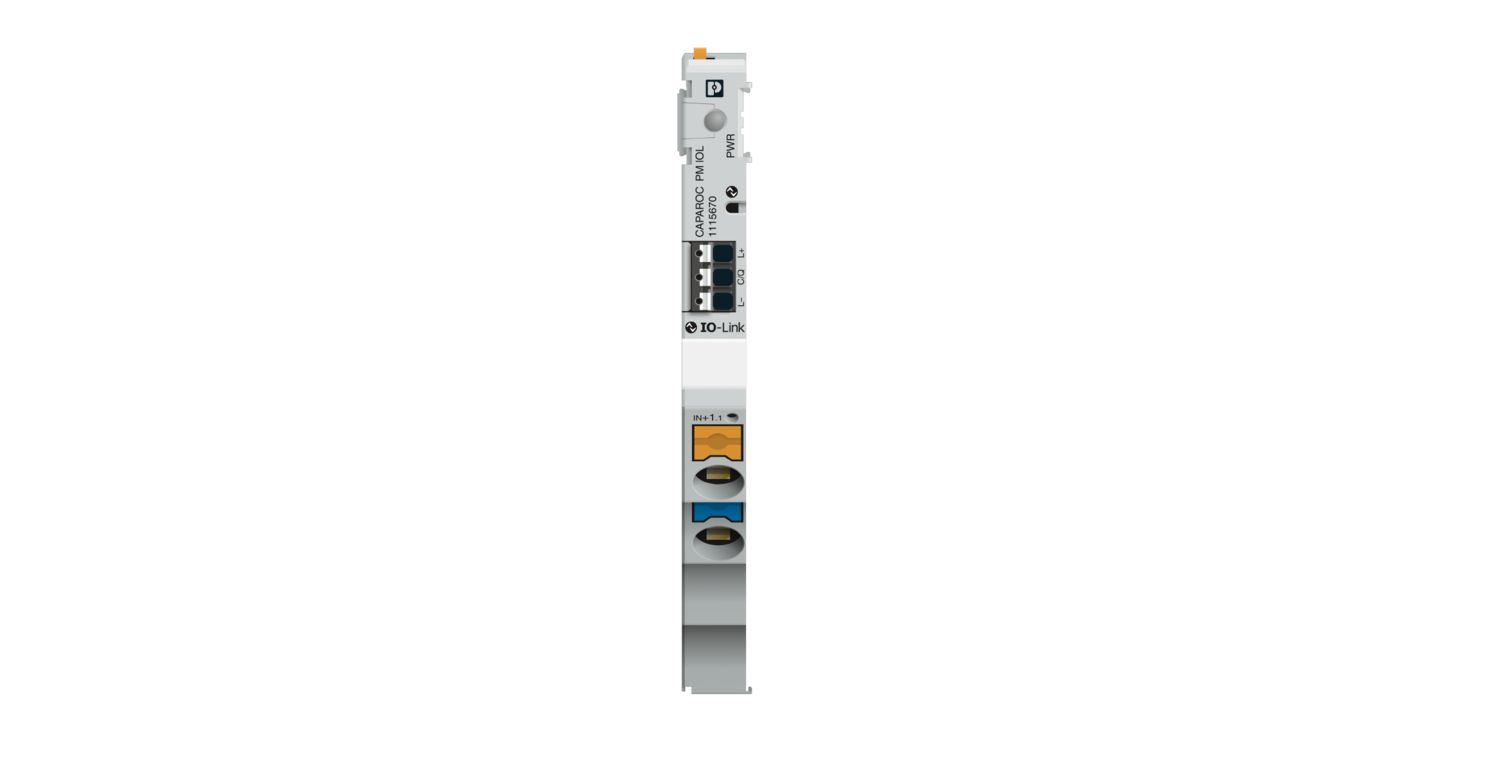

CAPAROC PM IOL
-
Feed-in module
1115670
Power module with IO-Link interface for supplying the CAPAROC circuit breaker system with 12 or 24 V DC for up to 20 channels. For DIN rail installation via the CAPAROC current rails.
This product needs further products for operation.
Mandatory accessories
Free download available.
Downloads
Product details

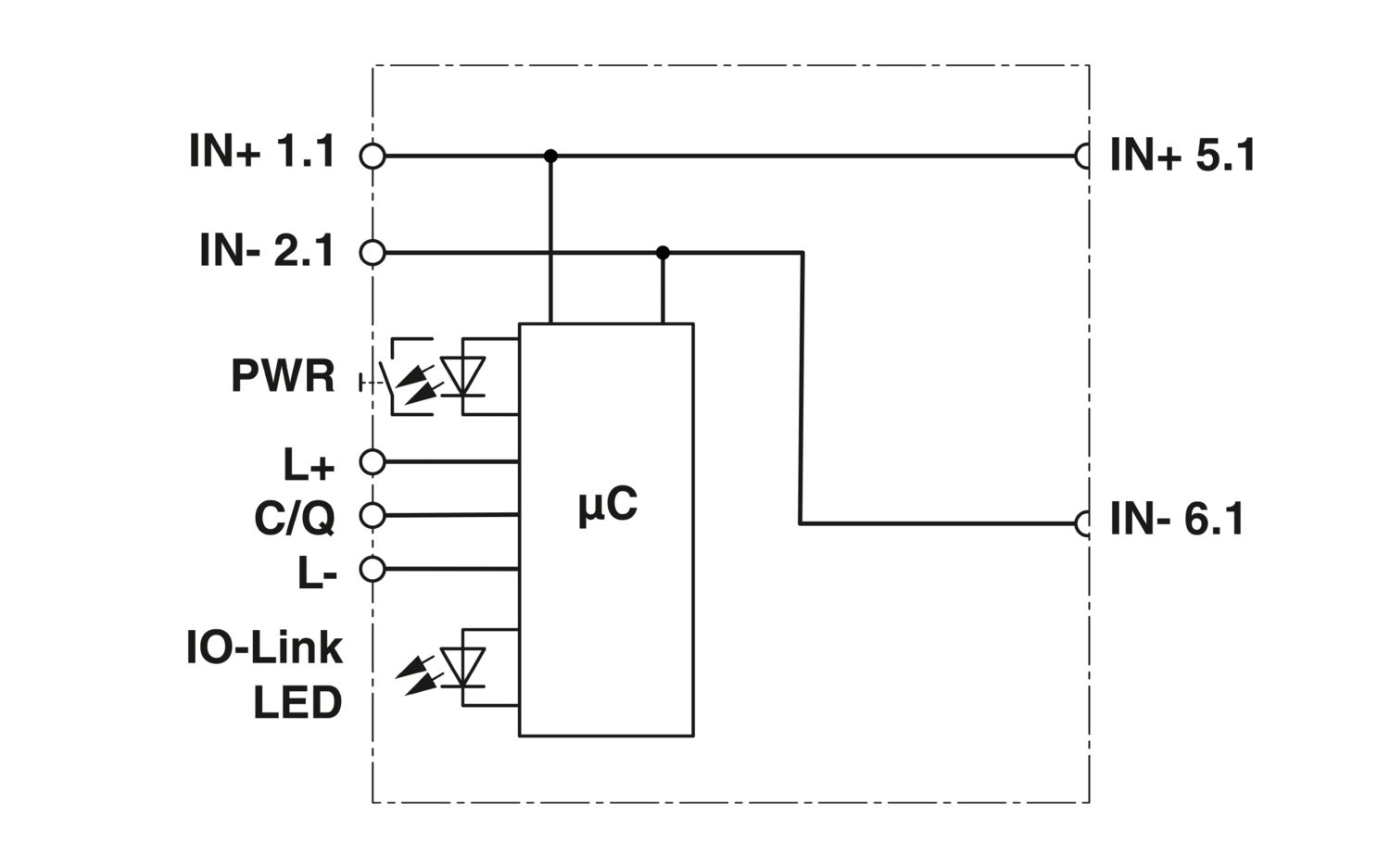

Product type | Device circuit breakers |
Product family | CAPAROC |
Type | Plug-in module |
Number of slots | 2 |
Insulation characteristics | |
Protection class | III |
Pollution degree | 2 |
General | |
Operating voltage | 10 V DC ... 30 V DC |
Rated voltage | 12 V DC |
24 V DC | |
Rated current IN | 45 A DC (Total current input) |
Tripping method | E (electronic) |
Feedback resistance | max. 35 V DC |
Dielectric strength | 35 V DC (Load circuit) |
Efficiency | > 99 % |
Closed circuit current I0 | typ. 12 mA (no load at 24 V) |
Power dissipation | typ. 0.27 W (no load at 24 V) |
< 1.5 W (in nominal operation at 24 V and 45 A) | |
Temperature derating | 45 A (Total current at 40°C) |
30 A (Total current at 65 °C) | |
MTBF (IEC 61709, SN 29500) | 13826266.85 h (at 25 °C with 21 % load) |
5534344.72 h (at 40°C with 34.25% load) | |
687502.35 h (at 65°C with 100% load) | |
Voltage drop | 5 mV (at 10 A) |
Load circuit | |
Undervoltage switch-off | ≤ 9.2 V DC (active) |
≥ 10.2 V DC (inactive) | |
Overvoltage switch-off | ≥ 30.5 V DC (active) |
≤ 29.5 V DC (inactive) | |
Reset | |
Current consumption | typ. 0.5 mA (at 24 V DC) |
Pulse length | ≥ 50 ms |
Main circuit IN+ | |
Connection method | Push-in connection |
Stripping length | 18 mm |
Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Conductor cross section AWG | 20 ... 8 |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 16 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
Main circuit IN- | |
Connection method | Push-in connection |
Stripping length | 18 mm |
Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Conductor cross section AWG | 20 ... 8 |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 16 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
IO-Link | |
Connection method | Push-in connection |
Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 0.75 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² |
IO-Link | |
Interface type | IO-Link |
Specification | V1.1 |
Reverse polarity protection | yes |
Transmission speed | 230.4 kbps (COM3) |
Cycle Time | min. 20 ms |
Amount of process data | 8 Byte (Input data) |
3 Byte (Output data) | |
Nominal voltage for I/O supply | 24 V DC |
Current consumption | typ. 30 mA (IO-Link L+) |
IO-Link Vendor ID | 176dec, 00 B0hex |
Maximum system extension | ≤ 20 (Channels) |
IO-Link LED off | off (No communication) |
IO-Link LED green | flashing (IO-Link connection exists) |
Power (PWR) LED green | lit (Supply voltage OK) |
Power (PWR) LED red | lit (Supply voltage outside the nominal range) |
flashing (System topology changed) |
Dimensional drawing |
|
Width | 12.4 mm |
Height | 132.4 mm |
Depth | 111.3 mm (incl. DIN rail 7.5 mm) |
Color | light gray (RAL 7035) |
Material | PA 6 |
PA 6 | |
PA 6 | |
PC | |
Flammability rating according to UL 94 | V-0 |
Ambient conditions | |
Degree of protection | IP20 |
Ambient temperature (operation) | -30 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Altitude | ≤ 4000 m (amsl) |
Humidity test | 96 h, 95 % RH, 40 °C |
Shock (operation) | 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) |
25g (6 ms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock) | |
Vibration (operation) | 5g (10 ... 150 Hz / 10 cycles / axis / X, Y, Z) |
UL approval | |
Identification | UL/C-UL Listed UL 508 |
Corrosive gas test | |
Identification | ISA S71.04.2013 G3 Harsh Group A |
Standards/specifications | EN 61000-6-2 |
Note | EMC – Immunity for industrial areas |
Standards/specifications | EN 61000-6-3 |
Note | EMC – Emission for residential, business and commercial properties and small operations |
Standards/specifications | EN 60068-2-78 |
Note | Environmental influences – Moisture and heat, constant |
Standards/specifications | EN 50178 |
Note | Equipping power installations with electronic equipment |
Mounting type | pluggable onto CAPAROC CR… current rail |
Item number | 1115670 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Sales key | CL11 |
Product key | CLA231 |
GTIN | 4063151040901 |
Weight per piece (including packing) | 129.3 g |
Weight per piece (excluding packing) | 92 g |
Customs tariff number | 85363030 |
Country of origin | DE |
ECLASS
ECLASS-11.0 | 27140401 |
ECLASS-12.0 | 27140401 |
ECLASS-13.0 | 27140401 |
ETIM
ETIM 9.0 | EC003538 |
UNSPSC
UNSPSC 21.0 | 39121400 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes |
Exemption | 7(a), 7(c)-I |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7) | |
SCIP | 5447ed30-a625-4150-837d-b57361cfdd27 |
Compatible products
-
CAPAROC E1 12-24DC/1-4A - Electronic circuit breaker 1115415
-
CAPAROC E1 12-24DC/1-10A - Electronic circuit breaker 1115649
-
CAPAROC E1 12-24DC/1A - Electronic circuit breaker 1157288
-
CAPAROC E1 12-24DC/2A - Electronic circuit breaker 1157290
-
CAPAROC E1 12-24DC/4A - Electronic circuit breaker 1157285
-
CAPAROC E1 12-24DC/6A - Electronic circuit breaker 1157286
-
CAPAROC E1 12-24DC/8A - Electronic circuit breaker 1157279
-
CAPAROC E1 12-24DC/10A - Electronic circuit breaker 1157284
-
CAPAROC E2 12-24DC/1-4A - Electronic circuit breaker 1115655
-
CAPAROC E2 12-24DC/2-10A - Electronic circuit breaker 1110984
-
CAPAROC E4 12-24DC/1-4A - Electronic circuit breaker 1115657
-
CAPAROC E4 12-24DC/1-10A - Electronic circuit breaker 1115658
-
CAPAROC PD 0V - Potential distributors 1110987
-
USB IO-LINK ADAPTER - Programming adapter 1533311
-
UC-TM 12 - Marker for terminal blocks 0819194
-
UCT-TM 12 - Marker for terminal blocks 0829144
-
CAPAROC CR EXT20 - Busbar 1115674
-
CAPAROC CR EXT8 - Busbar 1110990
-
CAPAROC CR EXT4 - Busbar 1110991
-
CAPAROC CR CON - Metal part 1270955
Your advantages
The benchmark that you can customize by selecting single signals and resets all the way to IO-Link and PROFINET communication
Particularly easy operation for everyone with tool-free assembly, direct feed-in to the busbar, and clear operating states
Exceptionally easy design-in with the comprehensive digital data packet
