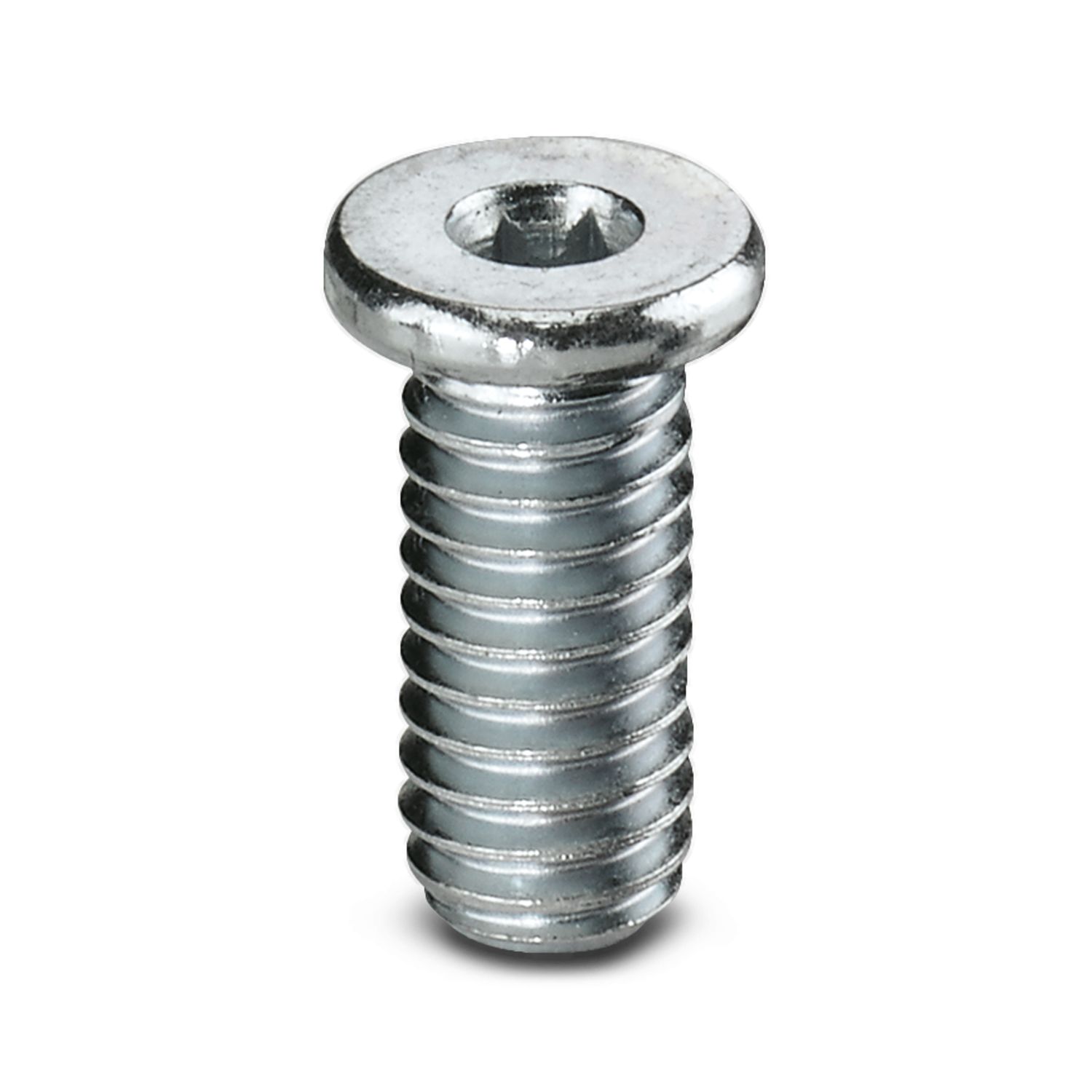

Pan head screw, for fixing DIN rails, extra-flat screw head, with hexagonal socket head, WAF 3
Product details
Product type
Mounting material

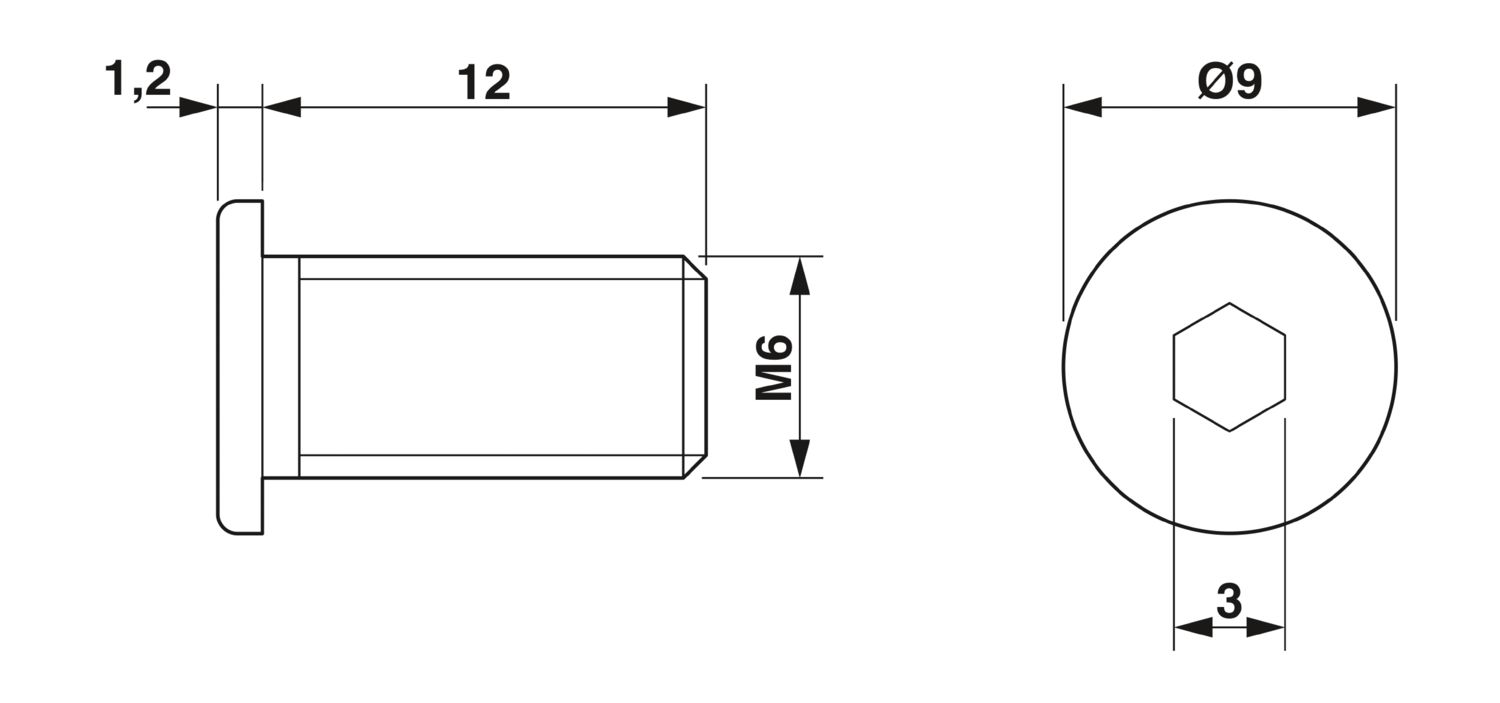

Dimensional drawing
Width
9 mm
Height
12.8 mm
Length
12.8 mm
Material
Steel
Item number
0807025
Packing unit
100 pc
Minimum order quantity
100 pc
Sales key
BE07
Product key
BE711Z
GTIN
4017918138769
Weight per piece (including packing)
2.592 g
Weight per piece (excluding packing)
2.43 g
Customs tariff number
73181552
Country of origin
DE
ECLASS
ECLASS-13.0
27141190
ETIM
ETIM 9.0
EC002848
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(a), 6(a)-I
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
