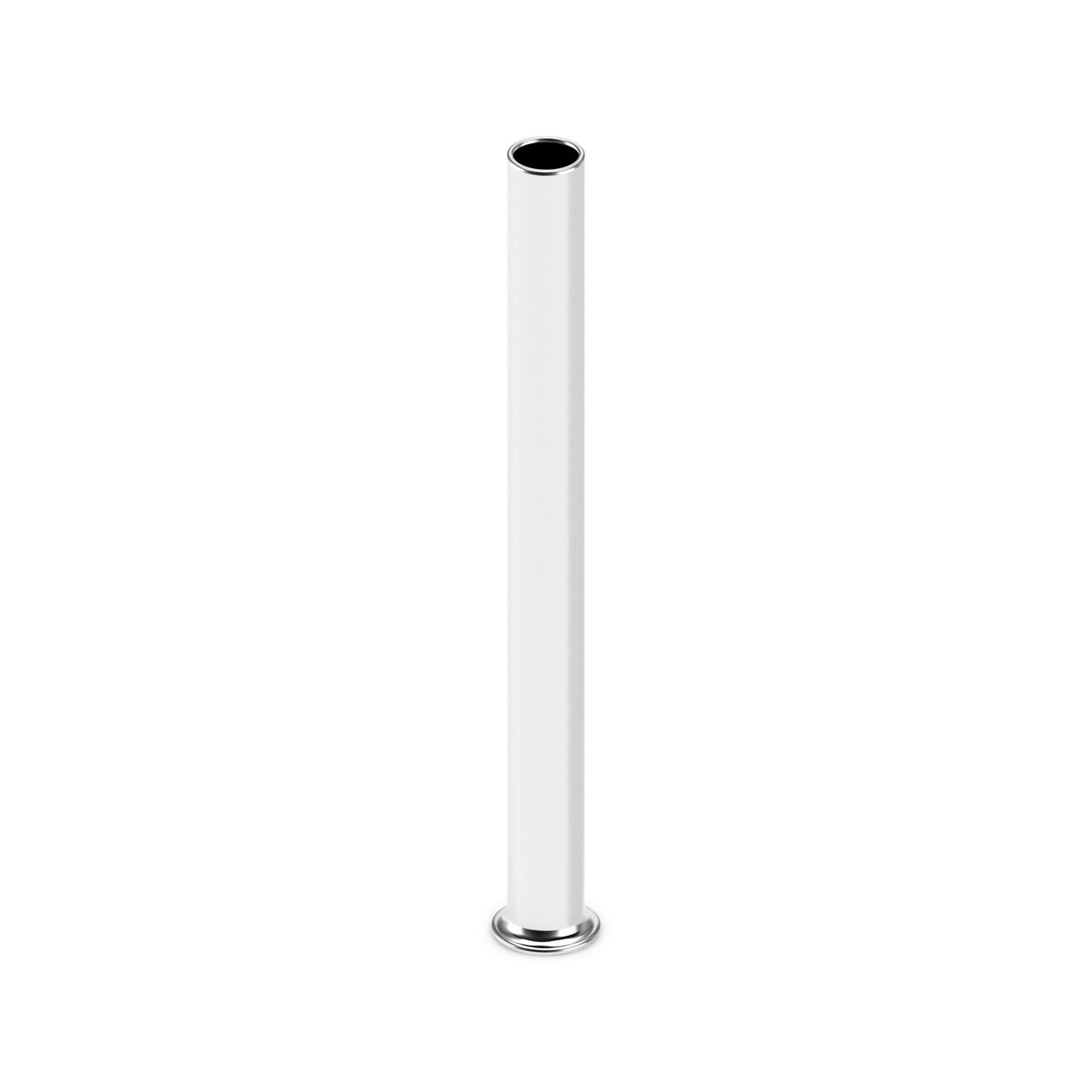

A 1,5-20
-
Ferrule
2100073
Ferrule, Length contact range: 20 mm, sleeve length: 20 mm, color: silver-colored
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | Made from soft tin-plated electrolytic copper |
| Correspond to the requirements of DIN 46228-1 and UL 486F in terms of size | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG max. | 16 |
| Stripping length | 20 mm |
| Dimensional drawing |
|
| Sleeve length | 20 mm |
| Length contact range | 20 mm |
| Maximum stripping length | 20 mm |
| Ferrule diameter | 1.7 mm |
| Sleeve wall thickness | 0.15 mm |
| Inner dimensions of the insulating collar | 2.8 mm |
| Color | silver-colored |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 20 mm |
Your advantages
The insulation reliability of close connections is increased and the splicing of wires is prevented
