PLC-VT - Feed-through terminal block

2296870

VARIOFACE feed-through terminal block (2-conductor screw connection), for PLC-INTERFACE universal series

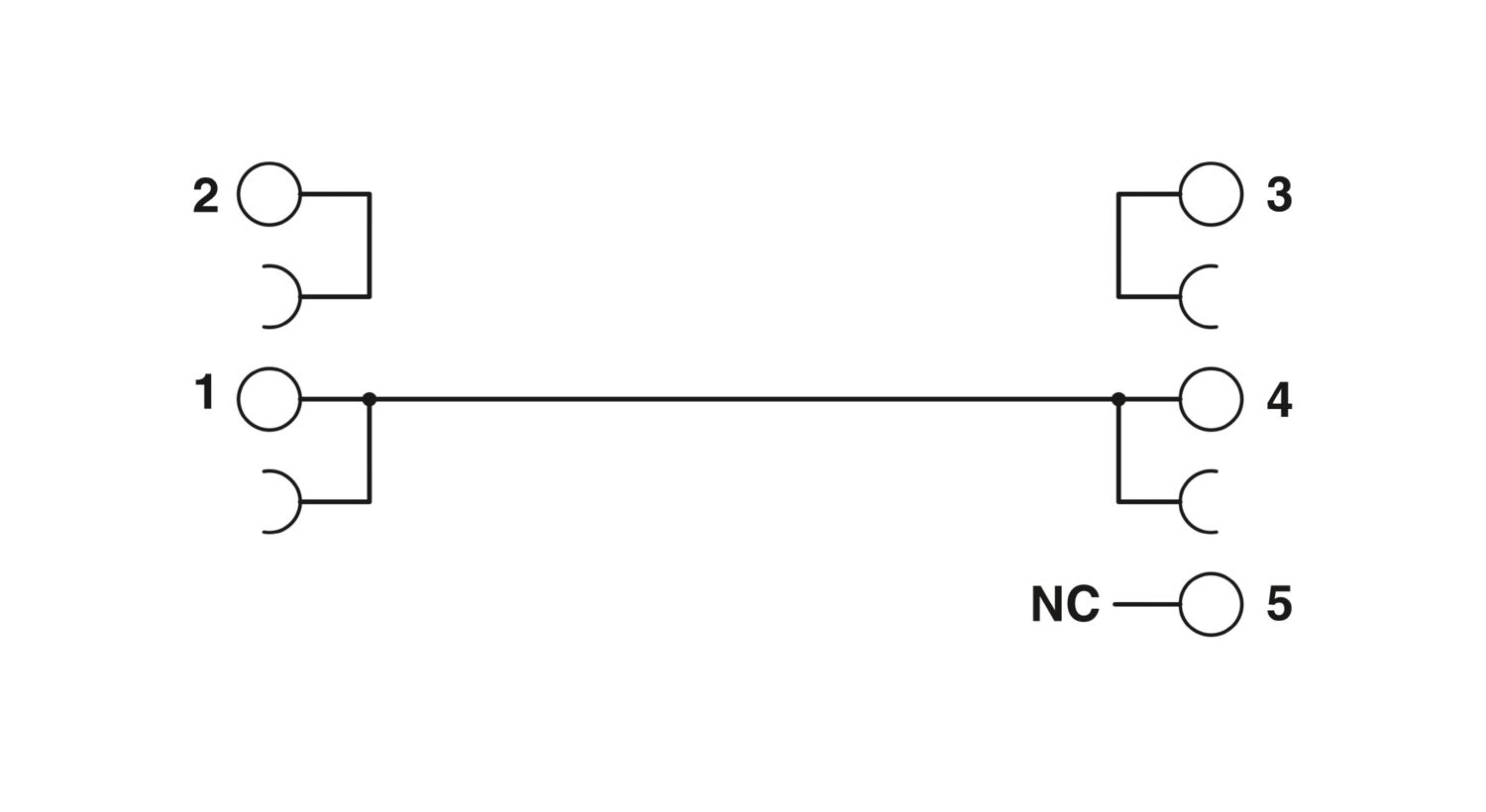

Product details

Notes on operation	The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates).
Notes on operation	Ensure that the supply voltage of the device has a common reference potential.
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product type	Feed-through terminal block
Product family	PLC-INTERFACE
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	III
Pollution degree	2

Operating voltage (AC/DC)	250 V AC/DC
Current (per branch)	≤ 6 A
Current (per connection terminal block with bridge shaft)	≤ 6 A
Air clearances and creepage distances
Rated insulation voltage	300 V
Rated surge voltage	4 kV

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Number of positions	5
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12

Status display present	no

Item dimensions
Width	6.2 mm
Height	80 mm
Depth	94 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0

Ambient conditions
Degree of protection (Module)	IP20
Degree of protection (Installation location)	≥ IP54
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
Shipbuilding approval
Certificate	TAE0000196
Shipbuilding data
Temperature	D
Humidity	A
Vibration	B/C
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2296870
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	C421
Product key	DK21D6
Catalog page	Page 532 (C-5-2019)
GTIN	4017918821609
Weight per piece (including packing)	34.02 g
Weight per piece (excluding packing)	27.6 g
Customs tariff number	85369010
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	220 V	6 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	220 V	6 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Can be combined with PLC-INTERFACE universal series

With LED as an option

Signal path with additional potential level for free assignment (2-conductor connection)

ECLASS-12.0	27371692
ECLASS-13.0	27371692

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
