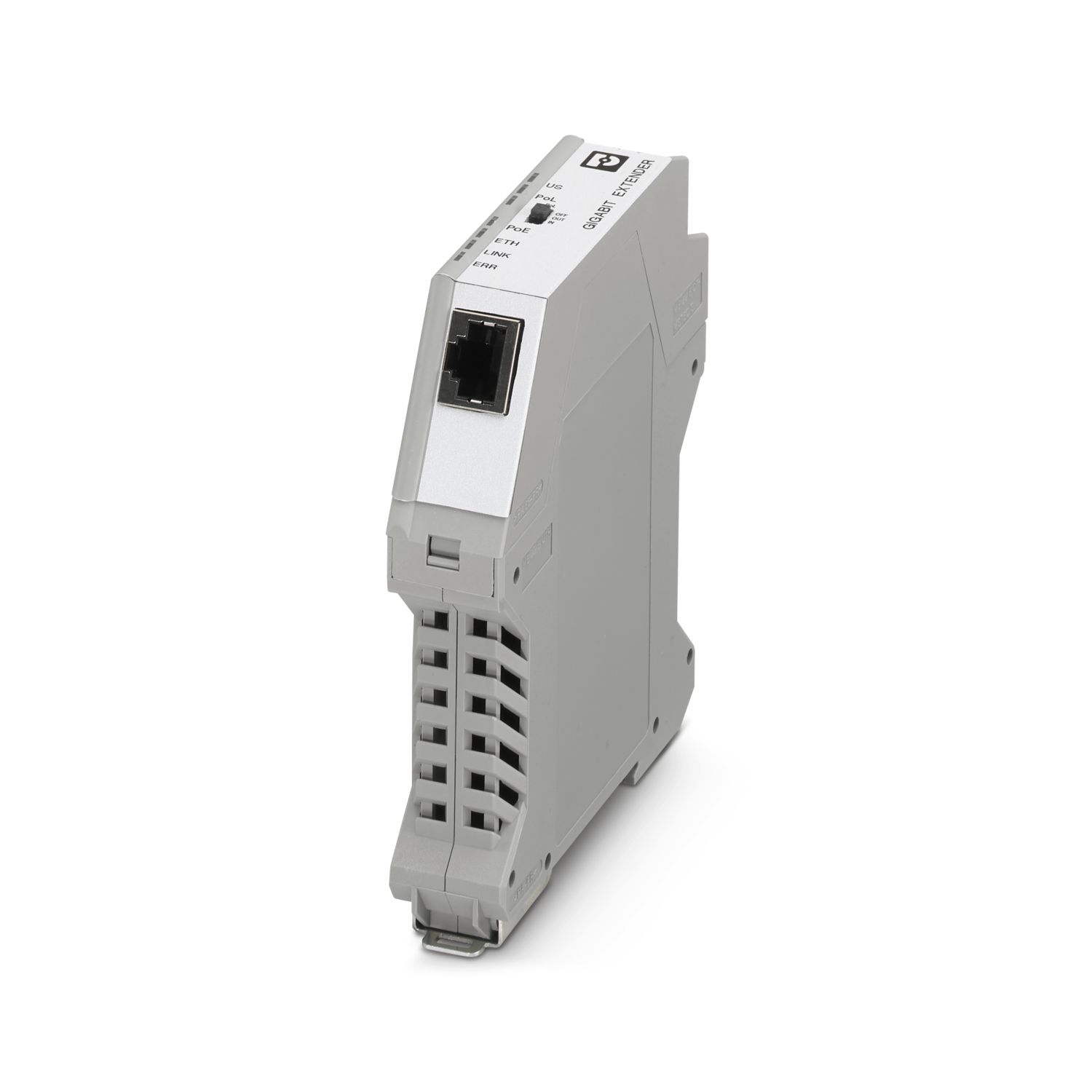

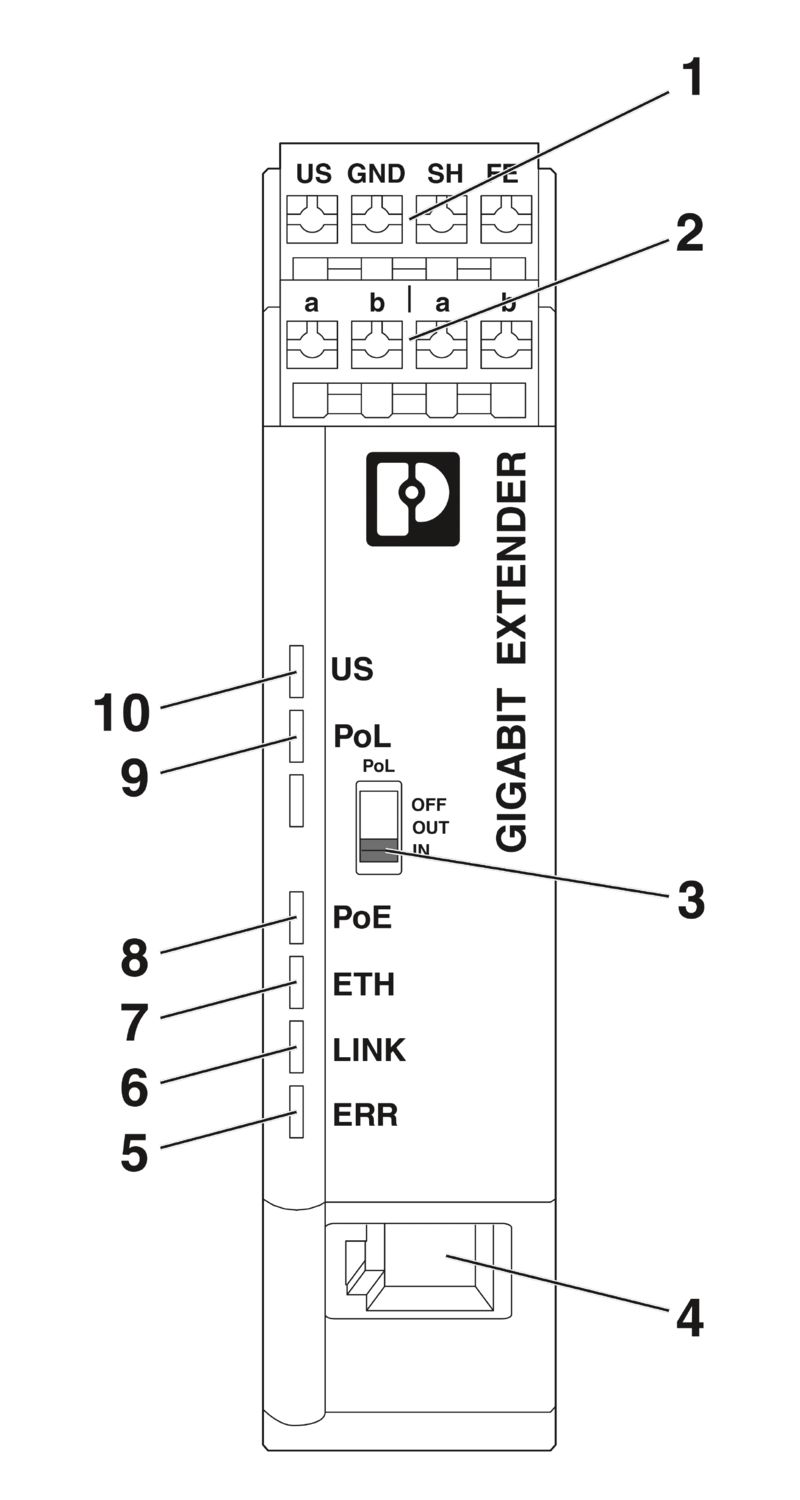

EXTENDER 2010 ETH TP-G - Ethernet extender - 1319322

Notes

Note on application
Note on application	Only for industrial use

Product properties

Product type	Ethernet extender
MTTF	268 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	128 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
	54 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Insulation characteristics
Pollution degree	2

System properties

Functionality

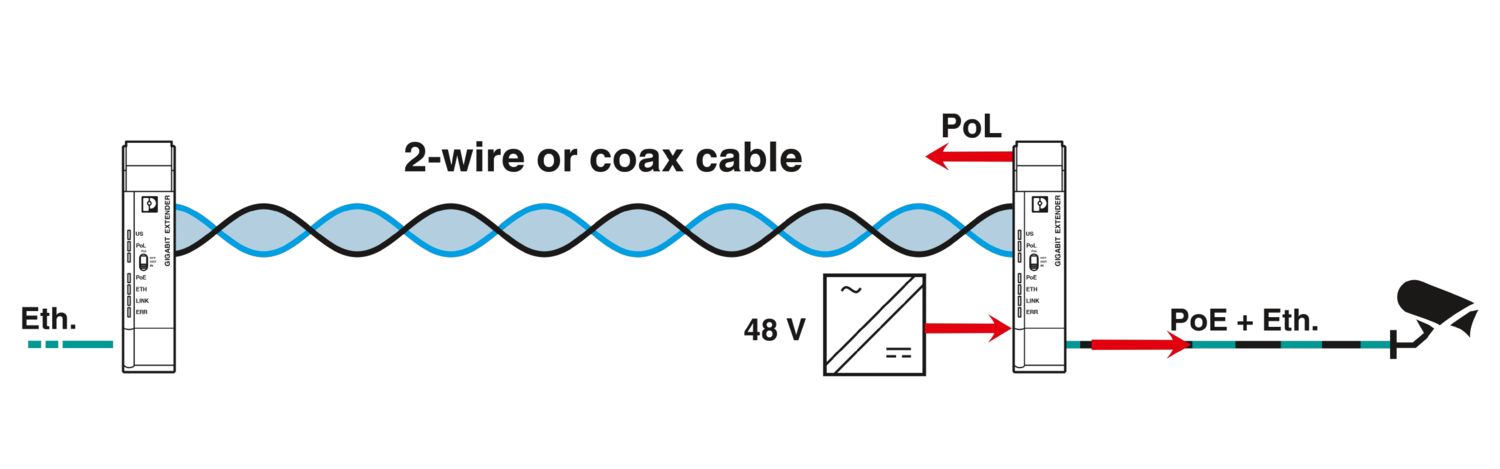

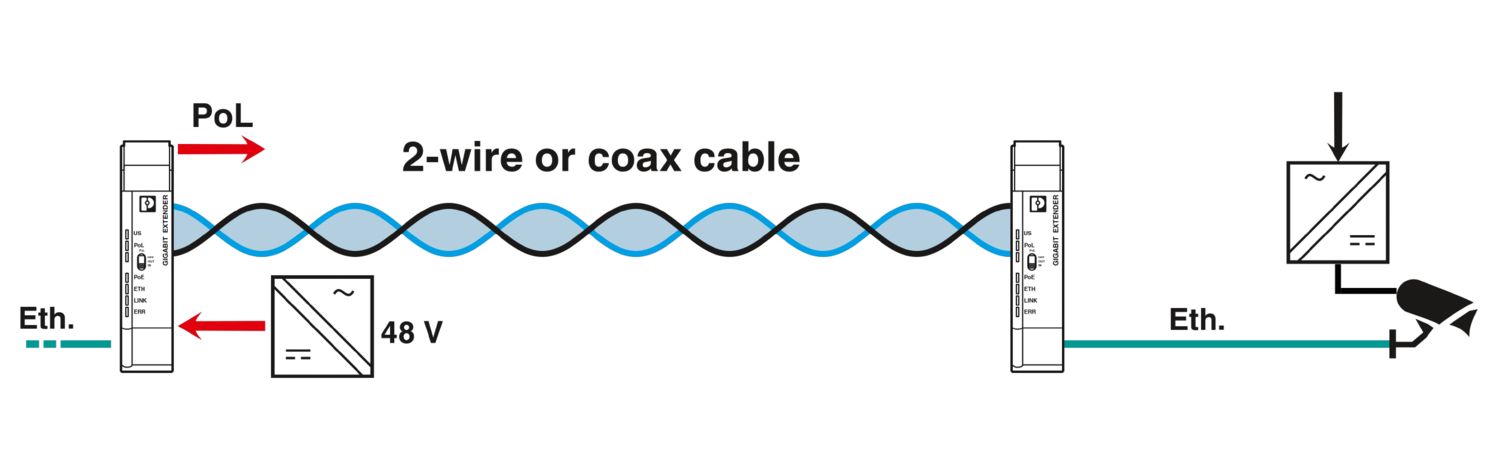

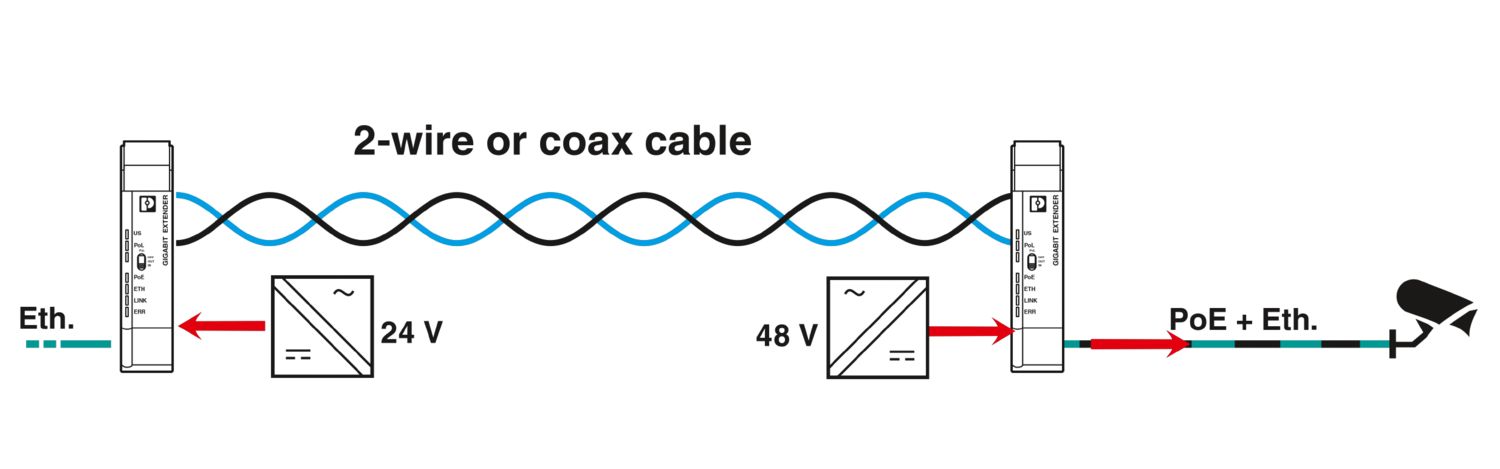

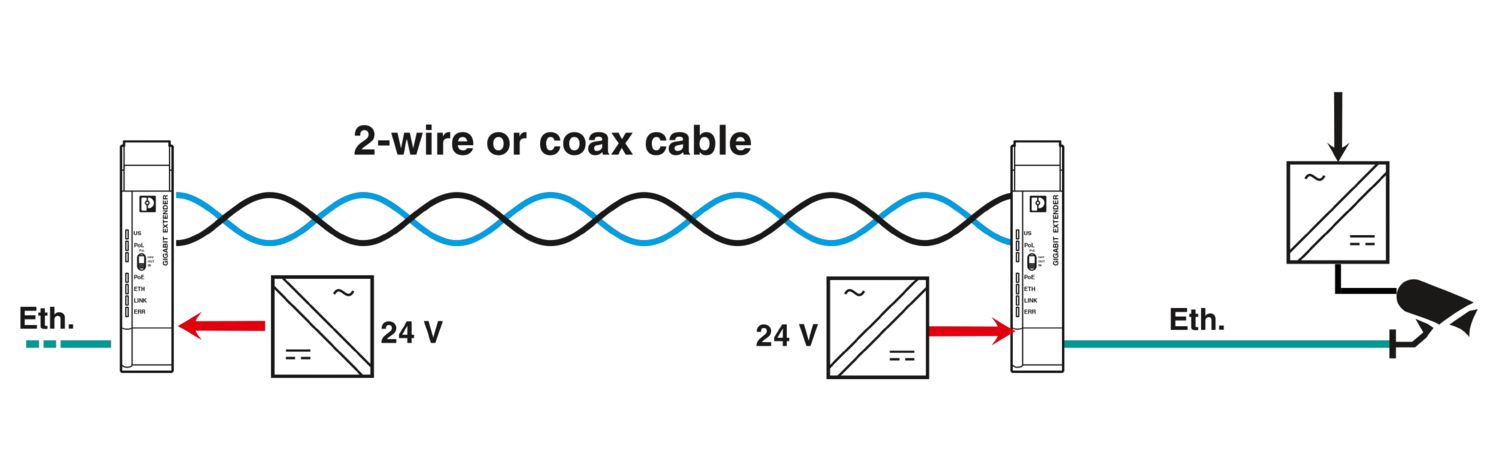

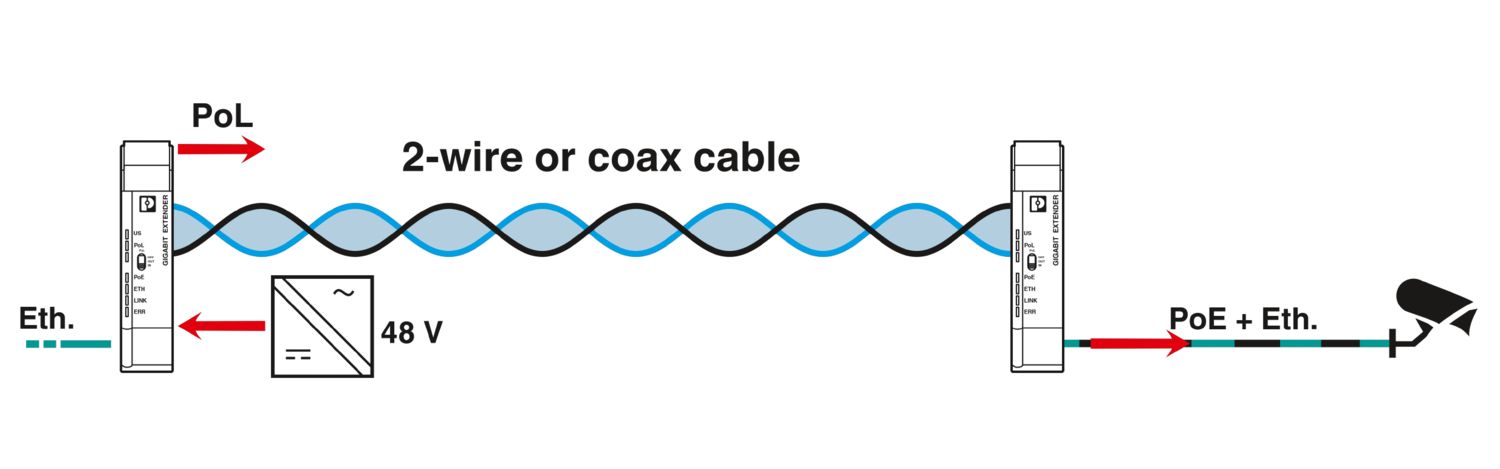

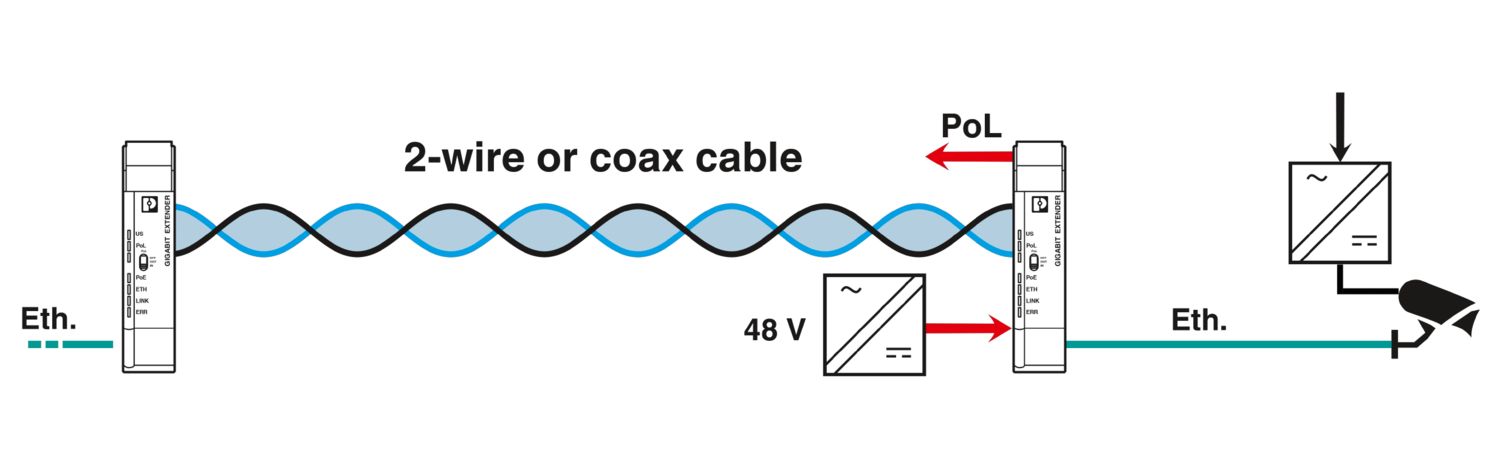

Basic functions	Gigabit Ethernet extender in accordance with ITU G.9960

Electrical properties

Electrical isolation	VCC (US+GND) // Ethernet (PoE) // G.hn (without PoL) // FE
Mains type	Permanent line
Test voltage data interface/power supply	1.5 kV AC (50 Hz, 1 min.)
Supply
Supply voltage range	18 V DC ... 57 V DC
Nominal supply voltage	24 V DC (Without PoL, without PoE)
	48 V DC (With PoL or with PoE)
Power consumption	≤ 7.5 W (Without PoL, without PoE)
	≤ 37.5 W (Without PoL, with PoE)
	≤ 37.5 W (With PoL, without PoE)
	≤ 82.5 W (With PoL, with PoE)
Protective circuit	Overload protection, protection against polarity reversal; Internal device protection: 2x 5 AF, internal series diode

Connection data

Supply
Connection method	Push-in spring connection
Conductor cross section flexible, with ferrule without plastic sleeve	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.2 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Single conductor/terminal point, rigid	0.2 mm² ... 2.5 mm²
	≥ 0.5 mm² (PoL cables in accordance with DIN VDE 0100, part 523)
Single-wire/terminal point, flexible	0.2 mm² ... 2.5 mm²
	≥ 0.5 mm² (PoL cables in accordance with DIN VDE 0100, part 523)
Conductor cross section, flexible [AWG]	24 ... 16
Stripping length	10.00 mm

Interfaces

Signal	Ethernet
Basic functions	Gigabit Ethernet extender in accordance with ITU G.9960
Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Serial transmission speed	10/100/1000 Mbps
Connection method	RJ45 jack, shielded
Note on the connection method	CAT6
		Autonegotiation
		PoE port status: Always active Mode: Auto
No. of channels	1
Transmission length	< 100 m (shielded twisted pair)
Protocols supported	Protocol-transparent for TCP/IP, IPv4, and IPv6
Maximum output power	15 W (at ≤ 55°C)
Maximum output power		30 W (at ≤ 50 °C)

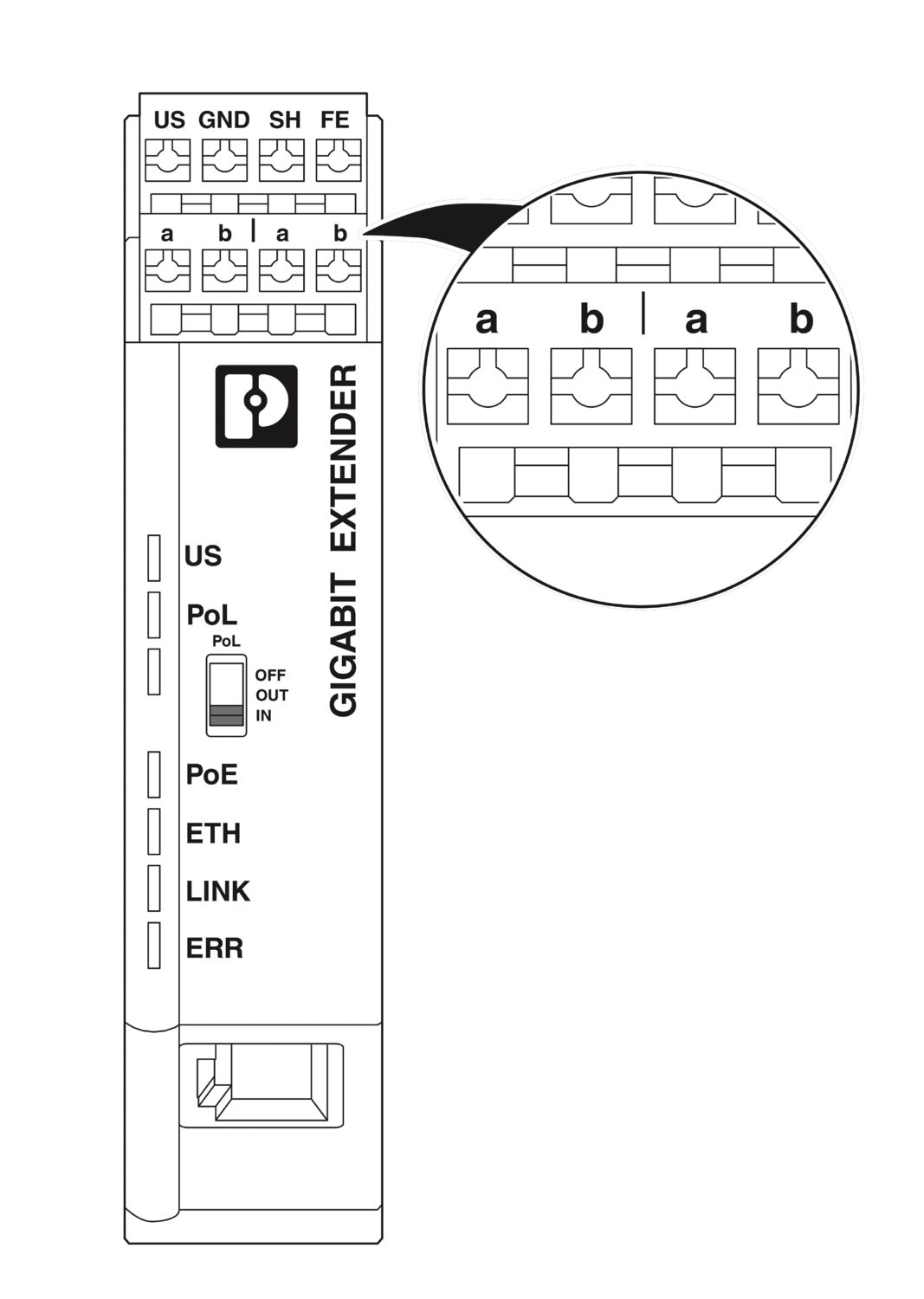

Data: G.hn interface in accordance with ITU G.9960
Transmission speed	≤ 1000 Mbps (Depending on the quality of the data line)
Connection method	Push-in spring connection
Note on the connection method	Short-circuit-proof
Transmission length	≤ 1000 m (Depending on the quality of the data line)
Single conductor/terminal point, rigid	0.2 mm² ... 2.5 mm²
Single-wire/terminal point, flexible	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.2 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve	0.2 mm² ... 2.5 mm²
Max. AWG conductor cross section, flexible	16
Min. AWG conductor cross section, flexible	24
Stripping length	10 mm
Transmission method	QAM (quadrature amplitude modulation) carrier frequency method
Output power	≤ 74 W (With PoL)

Dimensions

Width	23 mm
Height	101 mm
Depth	115 mm

Material specifications

Color (Housing)	gray (RAL 7042)
Material (Housing)	PA 6.6-FR
Flammability rating according to UL 94	V0

Mechanical tests

Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6	: 1g
Shock in accordance with EN 60068-2-27/IEC 60068-2-27	: 15g, 11 ms

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 60 °C (Free standing, without PoE)
	-40 °C ... 55 °C (Free standing, PoE up to 15 W)
	-40 °C ... 50 °C (Free standing, PoE up to 30 W)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)

Approvals

CE
Certificate	CE-compliant
Corrosive gas test
Identification	ISA-S71.04-1985 G3 Harsh Group A

EMC data

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Noise immunity	EN 55035
Noise emission
Standards/regulations	EN 61000-6-4, Class A, industrial area of application
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	± 6 kV
Discharge in air	± 8 kV
Indirect discharge	± 6 kV
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 3 GHz (80% amplitude modulation with 1 kHz)
Field intensity	10 V/m
Frequency range	3 GHz ... 6 GHz (80% amplitude modulation with 1 kHz)
Field intensity	3 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	± 2.2 kV
Signal	± 2.2 kV (Ethernet, G.hn)
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Input	± 0.5 kV (Symmetrical, unshielded supply line)
Input		± 1 kV (Asymmetrical, unshielded supply line)
Signal	± 1 kV (Ethernet signal / asymmetrical: shielded Ethernet cable)
		± 4 kV (Ethernet signal / asymmetrical: cable to ground, unshielded G.hn cable)
		± 2 kV (Ethernet signal / symmetrical: cable to cable, unshielded G.hn cable)
		± 4 kV (Telecommunication lines, symmetrical, unshielded, with primary protection)
		± 1 kV (Telecommunication lines, symmetrical, unshielded, without primary protection)
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Frequency range	0.15 MHz ... 80 MHz (80% amplitude modulation with 1 kHz)
Comments	Criterion A
Voltage	10 V
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.

Mounting

Mounting type	DIN rail mounting
Assembly note	To allow for air circulation, mount the device freestanding, with a clearance of at least one centimeter on all sides to other devices.
Mounting position	Vertical (horizontal DIN rail)

Item number	1319322
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DN24
Product key	DNC361
GTIN	4063151604905
Weight per piece (including packing)	202.5 g
Weight per piece (excluding packing)	147 g
Customs tariff number	85176200
Country of origin	DE

ECLASS-12.0	19170407
ECLASS-13.0	19170407

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
