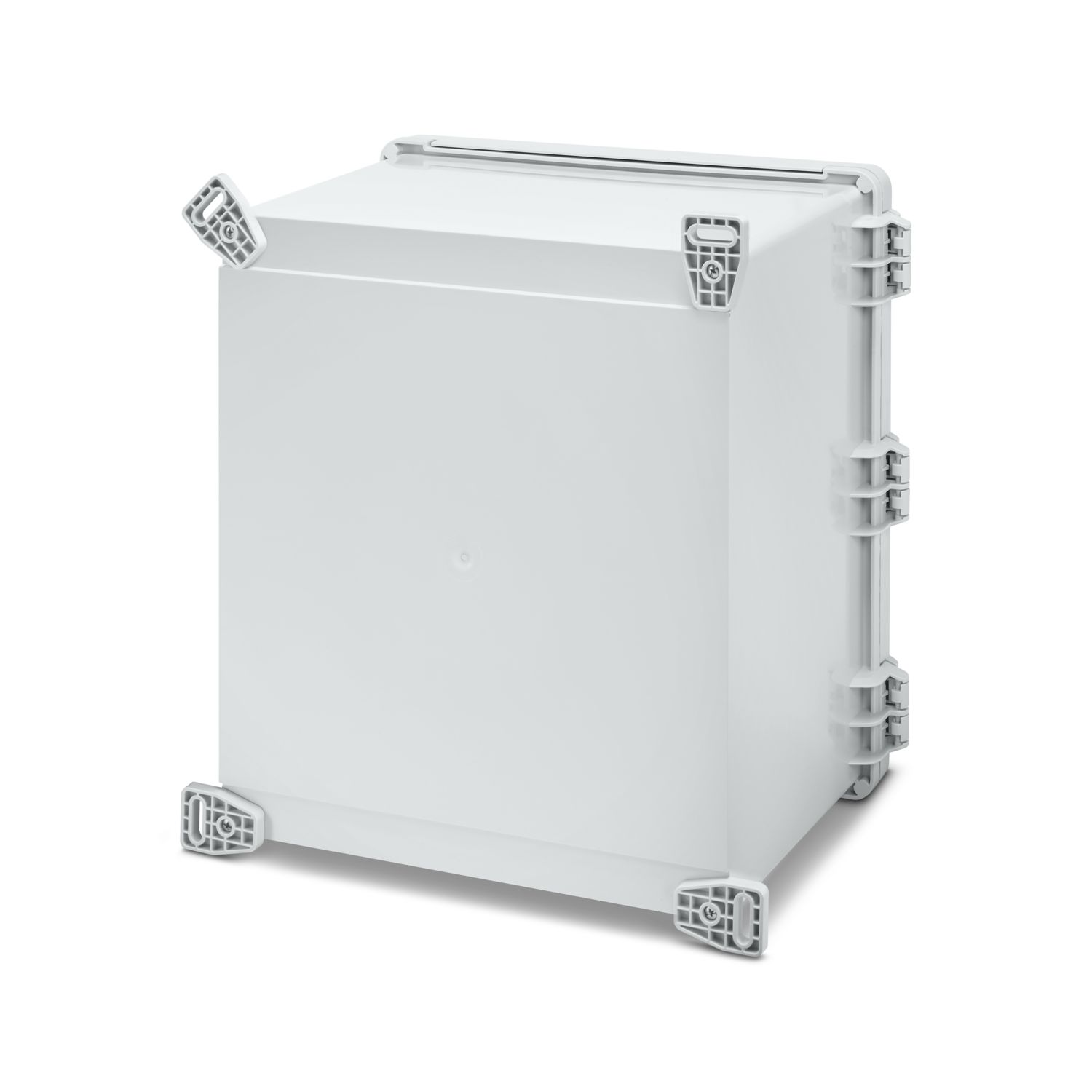

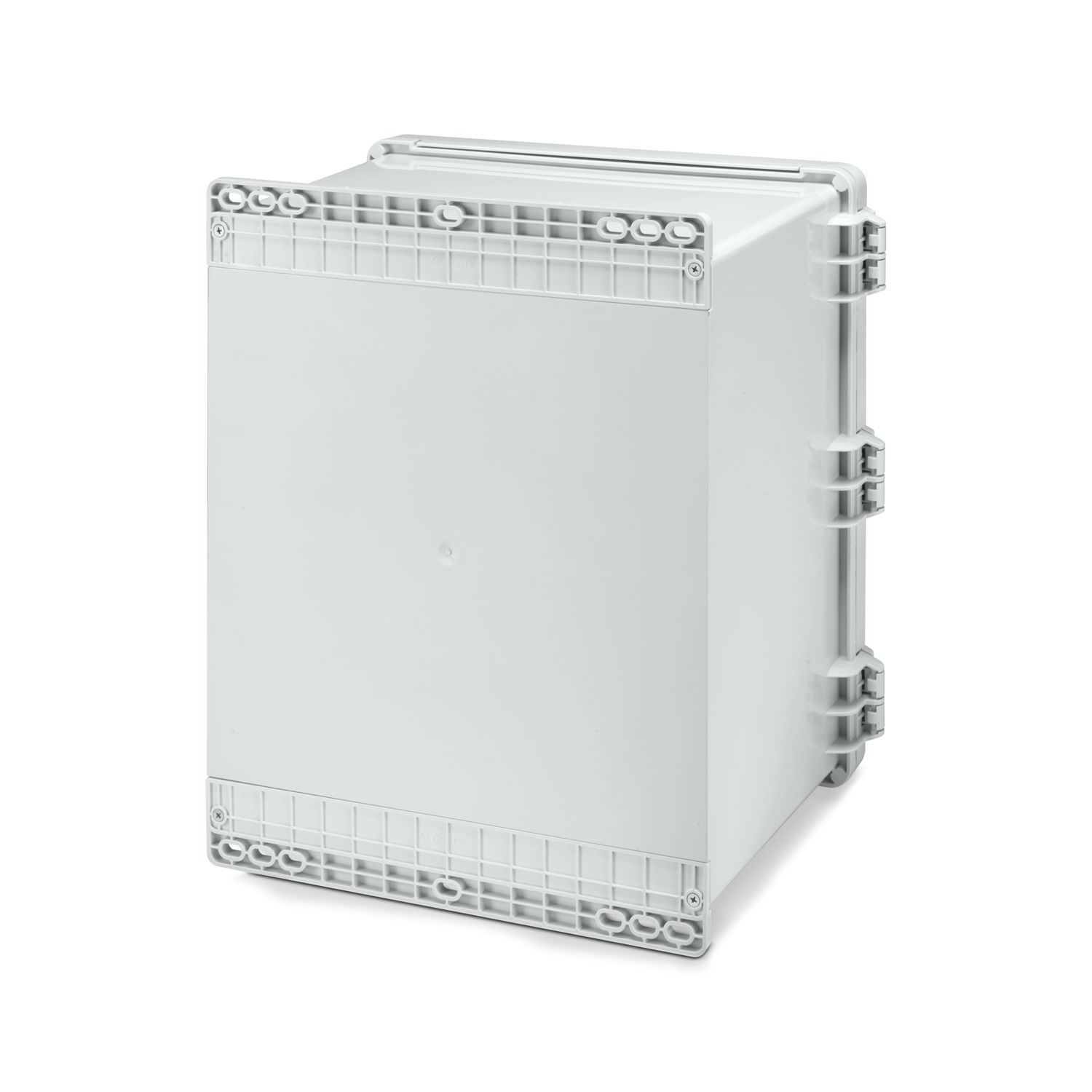

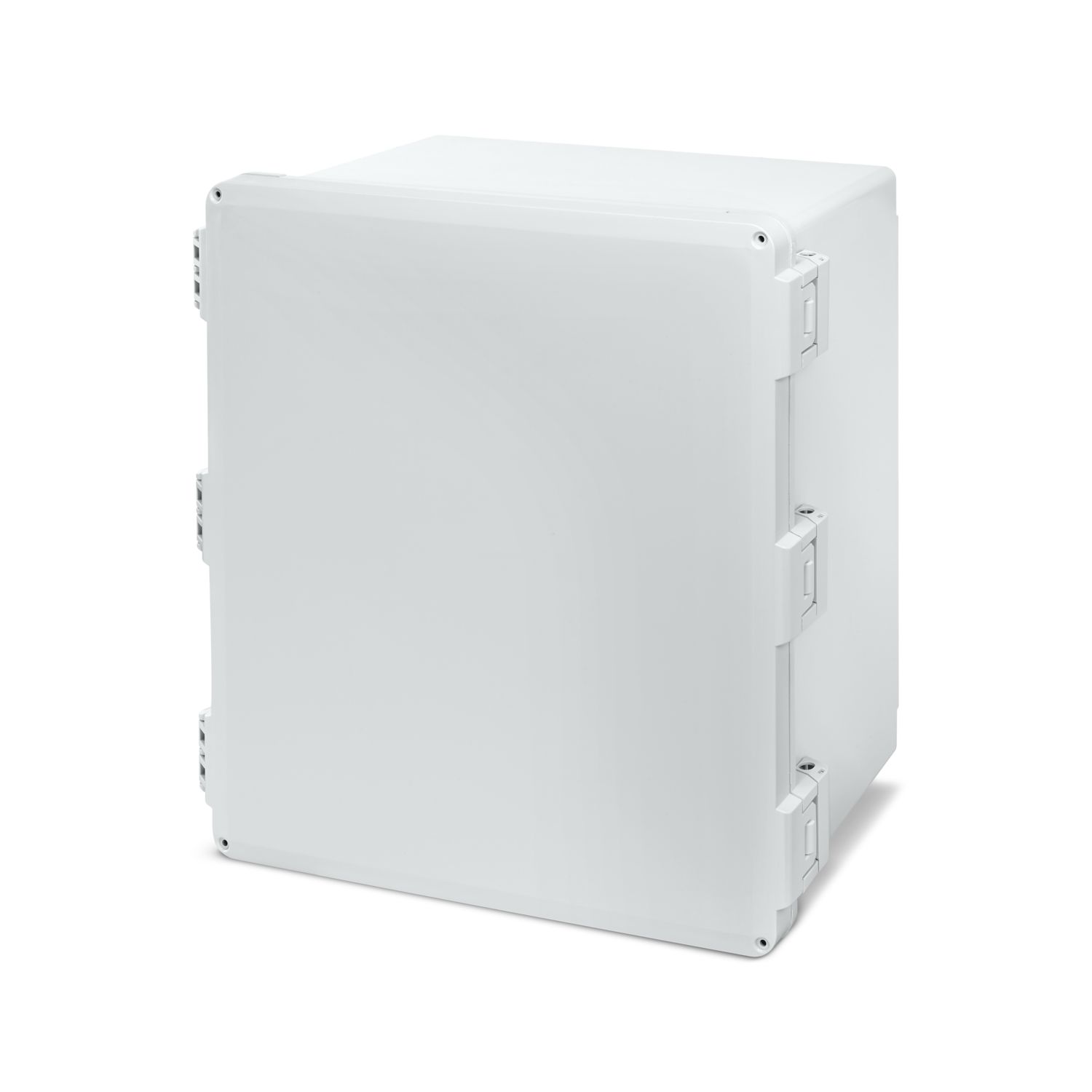

OCS HP 181610 GY7035
-
Outdoor housing
1557794
Outdoor housing, color: light gray, dimensions: 482 x 463 x 286 mm (18" x 16" x 10"), incl. corner inlays, cover plugs, screws, cover: light gray, plastic latch, material: UV-stabilized polycarbonate
This product needs further products for operation.
Mandatory accessories
Product details
| Assembly note | Only use the screws provided to screw the components onto the corner inlays, the mounting pillars, and the housing. |
| Recommendation | To maintain the degree of protection, you must install suitable components with at least the same IP degree of protection in all openings. |
| Recommendation | Further information and detailed dimensions are available in the download area. |
| Order information: | Mounting feet, mounting plates, mounting panels, and the mount for mast mounting are available as accessories, but are not supplied as standard. |
| Product type | Complete housing |
| Housing type | Outdoor housing |
| Housing series | OCS |
| Product family | OCS..1816.. |
| Type | Opaque complete housing including mounting material |
| Ventilation openings present | no |
| Battery compartment | no |
| Dimensional drawing |
|
| Width | 463 mm |
| Height | 482 mm |
| Depth | 286 mm |
| Hole diameter | 10 mm (Can be secured mechanically with the latch) |
| Color (Housing) | light gray (RAL 7035) |
| Color (Housing cover) | light gray (RAL 7035) |
| Material (Housing) | PC UV stabilized |
| Material (Seal) | PUR |
| Flammability rating according to UL 94 | V2 |
| Surface characteristics | untreated |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Degree of protection (IP code) | |
| Specification | IEC 60529:2001-02 |
| Ambient conditions | |
| Max. IP code to attain | IP69 |
| Max. NEMA code to attain | 6P |
| Impact strength | IK10 (at -35°C ... +40°C) |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Type of PCB mount | Bolt mounting |
| Mounting type | Mast mounting or panel mounting |
| Mounting position | any |
| Type of packaging | Box packaging |
Your advantages
Internationally certified housing system
Special plastic enables safe continuous operation
Provides protection against the ingress of jet water
Withstands even heavy mechanical strain
