PRC 20/3-C2-BD-Y - Distribution block

1526188

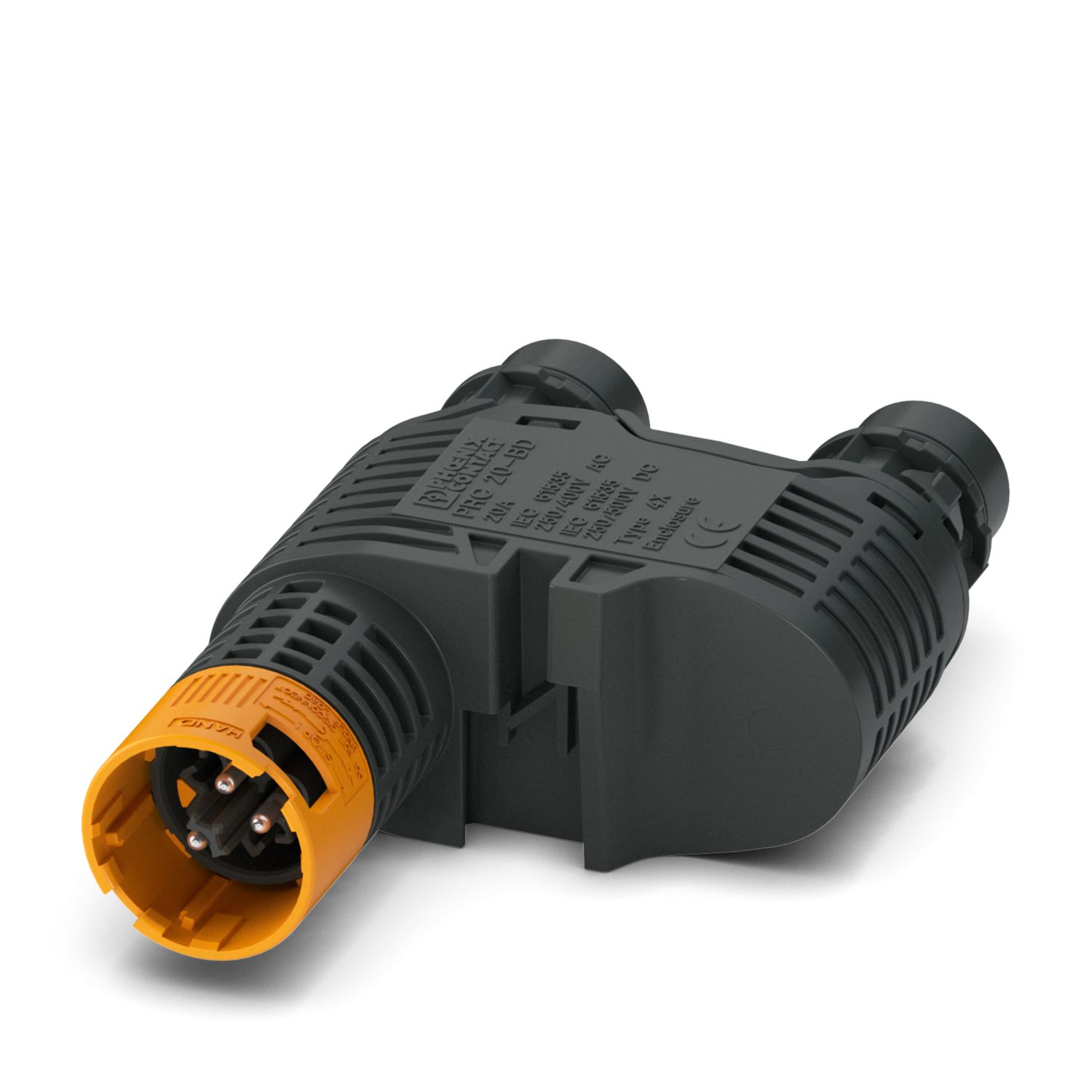

Distribution block, Range of articles: PRC 20, design: Y distributor, color: black/orange, number of positions: 3, rated voltage: 400 V, rated current: 20 A, Setting option for release: 1. with a tool or 2. by hand, scope: DC

Product details

Order information:	Setting option for release: 1. with a tool or 2. by hand
Note on application	For assembly notes, please refer to the packing slip

Product type	Power distributor
Product family	PRC 20
Area of application	DC
Type	Y distributor
Number of positions	3
Connection profile	3
Coding	3-C2
Insulation characteristics
Protection class	II (double or reinforced insulation)

Width	77.3 mm
Height	36.5 mm
Length	115.5 mm

Nominal voltage ATD	400 V (III/2.00) in accordance with IEC 61984
	500 V AC (III/2.00) in accordance with IEC 61535
	600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237
	500 V DC (III/2.00) in accordance with IEC 61535
Rated current	20 A (With 2.5 mm² conductor cross section in accordance with IEC 61984)
	20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535)
	20 A (With 2.5 mm²/AWG 14, in accordance with UL 2238)

Mechanical data
Insertion/withdrawal cycles	500 (Test specification: IEC 60512-13-2)

Color (Housing)	black (RAL 9005)
Color (Locking)	orange (RAL 2003)
Material Contact carrier	PPE
Material Contact	CuZn (Contact material, Pb < 0.1)
Material Housing	PPE
Material Seal	EPDM (Housing seal)
Material Pin connector pattern	EPDM

Halogen-free	yes (in accordance with IEC 61249-2-21:2003- 11 Cl.3.1)

Ambient conditions
Degree of protection (when plugged in)	IP68 (2 m / 2 h)
	IP68 (2 m / 2 h)
Degree of protection	IP66
	IP68 (2 m / 2 h)
	IP69
Category of shock impact	IK08 (-25°C)
Ambient temperature (operation)	-40 °C ... 85 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 75 °C
Ambient temperature (assembly)	-5 °C ... 85 °C

Standards/specifications	IEC 61984:2008
	IEC 61535:2019
	UL 2238
	UL 2237

Commercial data

Item number	1526188
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	A16
Product key	ABLHCA
GTIN	4063151994686
Weight per piece (including packing)	162.4 g
Weight per piece (excluding packing)	162.4 g
Customs tariff number	85366990
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	500 V	20 A		0.5 - 2.5

Environmental product compliance

Compatible products

Accessories

Your advantages

Less wiring effort on the construction site thanks to plug-and-play

Fewer wiring errors due to 100% check during production

Plug and forget thanks to the use of tried-and-tested materials

Manual or tool locking – you decide on site in no time

Designed for extreme ambient conditions

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	Triphenyl phosphate (CAS: 115-86-6)
SCIP	e25fab6b-e41f-49b5-bbb7-451fb043434e
