NS 32 UNPERF/...
-
DIN rail, unperforated
1208173
DIN rail, unperforated, as per customer specification: max. length: 2 m, acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver-colored
Product details
| Product type | DIN rail |

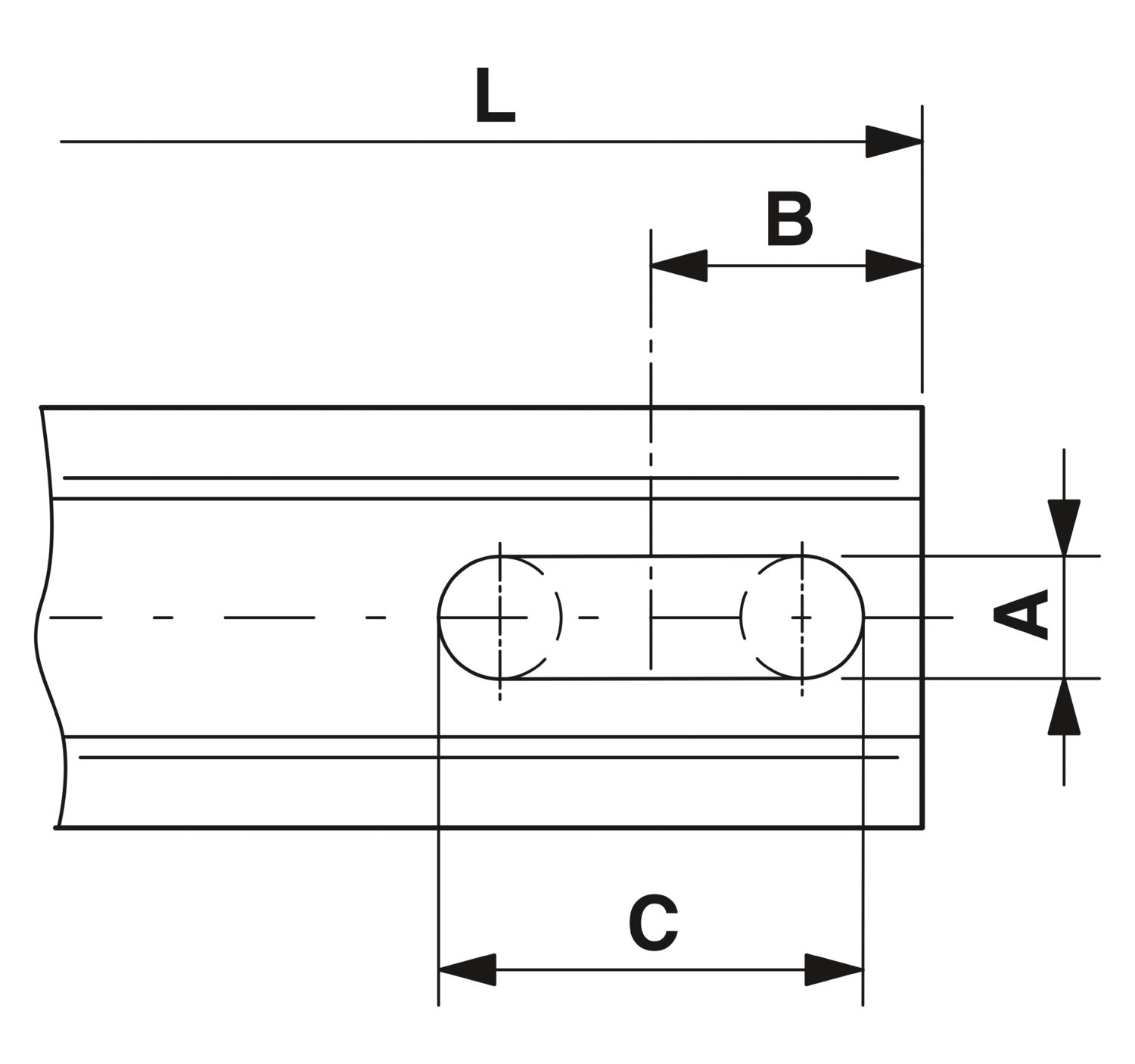

| Dimensional drawing |
|
| Width | 32 mm |
| Height | 15 mm |
| Drill hole spacing | 25 mm |
| Color | silver-colored |
| Material | Steel |
| Coating | galvanized, passivated with a thick layer |
| Connection in acc. with standard | IEC / EN |
| Tests | acc. to EN 60715 |
