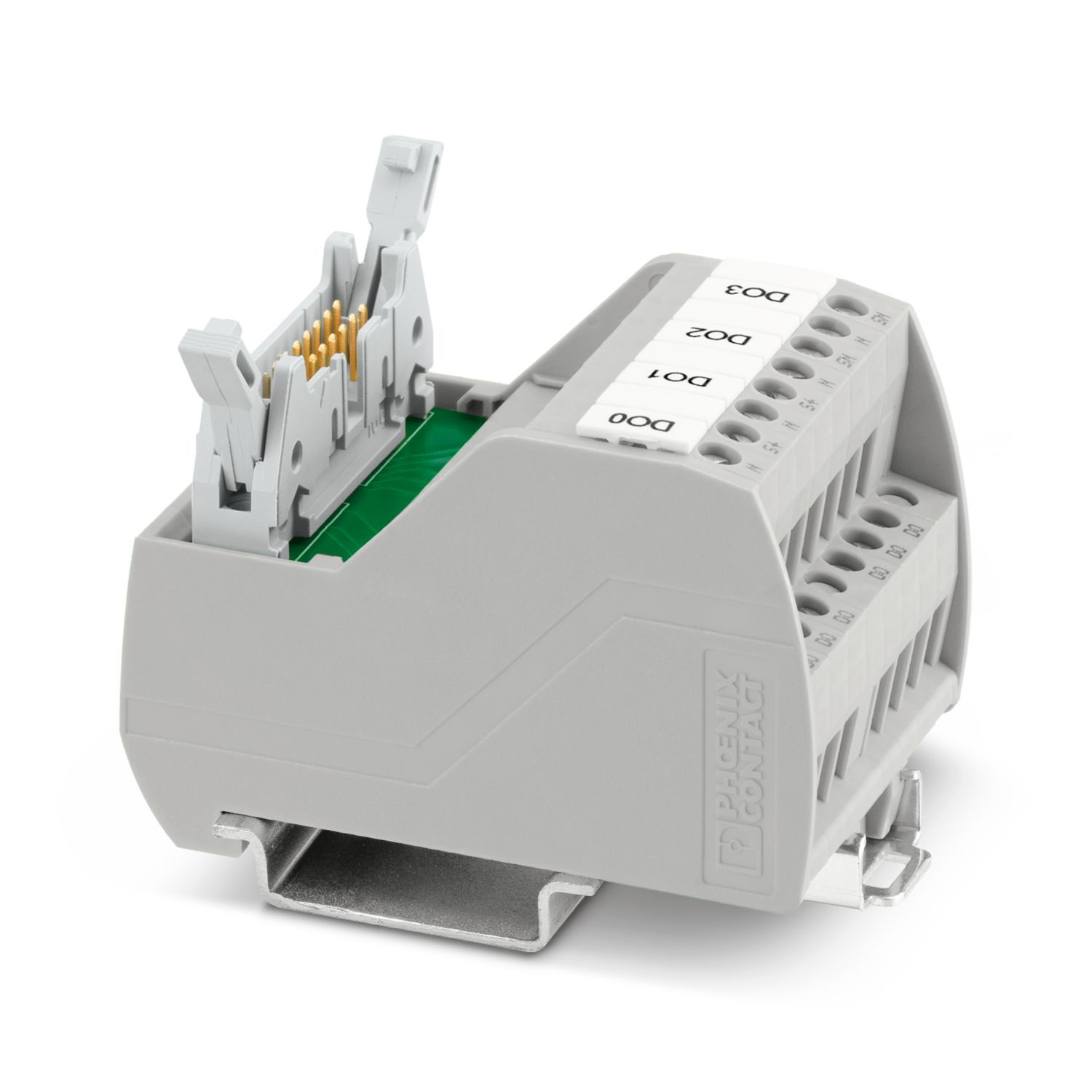

VIP-2/SC/FLK16/ISP DO - Passive module

2903874

VARIOFACE Professional (VIP) module for Siemens ET200 ISP controllers. Interface to digital output card, 4 channel. 125 V AC/DC, 1 A rating.

Product details

Technical data

Product properties

Product type	Interface module
Product family	VARIOFACE Professional
Number of positions	16
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Electrical properties

Nominal voltage U_N	60 V AC/DC
Max. current carrying capacity per branch	1 A
Supported controller SIEMENS ET200 ISP
Suitable I/O card	6ES7132-7RD01-0AB0

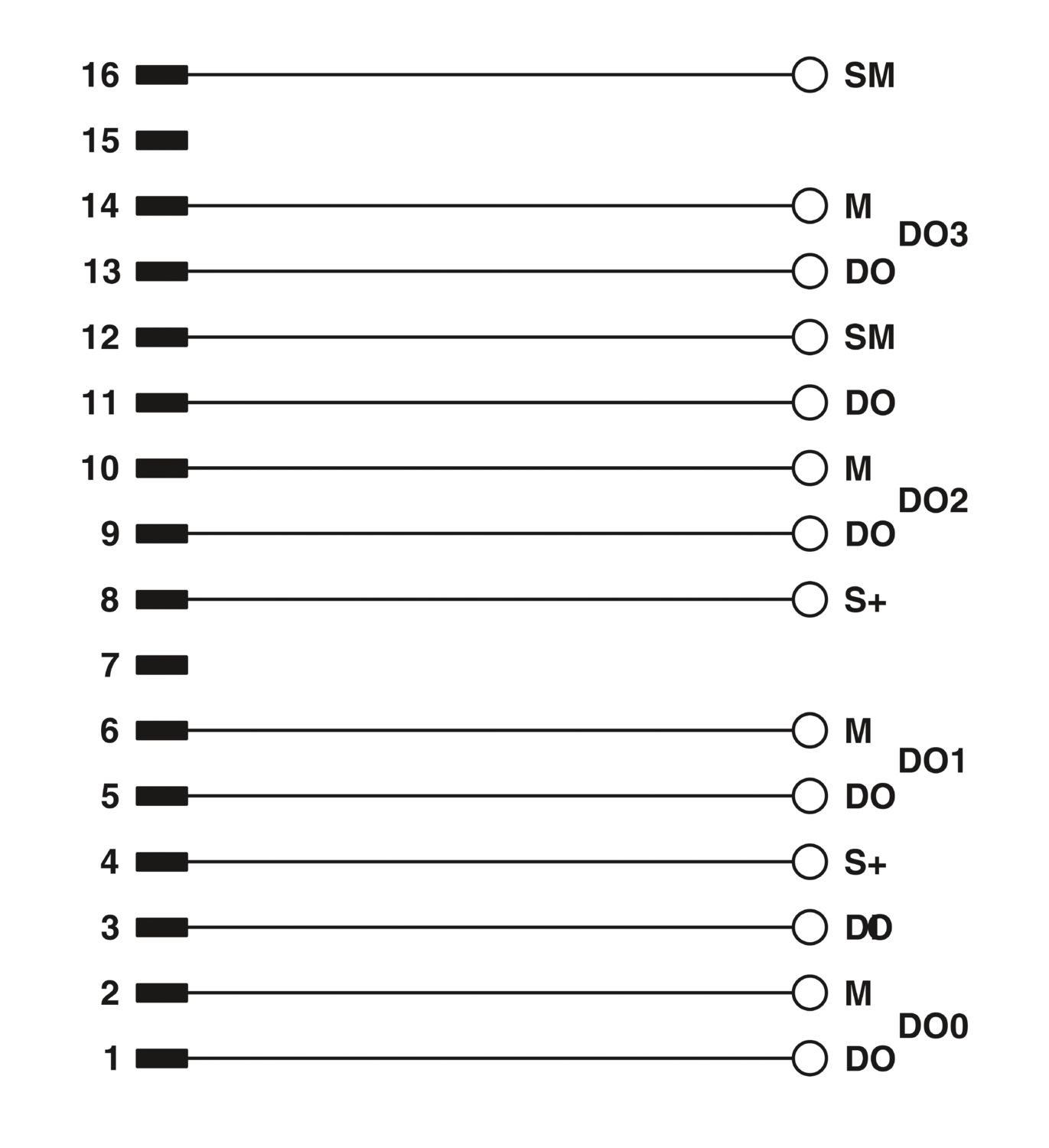

Connection data

Field level
Connection in acc. with standard	IEC / EN
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M 3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	16
Pitch	2.54 mm

Signaling

Status display	no
Status display present	no

Dimensions

Item dimensions
Width	45 mm
Height	65.5 mm
Depth	56 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Housing insulation material	Polyamide PA non-reinforced

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	< 2000 m
Permissible humidity (operation)	90 %
Permissible humidity (storage/transport)	90 %

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2903874
Packing unit	80 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	C423
Product key	DK2B11
GTIN	4046356827690
Weight per piece (including packing)	333.33 g
Weight per piece (excluding packing)	333.33 g
Customs tariff number	85369010
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Environmental product compliance

Compatible products

Accessories

Your advantages

Interface from field devices to digital output 6ES7132-7RD01-0AB0 card

I/O marking for field wiring clearly identified when device is mounted

Compact design reduces space requirements in the control cabinet

A single, metal mounting foot allows easy installation and removal to the mounting rail

Integrated ZB channel allows flexible marking of device

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VIP-2/SC/FLK16/ISP DO - Passive module

2903874

Product details

ECLASS

ETIM

CSA

cUL Recognized

UL Recognized

CSAus

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VIP-2/SC/FLK16/ISP DO - Passive module 2903874

Product details

ECLASS

ETIM

Compatible products

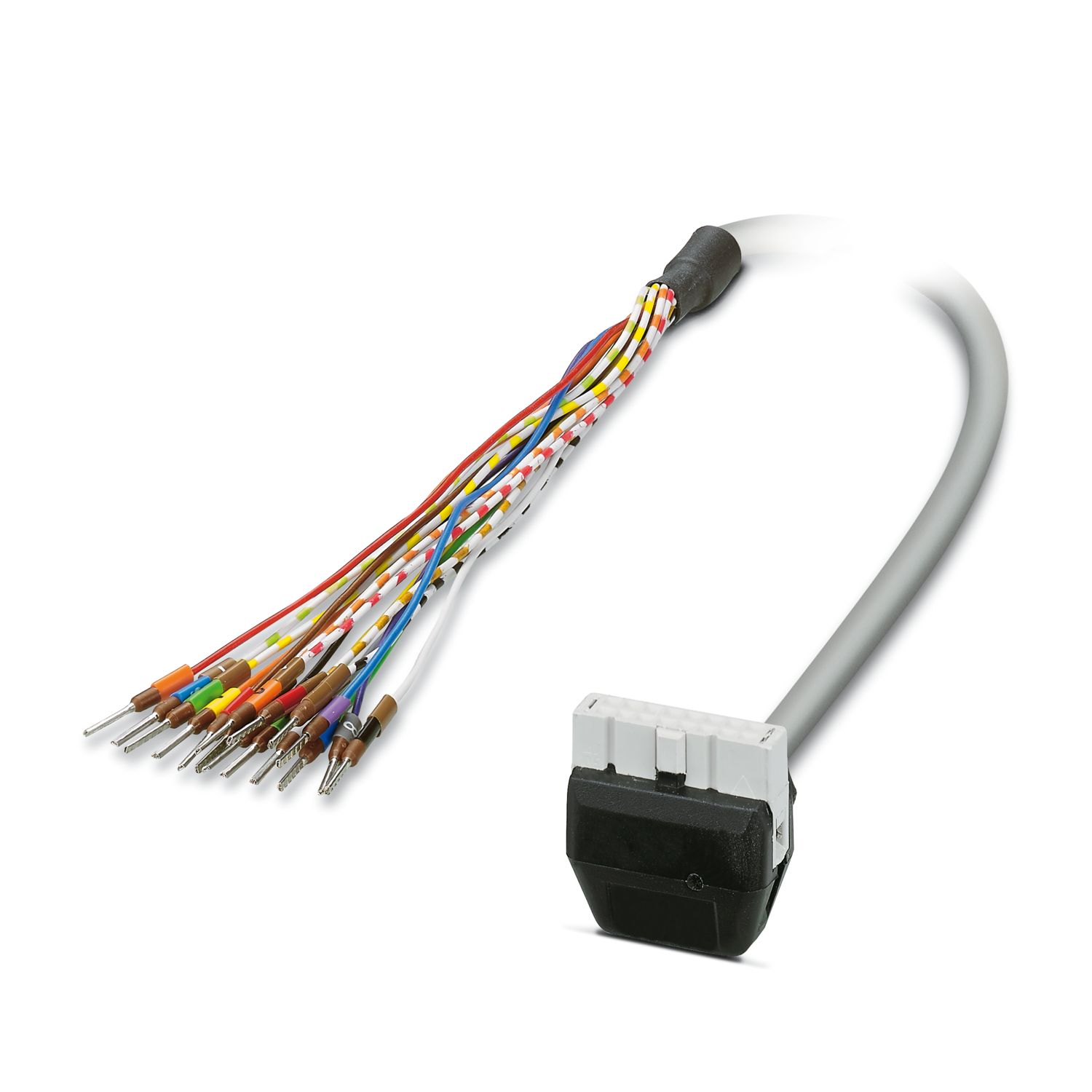

VIP-CAB-FLK16/FR/OE/0,14/0,5M - Cable 2900130

VIP-CAB-FLK16/FR/OE/0,14/1,0M - Cable 2900131

VIP-CAB-FLK16/FR/OE/0,14/1,5M - Cable 2900132

VIP-CAB-FLK16/FR/OE/0,14/2,0M - Cable 2900133

VIP-CAB-FLK16/FR/OE/0,14/3,0M - Cable 2900134

VIP-CAB-FLK16/FR/OE/0,14/4,0M - Cable 2900135

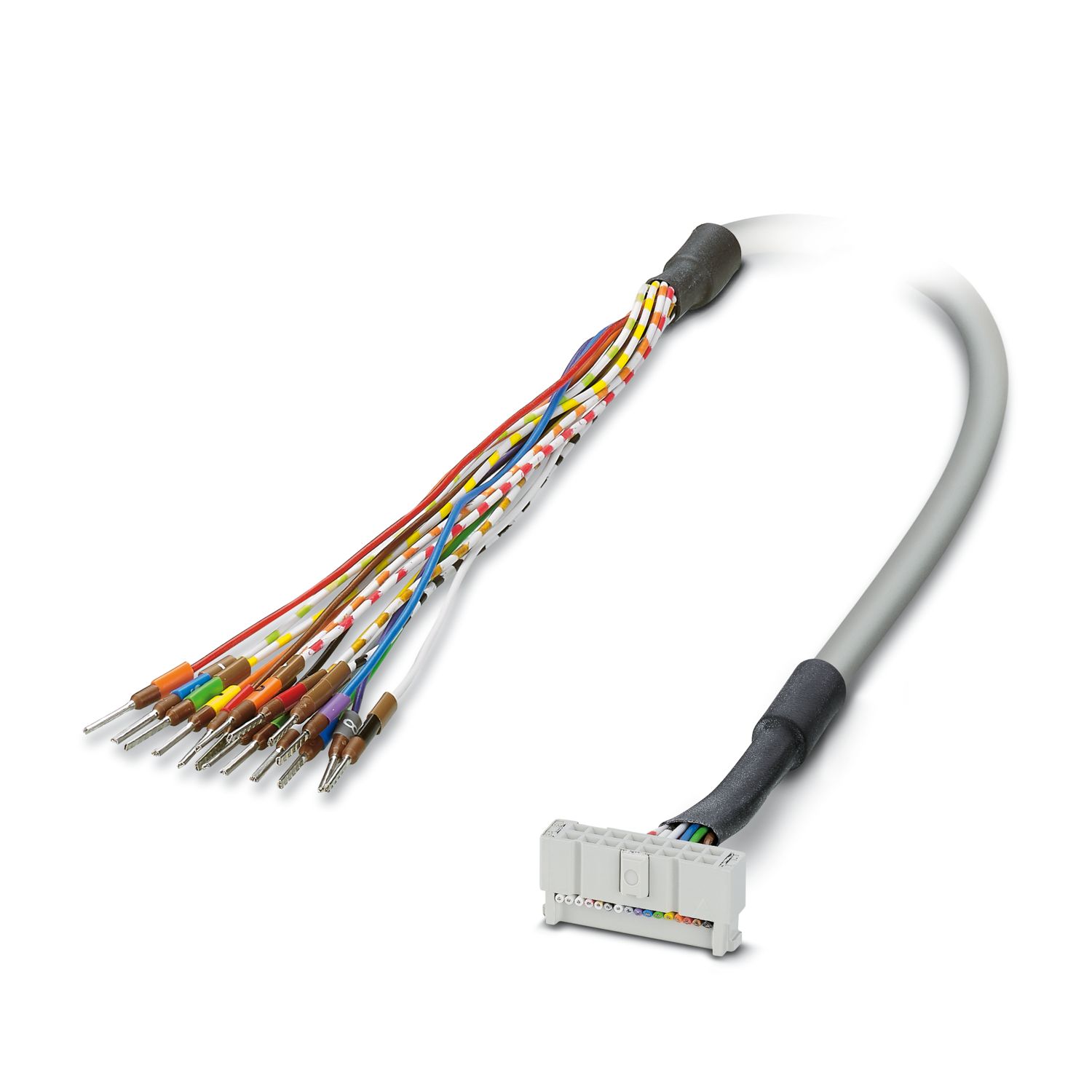

CABLE-FLK16/OE/0,14/ 0,5M - Cable 2318127
