EPC 1522 - Edge device
1185423

PLCnext Industrial Edge Computer with Intel® Celeron® N3350 processor. This small form factor programmable edge device supports IEC 61131-3, MATLAB Simulink, C/C++, and is perfect for protocol converting, data collection, and cloud computing.

Free Download available. Downloads

Product Details




Type Stand-Alone
Product type Controller
Product family PLCnext Control
Computer data
Processor Intel® Celeron® N3350 1.10/2.4 GHz
Cooling passive
RAM 4 GB LPDDR4
Data storage eMMC internal, 32 GB
128 GB M.2 SSD
Display
Display type none

Supply
Supply voltage 24 V DC

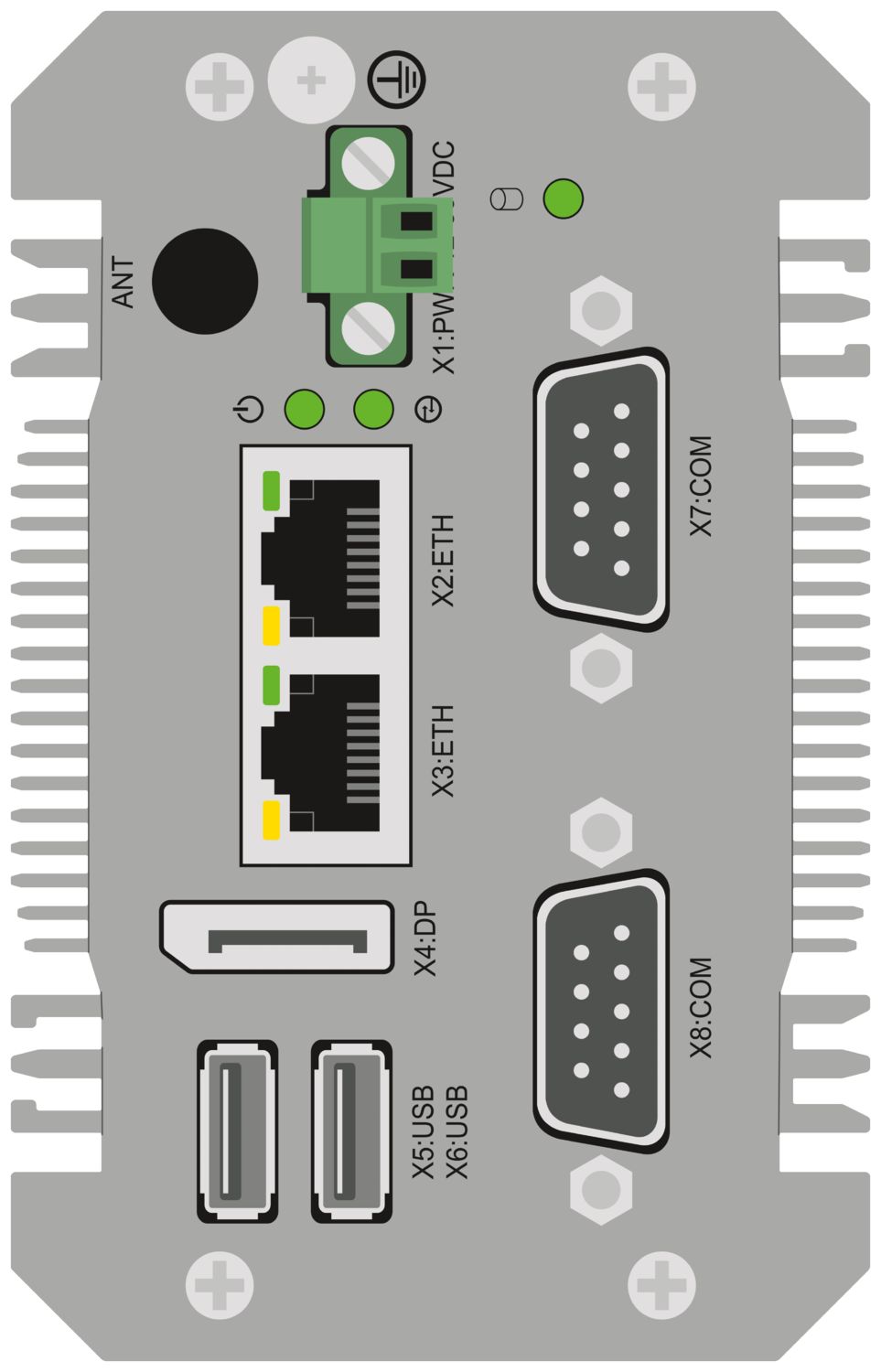

Interfaces 1x DP++
2x USB 3.0
2x COM ports
LAN chipset Intel® I210-AT
Bus system PROFINET

IEC 61131 runtime system
Program memory 8 Mbyte
Data storage 12 Mbyte
PROFINET
Device function PROFINET controller, PROFINET device

Functionality
Programming languages supported Instruction list (IL)
Symbolic flowchart (SFC)
Ladder diagram (LD)
Function block diagram (FBD)
Structured text (ST)
C++
C#
Java
Python
Simulink
System requirements
Engineering tool PLCnext Engineer
Eclipse
Visual Studio
MATLAB® Simulink®

External dimensions
Width / Height / Depth 99 mm / 92 mm / 63 mm

Ambient conditions
Degree of protection IP30
Ambient temperature (operation) -20 °C ... 50 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Permissible humidity (operation) 5 % ... 85 % (non-condensing)
Shock 15g, 11 ms in accordance with IEC 60068-2-27
Vibration (operation) 1g, according to EN 60068-2-6

Conformity/Approvals
Conformance CE-compliant
FCC Title 47 Part 15 Subpart B:2018 Class A

Mounting type DIN rail mounting
Wall mounting
DIN rail mounting
Wall mounting

Item number 1185423
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key D02
Product Key DRBABE
GTIN 4063151225568
Weight per Piece (including packing) 952 g
Weight per Piece (excluding packing) 730 g
Customs tariff number 84715000
Country of origin TW


ECLASS

ECLASS-10.0.1 27242207
ECLASS-9.0 27242207
ECLASS-11.0 19200102

ETIM

ETIM 8.0 EC001413

UNSPSC

UNSPSC 21.0 43211500

IECEE CB Scheme

Approval ID: US-39601-UL

EAC

Approval ID: RU C-DE.A*08.B01708

UL Listed

Approval ID: FILE E 238705

cUL Listed

Approval ID: FILE E 238705

EAC

Approval ID: RU*-DE*HB.B.00386/20

cULus Listed


REACh SVHC Lead 7439-92-1

Compatible Products



Your advantages

Pre-installed open-source software such as Node-RED and InfluxDB for fast IoT development
PROFINET controller and PROFINET device
Connection to PROFICLOUD
Connection to PLCnext Store, for installing e.g. Docker-Portainer
Numerous protocols supported such as: http, https, FTP, SNTP, SNMP, SMTP, SQL, MySQL, DCP, etc.
2 independent Ethernet interfaces
High-level programming languages: IEC61131-3, C/C++, MATLAB Simulink
Constistent graphical programming interfaces
