UPS-BAT/LI/24DC/284WH - Battery module - 1460923

Product details

Product description

Technical data

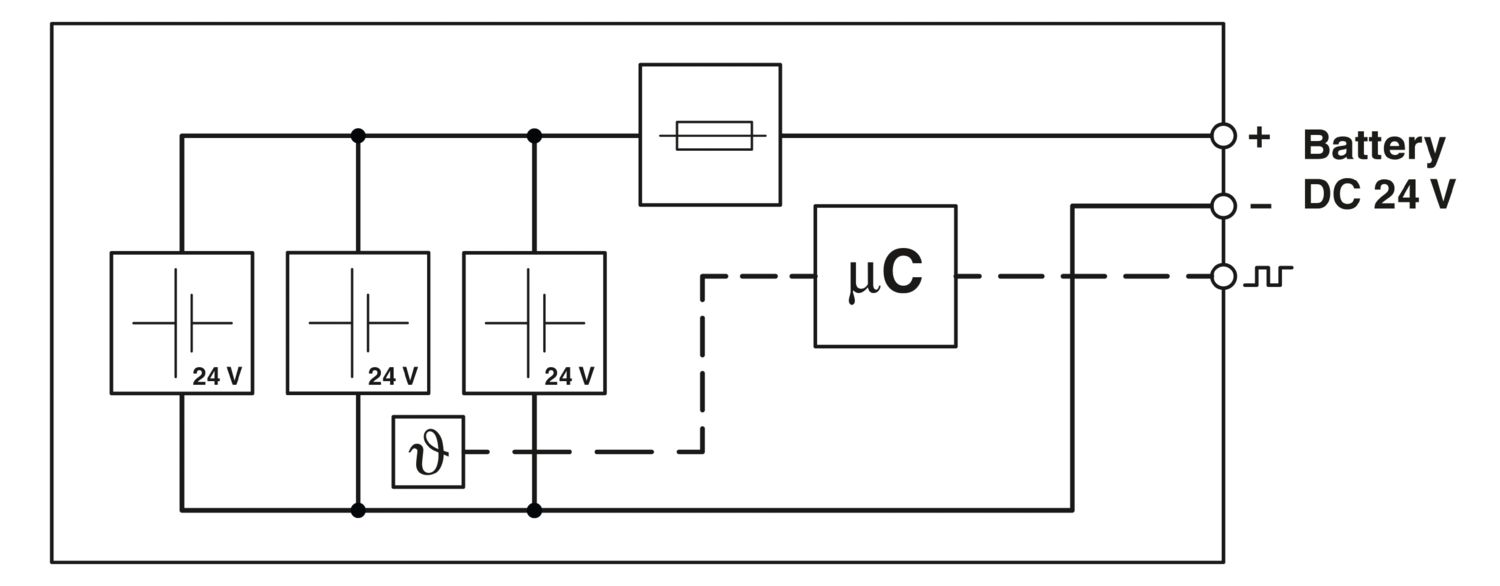

Energy storage

Input
Input voltage	24 V DC
Nominal capacity	284 Wh (3x 94.72 Wh)
Nominal capacity		11.1 Ah
Charging current	15 A
End-of-charge voltage	28.4 V DC (20 °C)
Output
Output current	max. 45 A (Derating: -20 °C ... 0 °C, 40 A; 50 °C ... 60 °C, 35 A)
Output fuse	1x 50 A MAXI Blade Fuse ( 32 V DC)
Buffer time	30 min (20 A)
General
Connection in parallel	yes
Connection in parallel		max. 5
Battery type	Grepow, 3x 25.6 V GRP8056117-8S1P-A
Battery technology	Lithium-Ion (LiFePO₄)
IQ-Technology	yes
Latest startup date (battery only)	6 Months (-20 °C ... 35 °C)
Latest startup date (battery only)		1 Months (-30 °C ... 65 °C)
Accumulator module service life (according to Eurobat)	10 (20 °C)
Size designation	Block
Temperature sensor	yes
Number of replacement battery kits	3x (UPS-BAT-KIT/LI/24DC/94WH (1532141))

Connection data

Battery
Position	4.x
Connection technology
Position marking	4.1 (+), 4.2 (-)
Conductor connection
Connection method	Screw connection
rigid	2.5 mm² ... 16 mm² (recommended, 25 A fuse)
rigid		4 mm² ... 16 mm² (recommended, 50 A fuse)
flexible	2.5 mm² ... 16 mm² (recommended, 25 A fuse)
flexible		4 mm² ... 16 mm² (recommended, 50 A fuse)
flexible with ferrule without plastic sleeve	2.5 mm² ... 16 mm² (recommended, 25 A fuse)
flexible with ferrule without plastic sleeve		4 mm² ... 16 mm² (recommended, 50 A fuse)
flexible with ferrule with plastic sleeve	2.5 mm² ... 16 mm² (recommended, 25 A fuse)
flexible with ferrule with plastic sleeve		4 mm² ... 16 mm² (recommended, 50 A fuse)
AWG	14 ... 6 (recommended, 25 A fuse)
AWG		10 ... 6 (recommended, 50 A fuse)
Stripping length	10 mm (recommended, 25 A fuse)
Stripping length		10 mm (recommended, 50 A fuse)
Tightening torque	1.2 Nm ... 1.5 Nm
Tightening torque		15 lb_f-in.
Drive form screw head	Slotted L
LIN
Position	4.x
Connection technology
Position marking	4.3 ()
Conductor connection
Connection method	Screw connection
rigid	0.75 mm² ... 16 mm² (LIN)
flexible	0.75 mm² ... 16 mm² (LIN)
flexible with ferrule without plastic sleeve	0.75 mm² ... 16 mm² (LIN)
flexible with ferrule with plastic sleeve	0.75 mm² ... 16 mm² (LIN)
AWG	20 ... 6
Stripping length	10 mm (LIN)
Tightening torque	1.2 Nm ... 1.5 Nm
Drive form screw head	Slotted L

Product properties

Product type	Battery module
Product family	Battery module (device with battery)
Disposal	Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations.
Insulation characteristics
Protection class	III
Degree of pollution	2

Dimensions

Item dimensions
Width	199 mm
Height	197 mm
Depth	119 mm
Drill hole
Diameter	5 mm
Installation dimensions
Installation distance right/left	0 mm / 0 mm
Installation distance top/bottom	5 mm / 5 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (storage/transport)	-30 °C ... 65 °C
	-20 °C ... 35 °C (recommended)
Ambient temperature (charge)	-10 °C ... 55 °C (0 °C ... 55 °C, UPS V/C Level)
Ambient temperature (discharge)	-20 °C ... 60 °C
Maximum altitude	max. 2000 m
Max. permissible relative humidity (operation)	≤ 95 %
Shock	15g, 11 ms, half sine (IEC 60068-2-27)
Vibration (operation)	0,7g (DNV-GL / IEC 60068-2-6)

Ex data

Suited for EX-applications	no

Commercial data

Item number	1460923
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	CM24
Product key	CMUEL3
GTIN	4063151852061
Weight per piece (including packing)	5,078 g
Weight per piece (excluding packing)	4,608 g
Customs tariff number	85076000
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	500 V	41 A		- 6

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-25 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
