Current transformers for new installations

Our PACT current transformers for new installations offer a complete portfolio for converting alternating currents up to 4,000 A AC. PACT current transformers are available as bus-bar, window-type, and winding current transformers with a range of different transformation ratios, accuracy classes, and rated powers suitable for your current measurement tasks.

More information

118 Results

Page:

Sort by:

Relevance
A-Z
Z-A

Items per page

Go to Product Detail Page for item 2277077

PACT MCR-V2-3015- 60- 150-5A-1 - Current transformer

PACT MCR-V2-3015- 60- 150-5A-1 - Current transformer

2277077

Window-type current transformer, 150 A AC primary current; 5 A AC secondary current; accuracy class 1; 5 VA rated power

Go to Product Detail Page for item 2277763

PACT MCR-V1-21-44-125-5A-1 - Current transformer

PACT MCR-V1-21-44-125-5A-1 - Current transformer

2277763

Bus-bar current transformer, 125 A AC primary current; 5 A AC secondary current; accuracy class 1; 3.75 VA rated power

Go to Product Detail Page for item 1075968

CT-ES-30I-3010-60-150-5A-C05 - Current transformer

CT-ES-30I-3010-60-150-5A-C05 - Current transformer

1075968

Window-type current transformer, 150 A AC primary-side input current; 5 A AC secondary-side output current; accuracy class 0.5; 2.5 VA rated power

Go to Product Detail Page for item 2277682

PACT MCR-V2-4012- 70- 500-5A-1 - Current transformer

PACT MCR-V2-4012- 70- 500-5A-1 - Current transformer

2277682

Window-type current transformer, 500 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Go to Product Detail Page for item 2277695

PACT MCR-V2-4012- 70- 750-5A-1 - Current transformer

PACT MCR-V2-4012- 70- 750-5A-1 - Current transformer

2277695

Window-type current transformer, 750 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Go to Product Detail Page for item 1075959

CT-ES-30I-3010-60-300-5A-C05 - Current transformer

CT-ES-30I-3010-60-300-5A-C05 - Current transformer

1075959

Window-type current transformer, 300 A AC primary-side input current; 5 A AC secondary-side output current; accuracy class 0.5; 5 VA rated power

Go to Product Detail Page for item 2277187

PACT MCR-V2-5012- 85- 800-5A-1 - Current transformer

PACT MCR-V2-5012- 85- 800-5A-1 - Current transformer

2277187

Window-type current transformer, 800 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Go to Product Detail Page for item 2277116

PACT MCR-V2-4012- 70- 250-5A-1 - Current transformer

PACT MCR-V2-4012- 70- 250-5A-1 - Current transformer

2277116

Window-type current transformer, 250 A AC primary current; 5 A AC secondary current; accuracy class 1; 5 VA rated power

Go to Product Detail Page for item 2905885

PACT MCR-V2-6015-85-800-1A-1 - Current transformer

PACT MCR-V2-6015-85-800-1A-1 - Current transformer

2905885

Window-type current transformer, 800 A AC primary current; 1 A AC secondary current; accuracy class 1; 2.5 VA rated power

Go to Product Detail Page for item 2277789

PACT MCR-V1-21-44-300-5A-1 - Current transformer

PACT MCR-V1-21-44-300-5A-1 - Current transformer

2277789

Bus-bar current transformer, 300 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Page:

Items per page

Your advantages

Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltages
up to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm

Your advantages in detail

PACT current transformers: manual operation of the rotatable terminal cover

PACT current transformers with variable mounting options

PACT current transformer with icon for current peaks up to 120% of the rated current

Protection against damage to the current transformer

All terminal points are made accessible immediately by rotating the captive terminal cover through 90°. At the same time, the current transformer is short circuited to protect it against damage if conductors are disconnected from the secondary side during active operation. The proven screw-connection technology ensures that electrical conductors are connected safely.
The rotatable cover secured in the housing brings you even more advantages: on the one hand, it cannot be lost, and secondly, by turning it back to its original position you immediately receive visual confirmation that it is safe to touch.

Variable mounting options

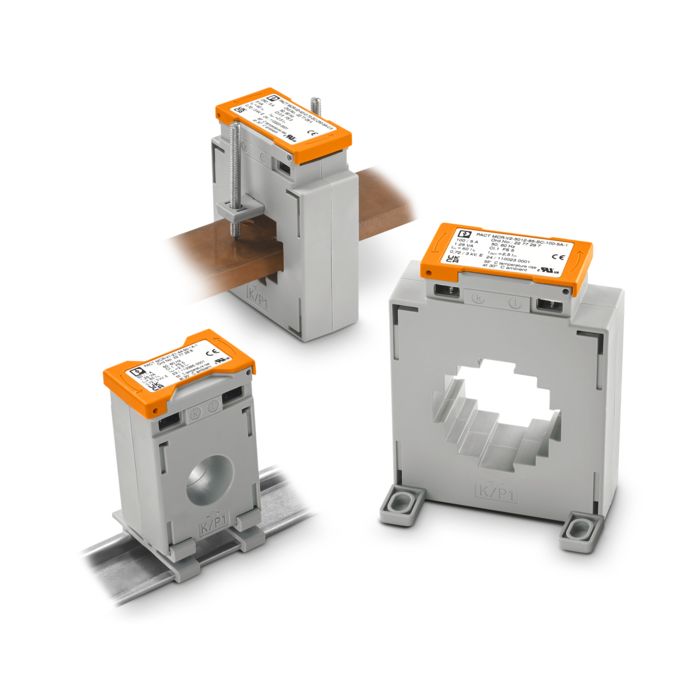

PACT current transformers come with various mounting options, depending on your requirements:

Typical installation of the current transformer directly onto the busbar with the included accessories
Current transformer screw connection on a mounting panel via the plug-on feet included
Mounting on DIN rails with snap-in adapters available as an option

Safe detection of current peaks

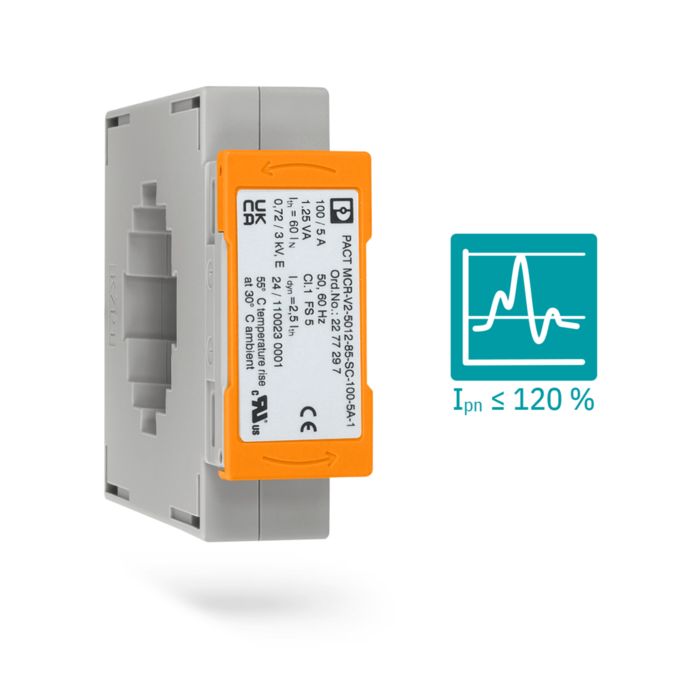

PACT current transformers enable you to measure larger current peaks safely without the risk of damage. This is because the PACT current transformers have been designed for a continuous nominal current of 120% of the primary nominal current strength. This means that for a rated current that is 1.2 times greater, a PACT current transformer with a specified rated power of 10 VA actually delivers 14.4 VA – and on a continual basis.

Increased electrical safety

The housing walls of PACT current transformers have a 14 mm overlap, thus offering better electrical safety than required by the standard. These overlaps significantly increase the air clearances and creepage distances and thereby prevent electrical sparkovers from the primary to the secondary side.
The rated insulation voltage of conventional 720 V transformers is just 416 V (L-N). PACT current transformers enable a maximum rated insulation voltage of up to 1,000 V (L-N).

	EN 61869 (Transformer standard)	PACT MCR-V...
Rated insulation voltage
Operating voltage	480 V (L-L)	277 V (L-N)
	720 V (L-L)	416 V (L-N)
	1,000 V (L-L)	577 V (L-N)
	-	1,000 V (L-N) PACT
Impulse withstand voltage for transformer testing
at 277 V (L-N)	3 kV	6 kV
at 1,000 V (L-N)	6 kV	12 kV PACT
