HC-D50-TFQ-76/O1PG21G
-
Housing
1416394

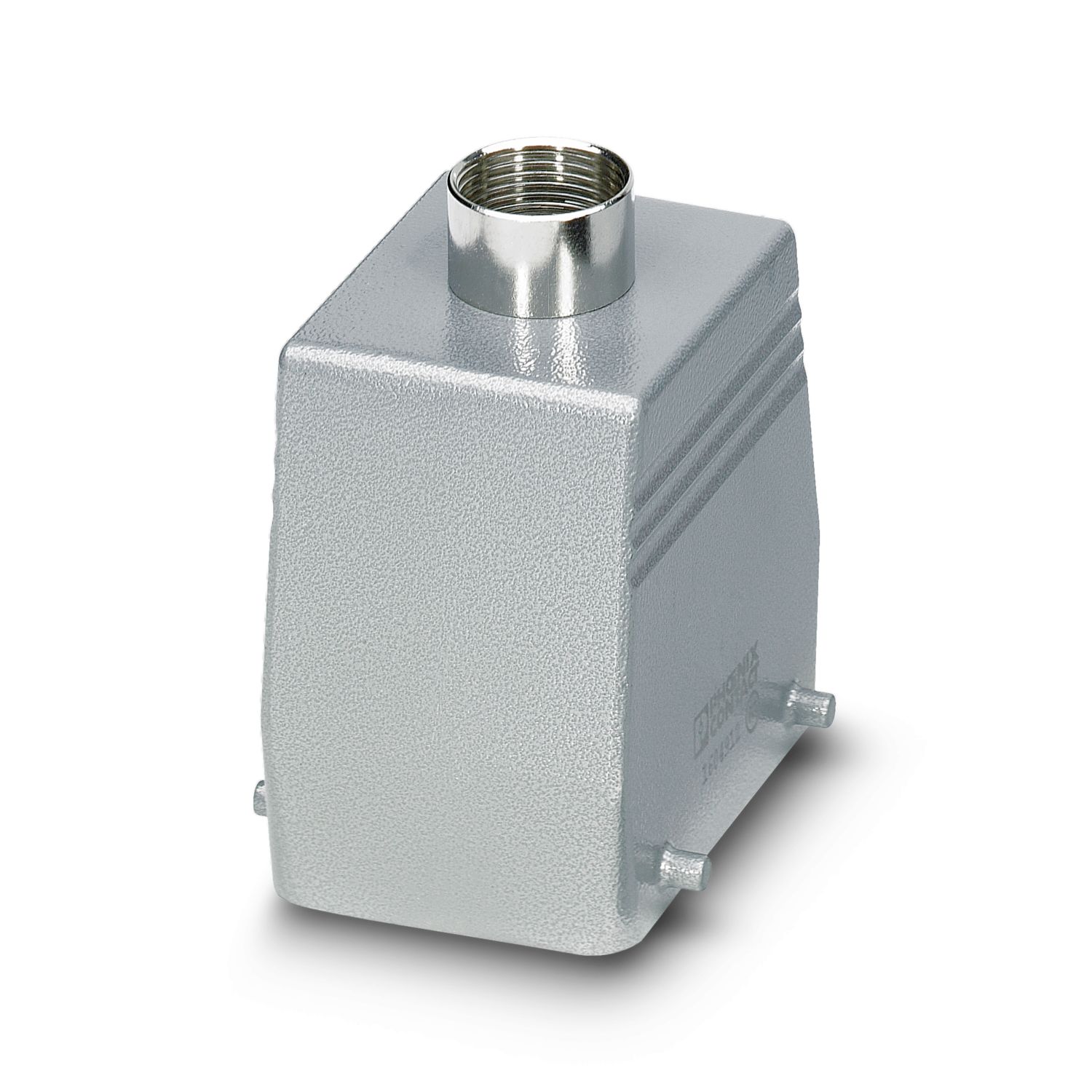

Sleeve housing D50, for double locking latch, material: Die-cast aluminum, cable outlets: 1, straight, 1x Pg21, height: 76 mm, cable gland: none, Standard
Product details
| General | For contact inserts HC-D25, A16/A32 |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | D50 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg21 |
| Cable outlet | straight |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 56 mm |
| Height | 76 mm |
| Length | 82 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x Pg21 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
