Contact insert - HC-B 24-I-DT-M
1648319

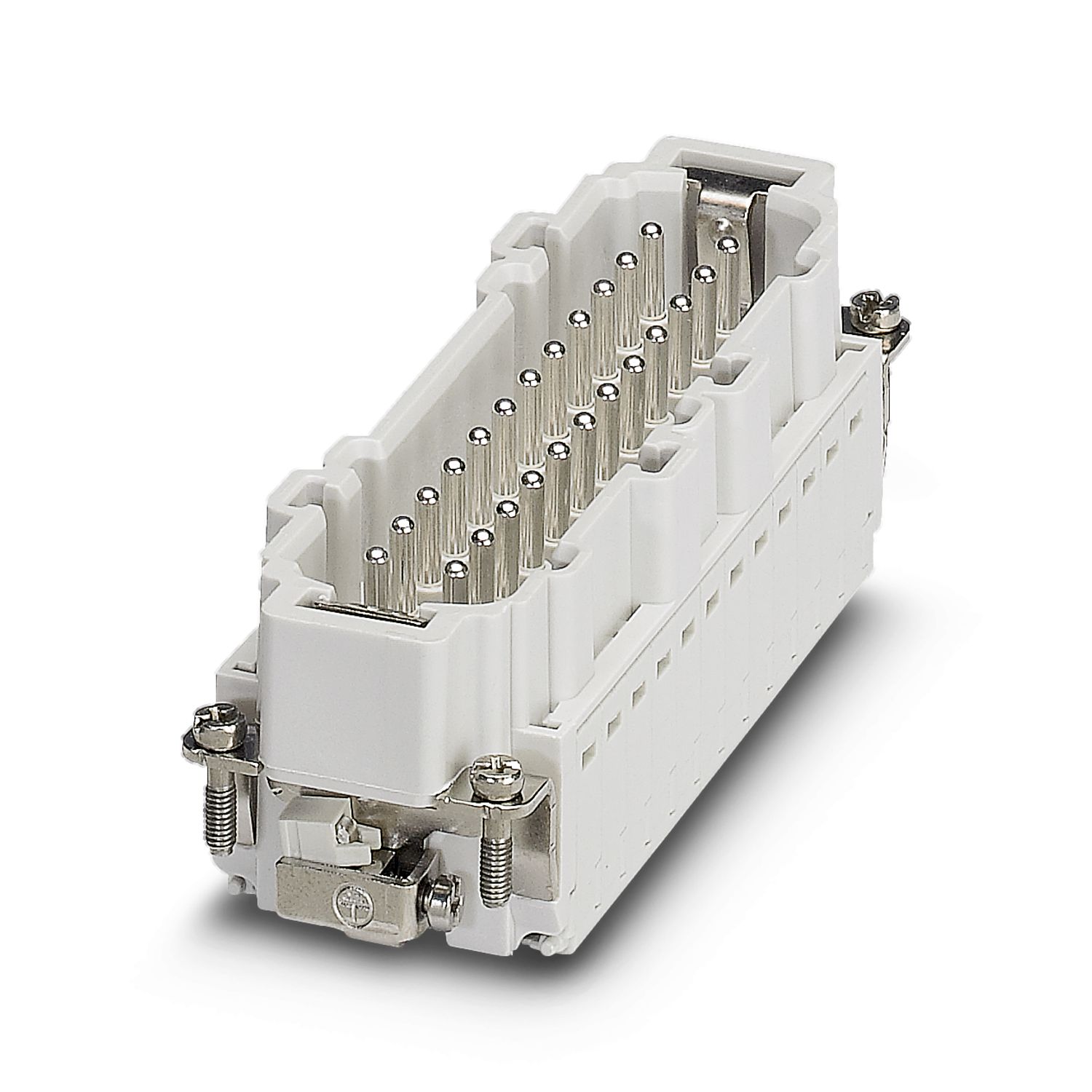

HEAVYCON male insert, B24 series, 24-pos., push-in connection


Product Details




General For HEAVYCON ADVANCE and HEAVYCON housing of B24 type. Coding using the CP-HC (1686478) coding profile. HC-B6.../ HC-B10... for two coding profiles. HC-B16.../ HC-B24... for 4 coding profiles. Connectors may be operated only when there is no load/voltage.

Type B24
B48
Product type Contact insert with a fixed no. of positions
Number of positions 24
Connection profile 24+PE
Series HC-B
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Connection technology
Connection technology Push-in connection
Conductor connection
Conductor cross section 0.5 mm² ... 2.5 mm²
Connection cross section AWG 20 ... 14
Stripping length of the individual wire 10 mm (13 mm if ferrules are used)

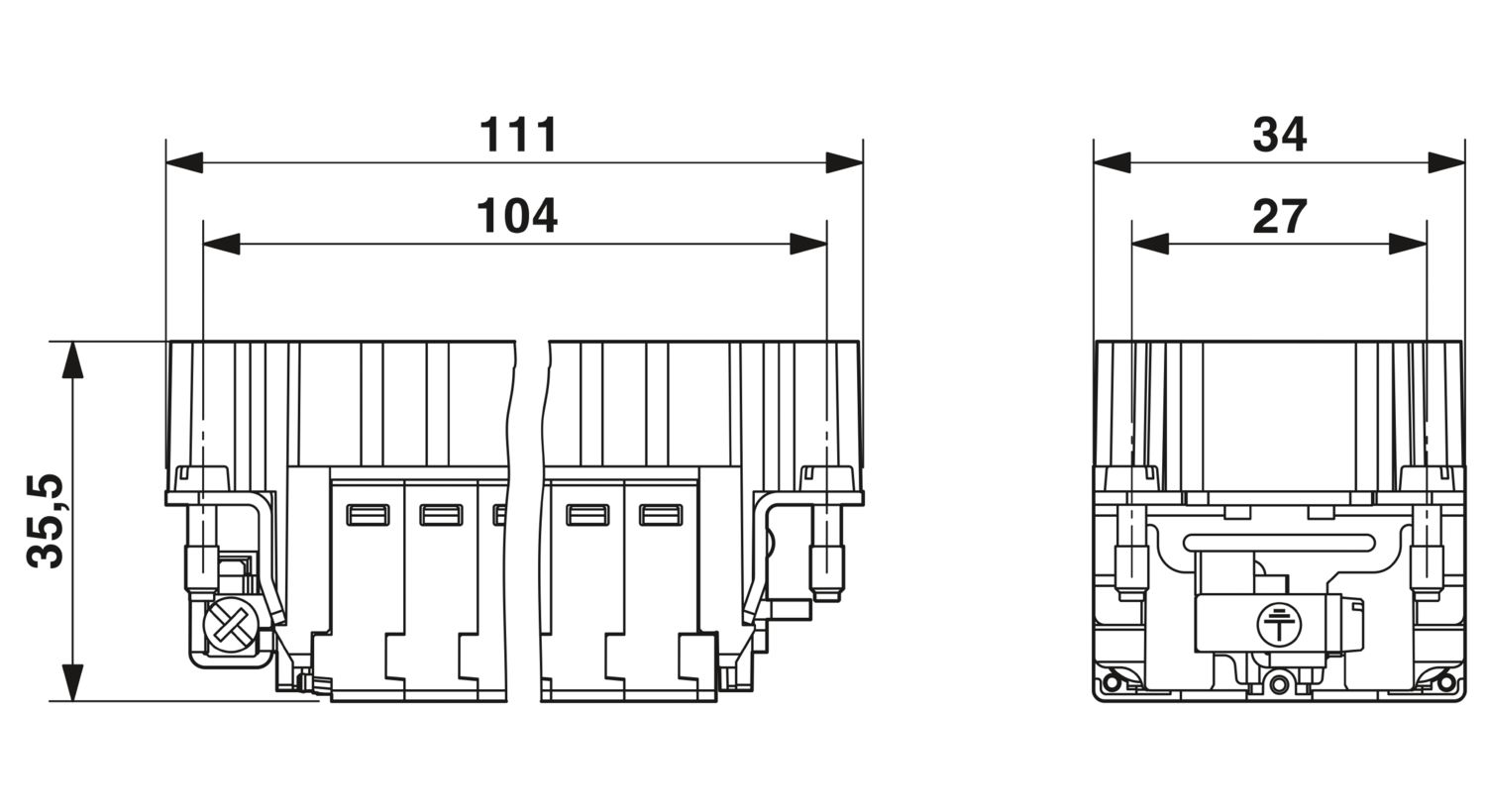

Dimensional drawing
Height 35.5 mm
Length 111 mm
Drill hole distance, horizontal 104 mm

Rated voltage (III/3) 500 V
Rated surge voltage 6 kV
Rated current 16 A

Flammability rating according to UL 94 V0
Contact material Copper alloy
Contact surface material Ag
Contact carrier material PA

Insertion/withdrawal cycles ≥ 500

Cable structure
Stripping length of the individual wire 10 mm (13 mm if ferrules are used)

Assembly instructions 1) For single-stranded litz wires. For stranded wires use ferrules: 0.5 mm²... 2.5 mm² with / without insulating collar, length: 10 mm.
2) SZF0-0.4x2.5 screwdriver (similar to DIN 5264).
For housing type B24. Connectors may only be operated when there is no load/the power is switched off. Coding also using the CP-HC coding profile (1686478). HC-B6../HC-B10.. for 2 coding profiles. HC-B16../HC-B24.. for 4 coding profiles. Mounting/removal of 0.5 - 0.75 mm² wires using a screwdriver.

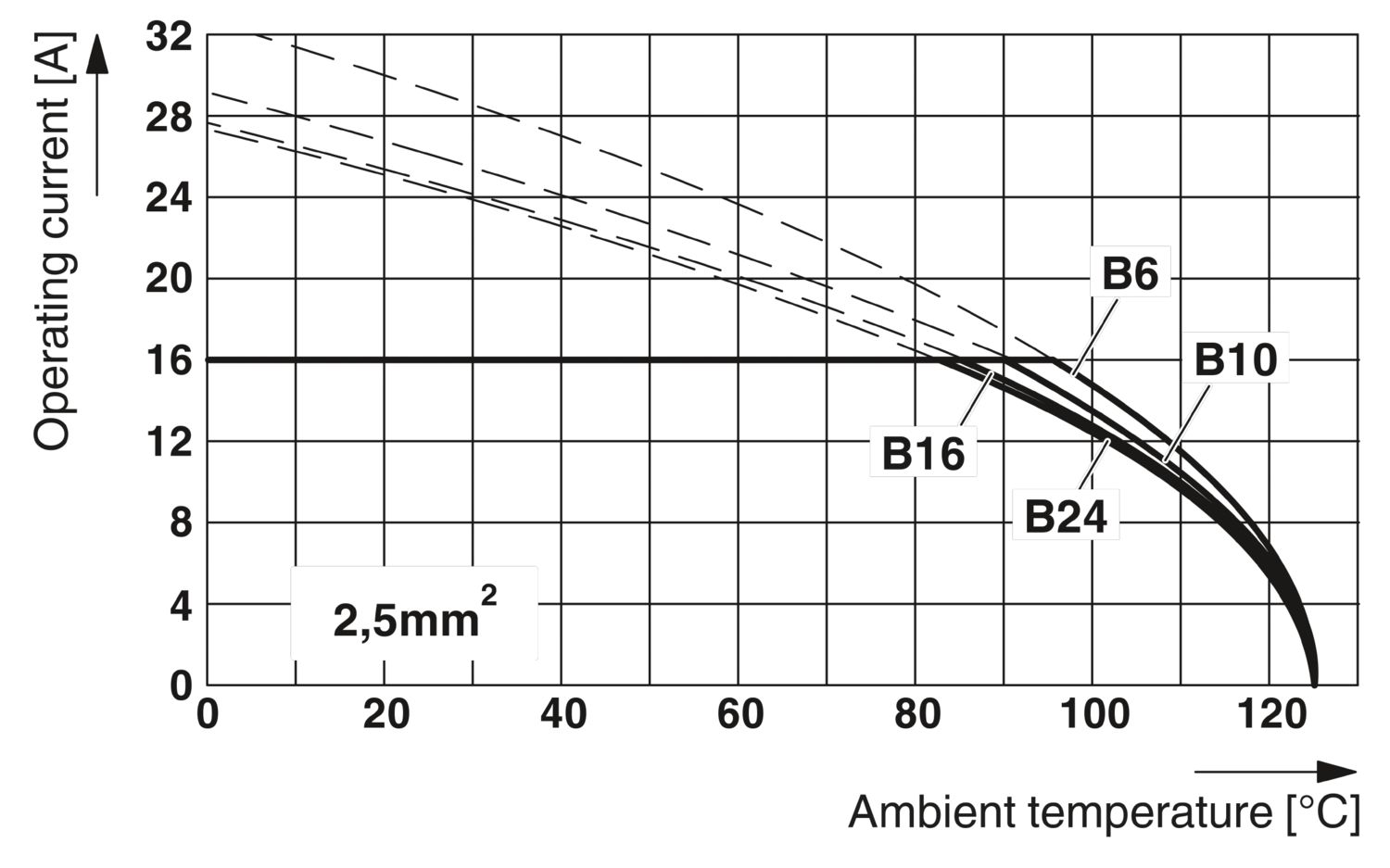

Ambient temperature (operation) -40 °C ... 125 °C (including heating up of contacts)

Constructional and testing regulations DIN EN 61984
DIN EN 60664
IEC 60352
Tests DIN EN 61984
DIN EN 60664
IEC 60352

Item number 1648319
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BF7ABC
Product Key BF7ABC
Catalog Page Page 521 (PC-2011)
GTIN 4046356092449
Weight per Piece (including packing) 112.1 g
Weight per Piece (excluding packing) 109 g
Customs tariff number 85366990
Country of origin CN


ECLASS

ECLASS-9.0 27440205
ECLASS-11.0 27440205

China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
