Contact insert - HC-B 24-ESTZ-48

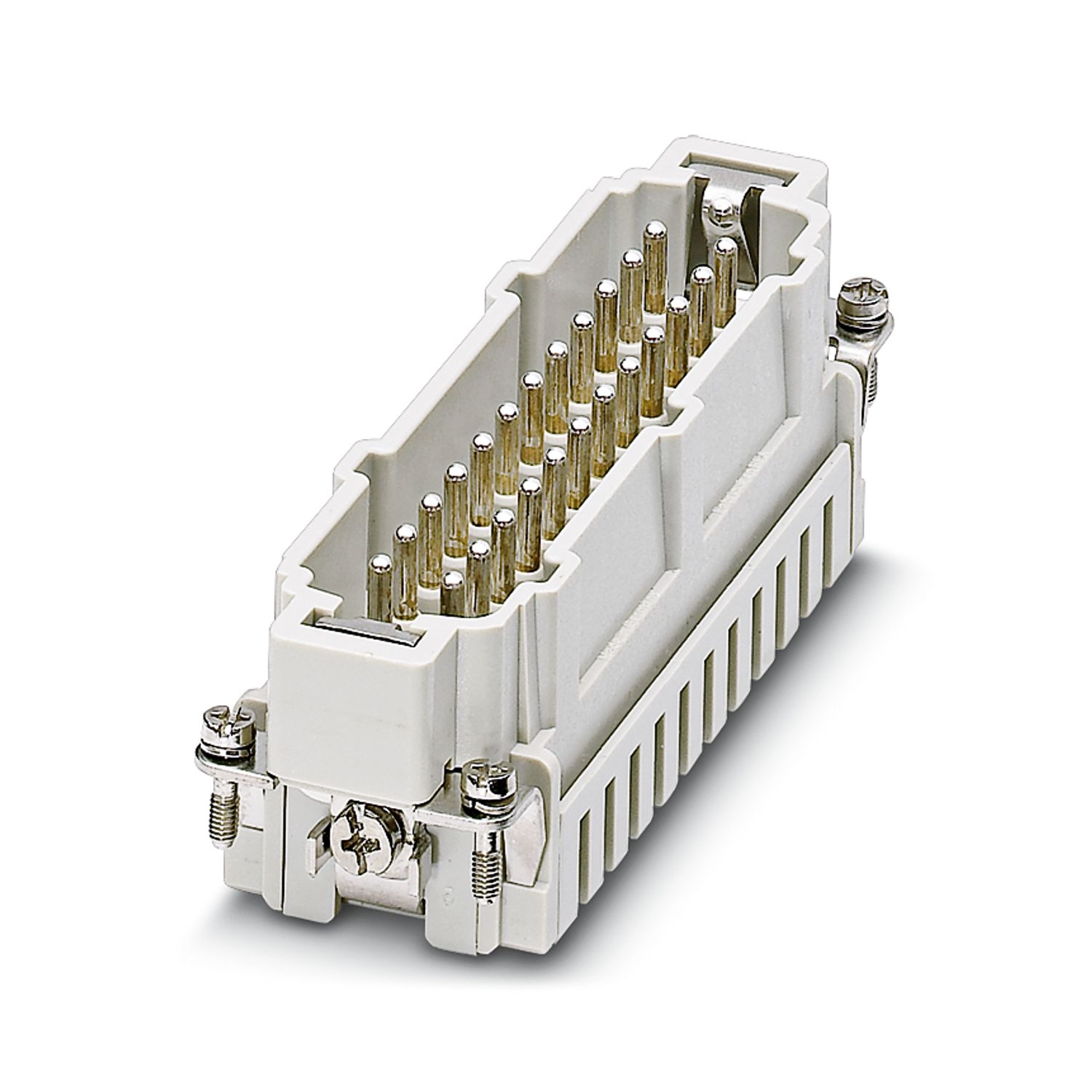

Male insert

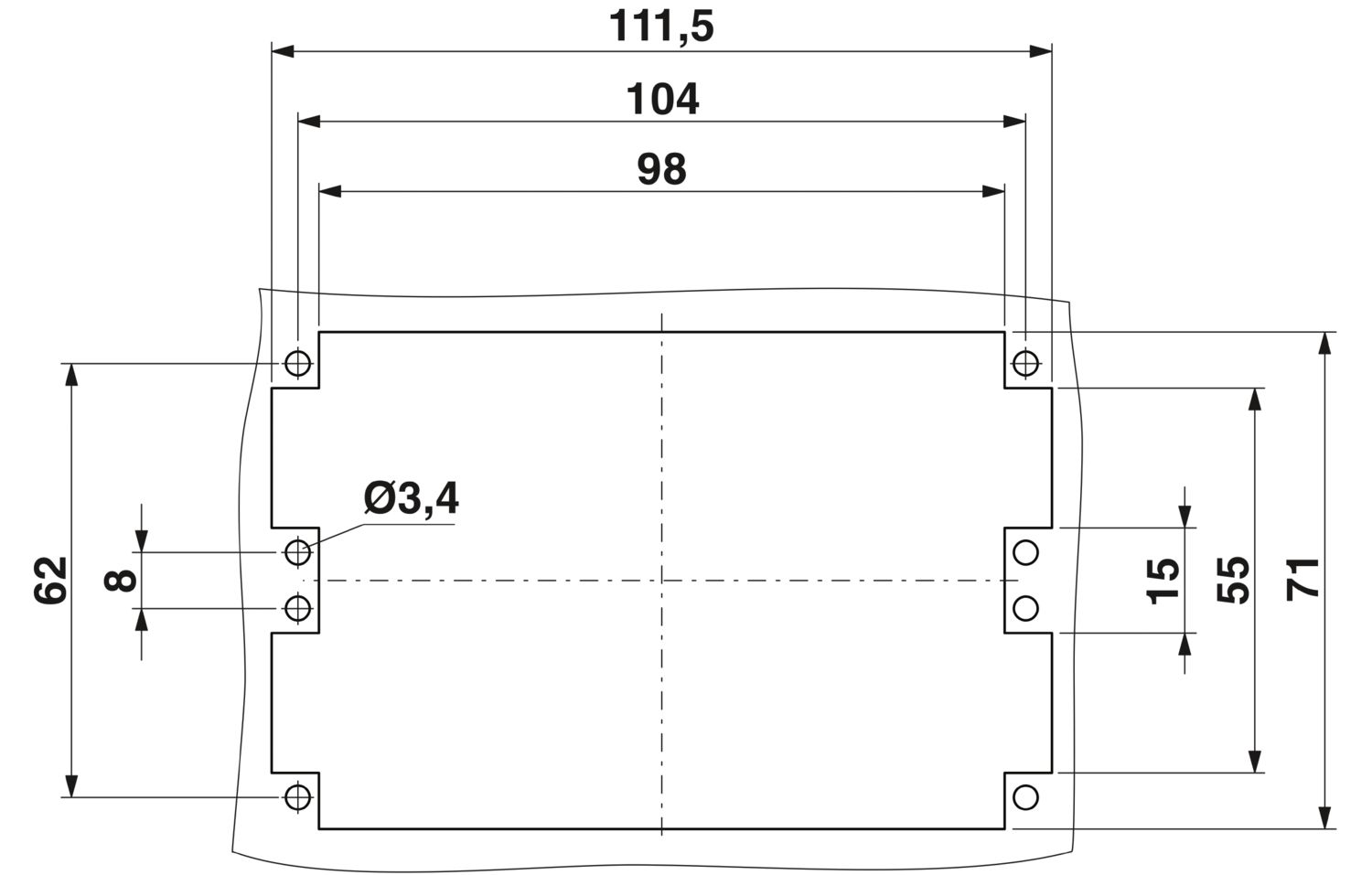

Mounting cutout
Connector pin assignment, connection side

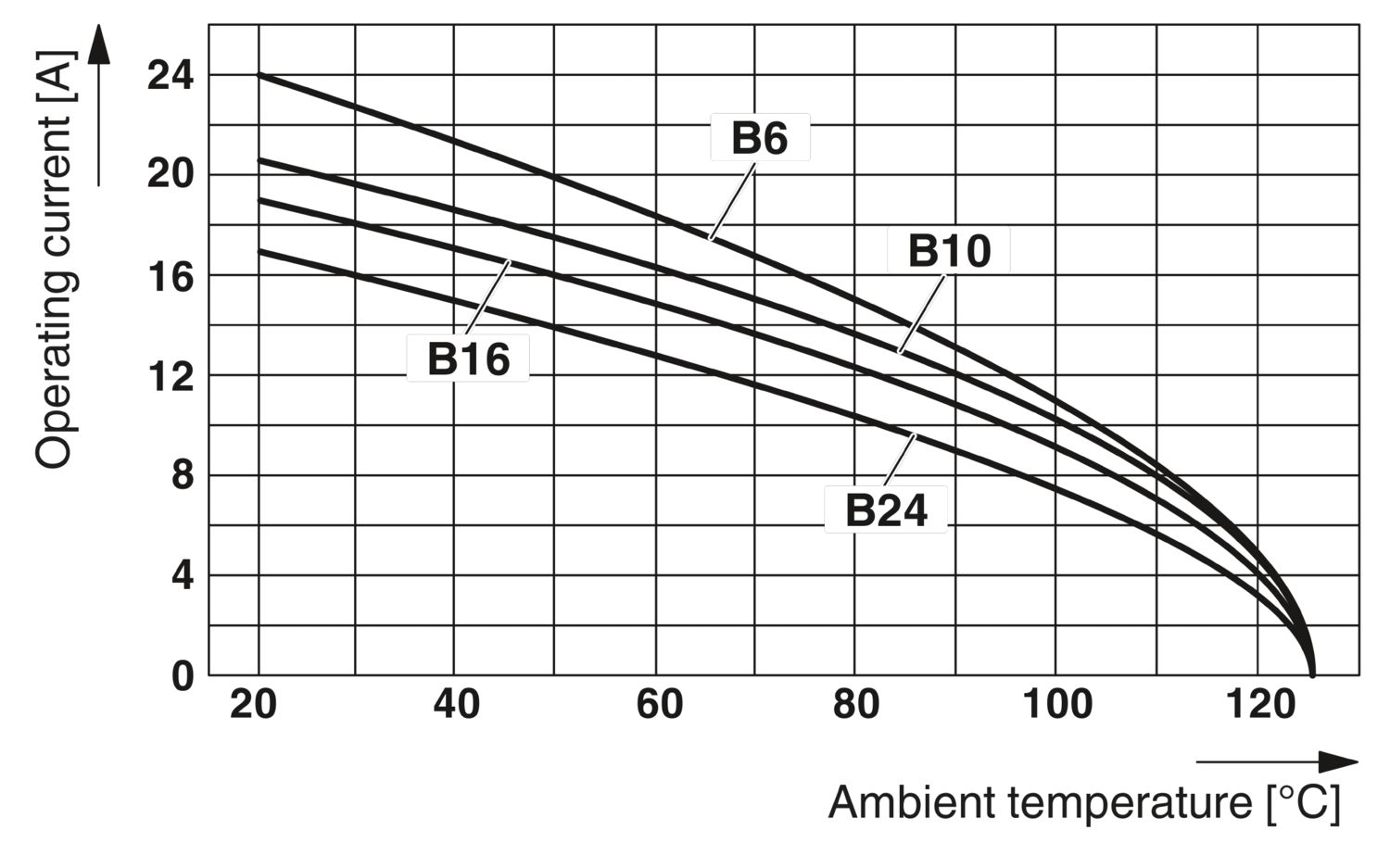

The figure shows the derating diagram of various series B contact inserts (B6 to B24), conductor cross section 1.5 mm
2

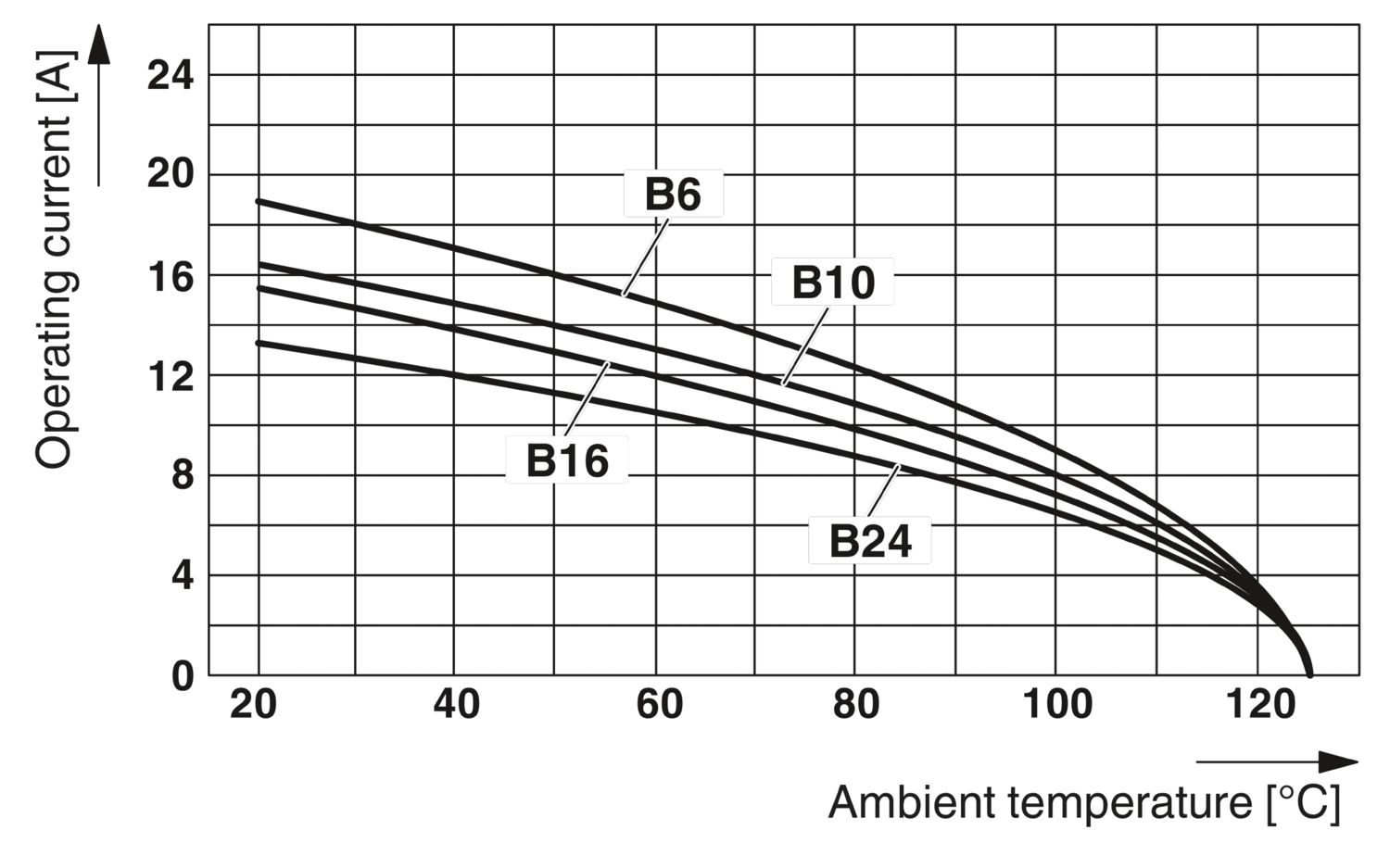

The figure shows the derating diagram of various series B contact inserts (B6 to B24), conductor cross section 2.5 mm
2
Contact insert - HC-B 24-ESTZ-48
1647475
HEAVYCON male insert, B24 series, 24-pos., spring-cage connection, numbering 25 - 48
Product Details
Technical Data
Notes
General
For HEAVYCON-ADVANCE housing of B24 type and HEAVYCON housing of B24/B48 type
Product properties
Type
B24
B48
Product type
Contact insert with a fixed no. of positions
Number of positions
24
Connection profile
24+PE
Series
HC-B
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Connection data
Connection technology
Connection technology
Spring-cage connection
Conductor connection
Conductor cross section
0.14 mm² ... 2.5 mm²
Connection cross section AWG
26 ... 14
Stripping length of the individual wire
8 mm ±1 mm
Dimensions

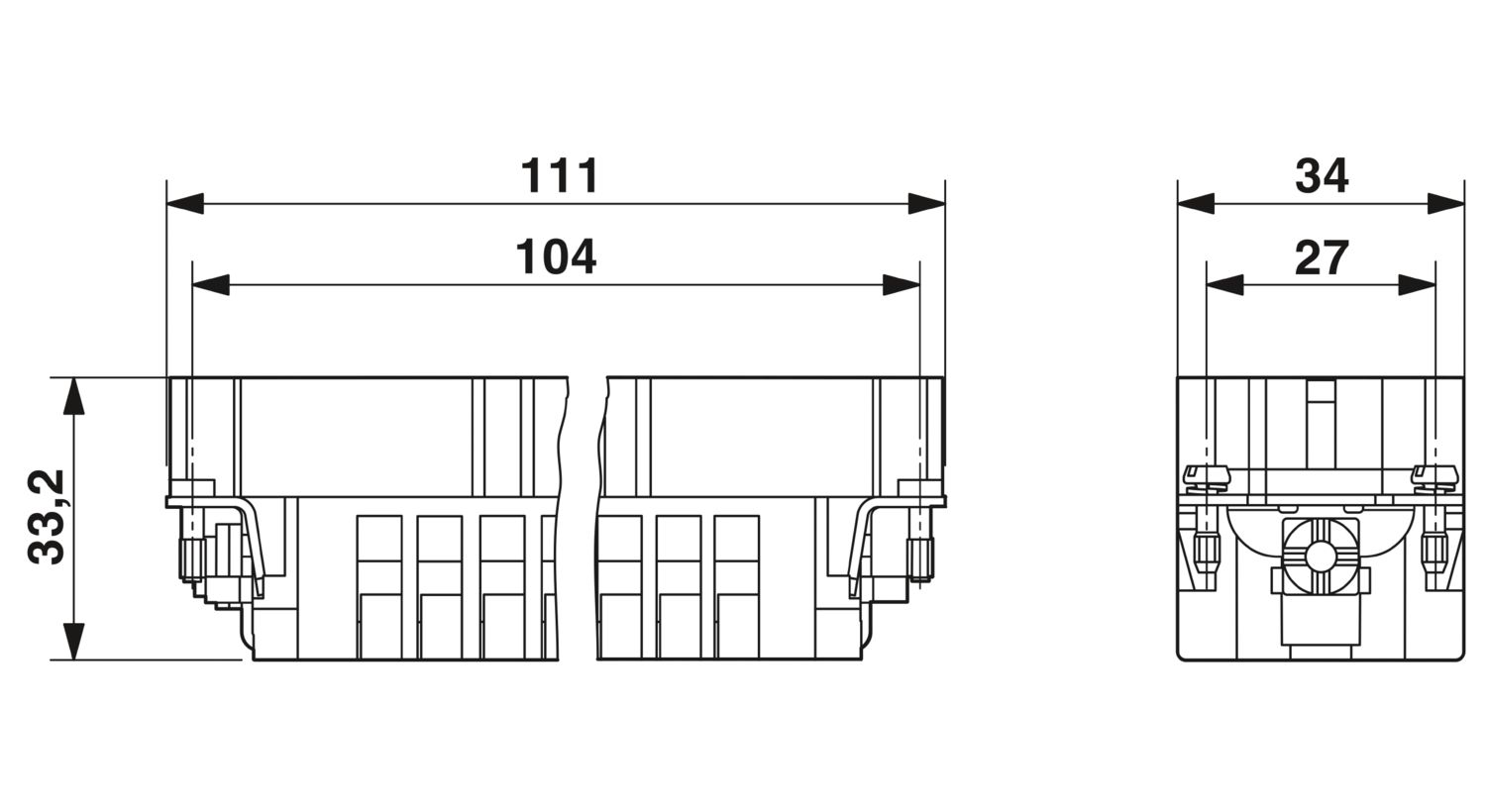

Dimensional drawing
Width
34 mm
Height
35.5 mm
Length
111 mm
Electrical properties
Rated voltage (III/3)
500 V
Rated surge voltage
6 kV
Rated current
16 A
Material specifications
Flammability rating according to UL 94
V0
Contact material
Copper alloy
Contact surface material
Ag
Contact carrier material
PC
Connector
Insertion/withdrawal cycles
≥ 500
Cable / line
Cable structure
Stripping length of the individual wire
8 mm ±1 mm
Mounting
Assembly instructions
For housings of type B16/B32. Connectors may only be actuated when there is no load/voltage.
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C (including heating up of contacts)
Commercial Data
Item number
1647475
Packing unit
1 pc
Minimum order quantity
1 pc
Sales Key
BF7ABC
Product Key
BF7ABC
Catalog Page
Page 519 (PC-2011)
GTIN
4017918969530
Weight per Piece (including packing)
112 g
Weight per Piece (excluding packing)
112 g
Customs tariff number
85369010
Country of origin
DE
Classifications
ECLASS
ECLASS-9.0
27440205
ECLASS-11.0
27440205
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Compatible Products
Accessories
Screw
HC-B-PES - 1604997
PE multiplier
HC-B-3PE - 1644326
Coding element
HC-CBU - 1676860
Coding bolt
HC-CB - 1772722
Strain relief clamp
HC-B-ZG - 1685327
Strain relief clamp
HC-B-ZS - 1685330
Coding element
HC-CST - 1676857
DIN rail mounting frame
HC-SMR-B24 - 1687985
DIN rail mounting frame
HC-SMP 150-B24-AMQ - 1660944
Docking frames
HC-B 24-ANDOCK - 1586141
