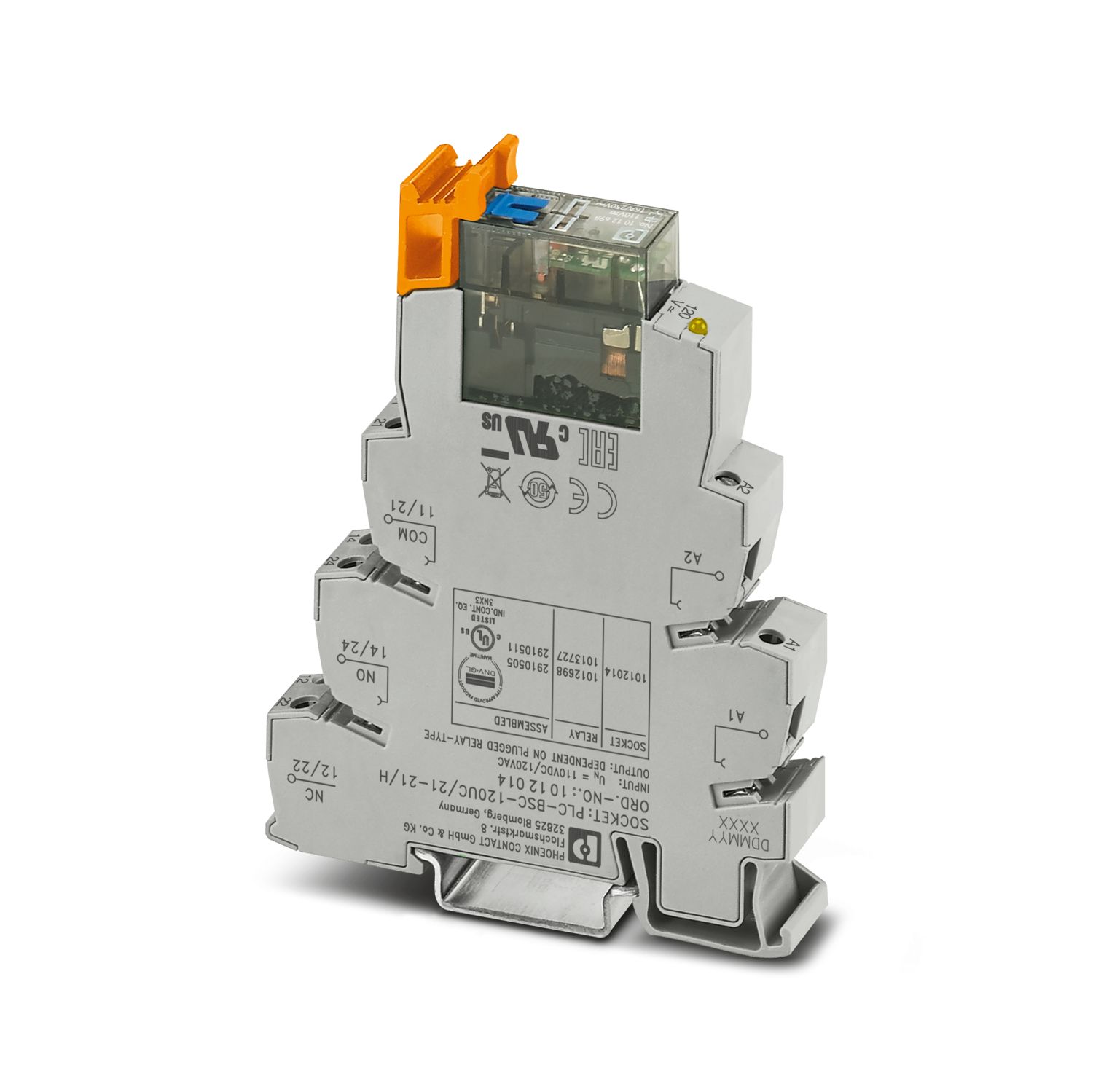

PLC-RSC-120UC/21-21/MS - Relay module - 2910505

Product details

Technical data

Product properties

Product type	Relay Module
Product family	PLC-INTERFACE
Application	Palm switch
Operating mode	100% operating factor
Mechanical service life	5x 10⁶cycles
Insulation characteristics: Standards/regulations
Insulation	Safe isolation, reinforced insulation
Overvoltage category	III
Pollution degree	2
Data management status
Date of last data management	20.03.2025

Electrical properties

Maximum power dissipation for nominal condition	0.6 W
Test voltage (Winding/contact)	4 kV_rms (50 Hz, 1 min., winding/contact)
Test voltage (Changeover contact/changeover contact)	2.5 kV_rms (50 Hz, 1 min., changeover contact/changeover contact)
Standards/regulations
Rated insulation voltage	250 V AC
Rated surge voltage	6 kV

Input data

Coil side
Nominal input voltage U_N	120 V AC
	110 V DC
Input voltage range	96 V AC ... 168 V AC (20 °C)
	93.5 V DC ... 154 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)	110 V DC
Drive and function	monostable
Drive (polarity)	polarized
Typical input current at U_N	5 mA
Typical response time	6 ms (110 V DC)
	3 ms ... 15 ms (120 V AC)
Typical release time	10 ms (110 V DC)
Typical release time range	3 ms ... 15 ms (120 V AC)
Protective circuit	Bridge rectifier; Bridge rectifier
Operating voltage display	Yellow LED

Output data

Switching
Contact switching type	2 changeover contacts
Type of switch contact	Single contact
Contact material	AgNi
Maximum switching voltage	250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage	12 V (10 mA)
Limiting continuous current	6 A
Maximum inrush current	12 A (20 ms)
Min. switching current	10 mA (12 V)
Interrupting rating (ohmic load) max.	192 W (24 V DC)
		62 W (48 V DC)
		42 W (60 V DC)
		55 W (110 V DC)
		66 W (220 V DC)
		2000 VA (250 V AC)
Switching capacity	1 A (24 V (DC13))
Switching capacity		1.5 A (230 V, AC15)

Connection data

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross-section rigid	0.14 mm² ... 2.5 mm²
Conductor cross-section flexible	0.14 mm² ... 2.5 mm²
	0.2 mm² ... 2.5 mm² (Single ferrule)
	2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross-section AWG	26 ... 14
Tightening torque	0.6 Nm ... 0.8 Nm

Dimensions

Width	14 mm
Height	80 mm
Depth	104 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94 (Housing)	V0 (Housing)

Environmental and real-life conditions

Ambient conditions
Degree of protection (Relay)	RT II (Relay)
Degree of protection (Relay base)	IP20 (Relay base)
Degree of protection (Installation location)	≥ IP54 (Installation location)
Ambient temperature (operation)	-20 °C ... 55 °C
Ambient temperature (storage/transport)	-20 °C ... 85 °C
Altitude	≤ 2000 m

Approvals

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
UL, USA
Identification	UL 508
Identification		UL 508 Recognized
UL, USA/Canada
Identification	UL 508
Identification		UL 508 Recognized
Shipbuilding approval
Certificate	TAE0000196
Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
Identification		EN 60068-2-60
Shipbuilding data
Temperature	D
Humidity	A
Vibration	B/C
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board

EMC data

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive

Standards and regulations

Standards/regulations
Standards/regulations	EN 50178

Mounting

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2910505
Packing unit	10 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	DK623C
GTIN	4055626486604
Weight per piece (including packing)	80.09 g
Weight per piece (excluding packing)	80 g
Customs tariff number	85364900
Country of origin	DE

Classifications

Approvals

Environmental product compliance

ECLASS-13.0	27371601
ECLASS-15.0	27371601

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
REACH candidate substance (CAS No.)		Lead (CAS: 7439-92-1)
SCIP	31501fdf-8845-4d9a-a211-76f6a82a3505
