The TC ROUTER 4000... cellular routers are the successor to: TC ROUTER 3000... (TC ROUTER 3002T-4G, 2702528 and TC ROUTER 3002T-3G, 2702529), TC ROUTER 2000... (TC ROUTER 2002T-4G, 2702530 and TC ROUTER 2002T-3G, 2702531) In addition to the proven 4G-LTE cellular connection, the routers also feature an integrated WLAN interface or a serial RS-232/485 interface, depending on the version. Connection to the internet can be established via the cellular interface, via a wired WAN port, or via an existing WLAN network.
TC ROUTER 4202T-4G EU WLAN
-
Router
1234354
Industrial 4G LTE router, EU device, 3G (UMTS/HSPA) and 2G (GPRS/EDGE) fallback, WLAN access point 802.11a/b/g/n, 150 Mbps, 2.4 GHz + 5 GHz, 2-port switch, firewall, NAT, IPsec and OpenVPN support, 2 DI, 1 DO, RS-232/RS-485
Free download available.
Downloads
Product details
Note on application | |
Note on application | Only for industrial use |
Utilization restriction | |
EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Cellular router |
Application | Ethernet |
RS-232 | |
RS-485 | |
MTTF | 384 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
180 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
64 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
Electrical isolation | VCC // LTE // Ethernet // PE |
Maximum power dissipation for nominal condition | 4.32 W |
Mains type | Cellular communication |
Supply | |
Supply voltage range | 10 V DC ... 30 V DC (Via pluggable Push-in terminal block) |
Typical current consumption | < 180 mA (24 V DC) |
< 500 mA (10 V DC) | |
≤ 3 mA (With activated energy-saving mode) | |
Max. current consumption | 1.5 A |
Function | |
Management | Web-based management |
SNMPv1/v2/v3 | |
SSHv2 | |
Telnet | |
TOM (TC ROUTER Online Manager, management software from Phoenix Contact) | |
Data storage system | Micro SDHC card |

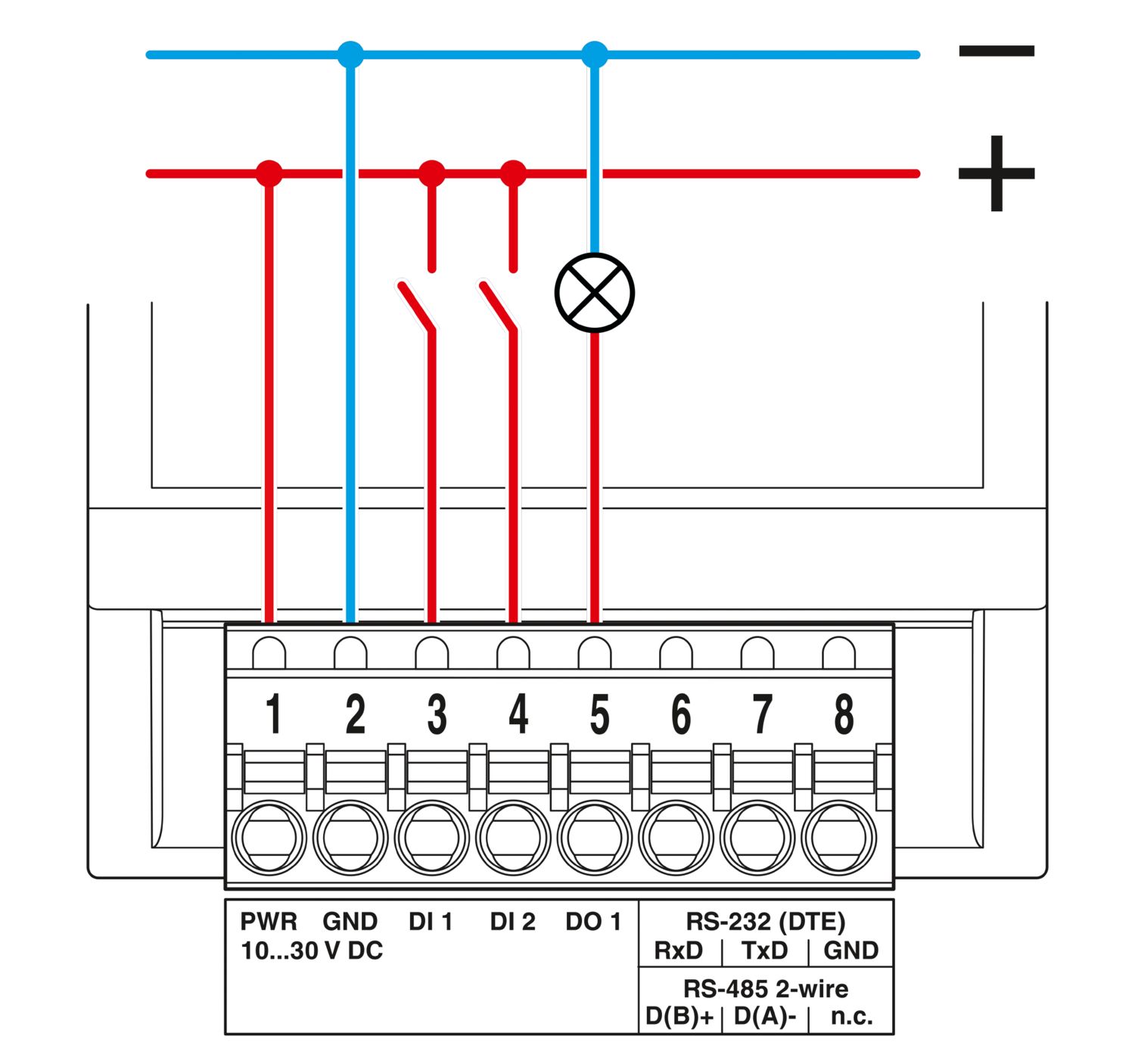

Digital | |
Description of the input | Digital input |
Number of inputs | 2 |
Voltage input signal | 10 V DC ... 30 V DC |
Switching level "0" signal | < 8 V DC |
Switching level "1" signal | 10 V DC ... 30 V DC |
Signal | |
Output name | Digital output |
Number of outputs | 1 |
Voltage output signal | 10 V DC ... 30 V DC (depending on the operating voltage) |
Current output signal | ≤ 50 mA (Not short-circuit proof) |
Supply | |
Connection method | Push-in spring connection |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
Single conductor/terminal point, rigid | 0.14 mm² ... 1.5 mm² |
Single-wire/terminal point, flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section, flexible [AWG] | 26 ... 16 |
Stripping length | 9.00 mm |
Web server | yes |
Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 | |
Serial transmission speed | 10/100 Mbps, auto negotiation |
Connection method | RJ45 jack, shielded |
No. of channels | 2 |
Transmission length | 100 m (shielded twisted pair) |
Protocols supported | TCP/IP, UDP/IP, HTTP(S), (S)FTP, TFTP, SCEP, RADIUS |
VPN: IPsec, OpenVPN, GRE, L2TP, PPTP | |
Network Discovery: LLDP, CDP, FDP, SONMP, EDP, IRDP | |
Auxiliary protocols | ARP, DHCP, DNS, DynDNS, PING (ICMP), SMTP(S), NTP, SSL/TLS, STARTTLS, SMS |
Data: RS-232 interface in accordance with EIA-232 | |
Serial transmission speed | ≤ 1000 kbps |
Connection method | Push-in spring connection |
Transmission length | 15 m |
Data: RS-485 interface in accordance with EIA-485 | |
Serial transmission speed | ≤ 1000 kbps |
Connection method | Push-in spring connection |
Termination resistor | 120 Ω (can be set via software) |
Wireless | |
Interface description | GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD) |
Frequency range | 800 MHz (LTE B20) |
850 MHz (LTE B5) | |
900 MHz (LTE B8) | |
1800 MHz (LTE B3) | |
2100 MHz (LTE B1) | |
2600 MHz (LTE B7) | |
850 MHz (UMTS/HSPA B5) | |
900 MHz (UMTS/HSPA B8) | |
1900 MHz (UMTS/HSPA B2) | |
2100 MHz (UMTS/HSPA B1) | |
850 MHz (2 W (EGSM)) | |
900 MHz (2 W (EGSM)) | |
1800 MHz (1 W (EGSM)) | |
1900 MHz (1 W (EGSM)) | |
Data rate | ≤ 150 Mbps (LTE, DL) |
≤ 50 Mbps (LTE, UL) | |
Number | 2 |
Connection method | SMA (female) |
Antenna | 50 Ω impedance SMA antenna socket |
SIM Interface | Micro SIM (3FF) |
eSIM (several profiles) | |
GPRS | Class 12, Class B |
CS1 ... CS4 | |
EDGE | Multislot Class 12 |
UMTS | HSPA 3GPP R8 |
LTE | CAT4 |
Country support | Europe |
Wireless | |
Interface description | WLAN in accordance with IEEE 802.11 a/b/g/n |
Wireless modules that can be connected | 10 |
Operating mode | Access point (maximum of 10 clients) |
Client | |
Dual mode | |
Mesh | |
Frequency | 5 GHz |
2.4 GHz | |
Data rate | 11 Mbps (2.4 GHz, 20 MHz, /b) |
54 Mbps (2.4 GHz, 20 MHz, /g) | |
144 Mbps (2.4 GHz, 20 MHz, /n) | |
54 Mbps (5 GHz, 20 MHz, /a) | |
150 Mbps (5 GHz, 40 MHz, /n) | |
Number | 2 |
Connection method | RSMA (female) |
Security | WPA, WPA2 (TKIP, CCMP, PSK, RADIUS) |
Dimensional drawing |
|
Width | 45 mm |
Height | 130 mm |
Depth | 130 mm |
Color (Upper housing part) | light gray (RAL 7035) |
Material (Housing) | Polycarbonate |
Ambient conditions | |
Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
CE | |
Certificate | CE-compliant |
Wireless approval, Europe | |
Note | RED 2014/53/EU |
Wireless approval USA, FCC | |
Certificate | Z64-WL18DBMOD |
Note | FCC directive, part 15 |
Electromagnetic compatibility | Conformance with RED Directive 2014/53/EU |
Noise immunity | EN 61000-6-2 |
Electrostatic discharge | |
Standards/regulations | EN 61000-4-2 |
Electrostatic discharge | |
Contact discharge | ± 6 kV (Test Level 3) |
Discharge in air | ± 8 kV (Test Level 3) |
Comments | Criterion B |
Electromagnetic HF field | |
Standards/regulations | EN 61000-4-3 |
Electromagnetic HF field | |
Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
Field intensity | 10 V/m |
Comments | Criterion A |
Fast transients (burst) | |
Standards/regulations | EN 61000-4-4 |
Fast transients (burst) | |
Input | ± 2 kV (Test Level 3) |
Signal | ± 2 kV (Ethernet) |
Comments | Criterion B |
Surge current load (surge) | |
Standards/regulations | EN 61000-4-5 |
Surge current load (surge) | |
Input | ± 0.5 kV (symmetrical) |
± 1 kV (asymmetrical) | |
Signal | ± 1 kV (Data line, asymmetrical) |
Comments | Criterion B |
Conducted interference | |
Standards/regulations | EN 61000-4-6 |
Conducted interference | |
Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A |
Voltage | 10 V |
Emitted interference | |
Standards/regulations | EN 61000-6-4 |
Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential |
Criteria | |
Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Mounting type | DIN rail mounting |
Item number | 1234354 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Product key | DNC422 |
GTIN | 4063151338534 |
Weight per piece (including packing) | 353 g |
Weight per piece (excluding packing) | 346 g |
Customs tariff number | 85176200 |
Country of origin | DE |
ECLASS
ECLASS-13.0 | 19170502 |
ETIM
ETIM 9.0 | EC001478 |
UNSPSC
UNSPSC 21.0 | 43222600 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Compatible products
-
-
FK-MCP 1,5/ 8-ST-3,81 GY7035 - PCB connector 1713311
-
ANT-OMNI-0671-01 - Antenna 1396316
-
ANT-OMNI-0671-02 - Antenna 1396318
-
ANT-OMNI-0671-03 - Antenna 1565400
-
ANT-OMNI-2459-02 - Antenna 2701408
-
RAD-ISM-2459-ANT-FOOD-6-0-N - Antenna 2702898
-
NBC-COX-CNM/0.5-S/COX-CKM - Coaxial cable 1340139
-
NBC-COX-CNM/1.0-M/COX-CKM - Coaxial cable 1340143
-
NBC-COX-CNM/3.0-M/COX-CKM - Coaxial cable 1340144
-
NBC-COX-CNM/5.0-M/COX-CKM - Coaxial cable 1340147
-
RAD-PIG-EF316-N-RSMA - Antenna cable 2701402
-
RAD-PIG-RSMA/N-0.5 - Antenna cable 2903263
-
RAD-PIG-RSMA/N-1 - Antenna cable 2903264
-
RAD-PIG-RSMA/N-2 - Antenna cable 2903265
-
RAD-PIG-RSMA/N-3 - Antenna cable 2903266
-
RAD-PIG-RSMA/N-5 - Antenna cable 2702140
-
NBC-COX-CNM/3.0-L/COX-CNM - Coaxial cable 1340123
-
NBC-COX-CNM/5.0-L/COX-CNM - Coaxial cable 1340124
-
NBC-COX-CNM/10.0-L/COX-CNM - Coaxial cable 1340125
-
NBC-COX-CNM/15.0-L/COX-CNM - Coaxial cable 1340126
-
NBC-COX-CNM/30.0-L/COX-CNM - Coaxial cable 1340127
-
CN-UB-70DC-6-BB - Surge protection device 2803166
-
RAD-ADP-N/F-N/F - Adapter 2867843
-
RAD-TAPE-SV-19-3 - Weather protection tape 2903182
-
FL DIN-RAIL ADAPTER 45 - Mounting panel 1456045
-
FL PANEL ADAPTER 45 - Mounting panel 1456055
-
FL DIN RA - DIN rail adapter 2891053
-
FL MICRO SD FLASH - Program/configuration memory 1129482
Your advantages
Industrial 4G cellular router (LTE)
Fallback to 3G (UMTS/HSPA) and 2G (GPRS/EDGE)
Virtual dedicated line to connect networks via cellular network
IPsec and OpenVPN
Configuration via web-based management or microSD card
Two local Ethernet connections
Switchable energy-saving mode
Integrated logbook
Extended temperature range of -40 °C … +70 °C
Integrated WLAN access point
Micro SIM and eSIM for maximum network availability
